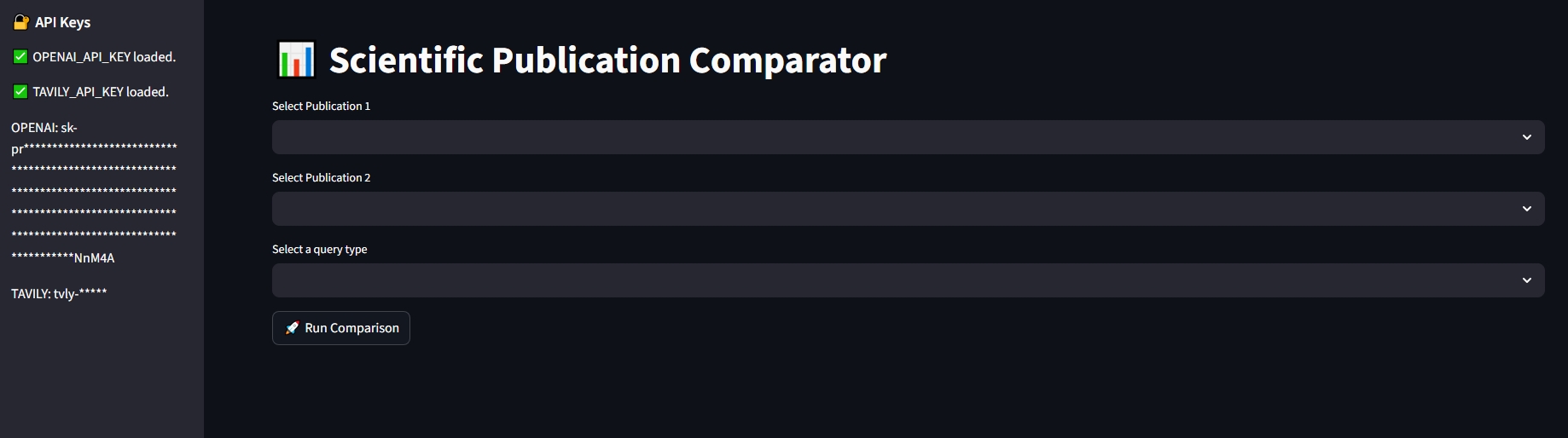

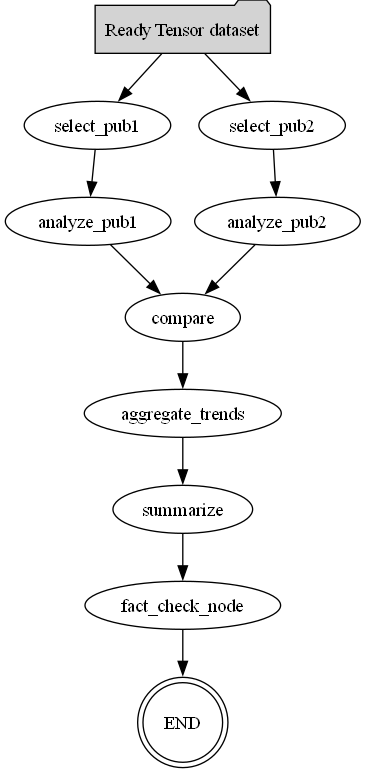

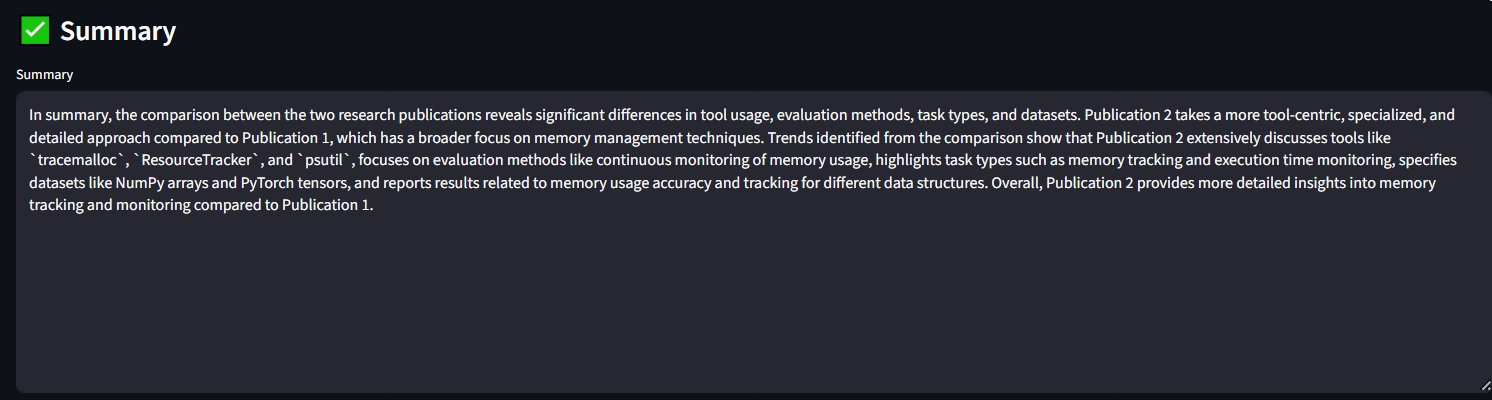

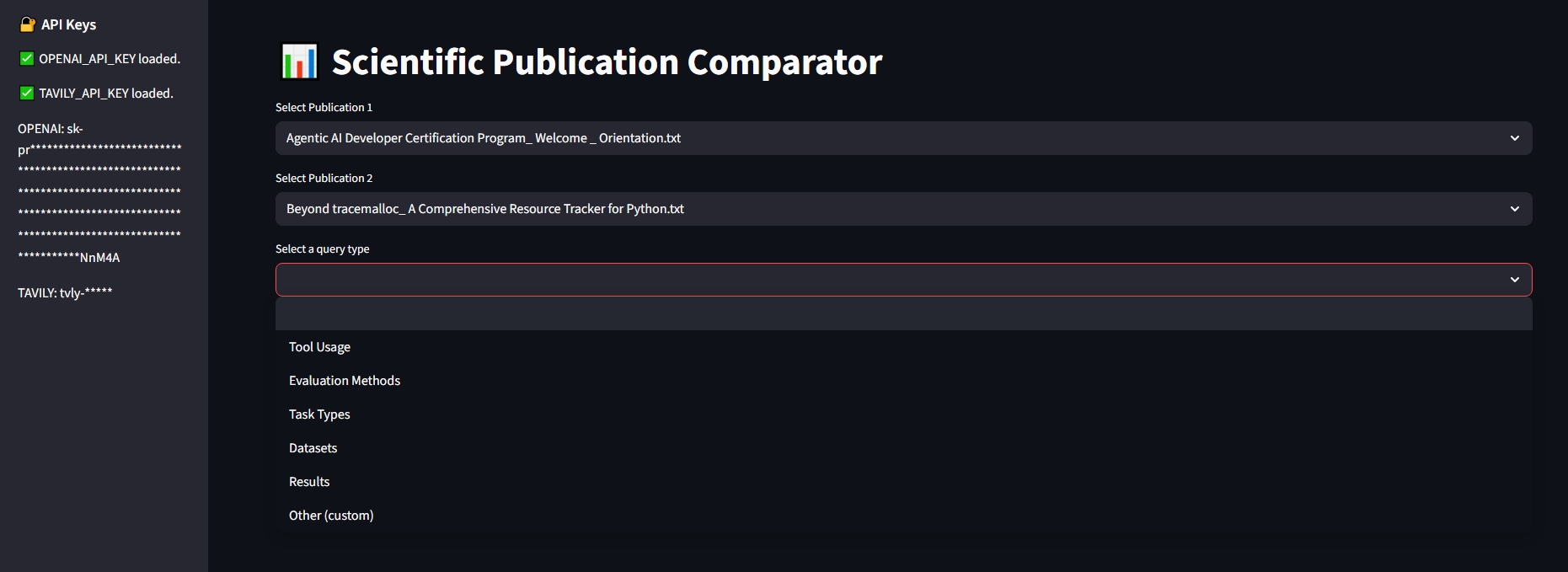

![ai-agent.webp](ai-agent.webp) ## TL;DR The **LangGraph‑Orchestrated Research Assistant** is a Streamlit‑based web application designed for side‑by‑side comparison of scientific publications drawn from the Ready Tensor dataset. Leveraging LangChain, LangGraph agents, and the OpenAI API, the system automates: * Extraction of key publication attributes (tools, datasets, evaluation metrics, results) * Side‑by‑side profiling and trend aggregation * Fact‑checking against original text * Contextual enrichment via external search (Tavily) * Visualization of orchestration logic through Mermaid and Graphviz flowcharts --- ## Tool Overview & Architecture ### System Architecture Goals The assistant leverages cutting-edge technologies to create a robust and scalable solution. LangChain and LangGraph together provide an orchestration framework for a multi-agent RAG pipeline, supporting document ingestion, intelligent querying, agent routing, and structured output generation. OpenAI embeddings and Chroma vector storage enable fast semantic retrieval, while ReAct-style external enrichment ensures access to up-to-date information. The system is grounded in five primary architectural goals: ### 1. Robust Data Ingestion Pipeline * **Publication Loader** parses `project_1_publications.json` into clean, structured `.txt` files. * Metadata is preserved while filenames are sanitized for consistency. * Preprocessing includes normalization, structure preservation, and integrity validation. ### 2. Efficient Vector Storage & Retrieval * OpenAI-generated embeddings are stored and retrieved using **Chroma**, a high-performance vector database. * Index creation and persistence are optimized for fast semantic search operations. ### 3. Multi-Agent Orchestration & Reasoning (LangGraph) * Built around a **LangGraph** state machine that routes queries to multiple specialized agents: * **Profile Extraction Agent**: Identifies tools, datasets, metrics, and results from publications. * **Comparison Engine Agent**: Aligns and contrasts attributes across two documents. * **Trend Aggregator Agent**: Detects cross-publication patterns and method trends. * **Fact-Checker Agent**: Verifies information consistency with source texts. * **Enrichment Agent**: Uses **ReAct** strategy with **Tavily** search to add real-world context. ### 4. Visualization and Interaction Layer * **Streamlit** provides a responsive user interface: * Dropdown selectors for publications * Query input area for comparison topics * Output panels for structured responses * Orchestration diagrams: * **Mermaid** outputs `.mmd` files for doc embedding * **Graphviz** generates PNG flowcharts for documentation and presentations ### 5. Secure and Configurable Development Environment * Environment configuration managed through `.env` file: * `OPENAI_API_KEY`, `TAVILY_API_KEY` safely handled * `.gitignore` ensures secrets, logs, and large outputs are excluded from version control ### Workflow The flowchart below illustrates the system's LangGraph-driven orchestration logic: * Two publications are selected from the Ready Tensor dataset. * Each publication is analyzed independently to extract relevant metadata. * A comparison agent aligns and contrasts their content. * Aggregated trends are generated from the analysis. * A summarization step compiles key findings. * A fact-checking node validates the results against the source documents. * The workflow terminates with a structured response ready for user presentation. ![publication_flowchart.png](publication_flowchart.png) ## Key Features ### 1. Data Processing * **Unified Loader:** Ingests `.json` of publications → individual `.txt` files * **Structured Preprocessing:** Title sanitization, metadata preservation * **Secure Paths:** `paths.py` centralizes directory structure for cross‑platform use ### 2. Analysis Pipeline * **LangGraph Orchestration:** Agent‑driven, stateful workflow management * **Profile Extraction:** Automated GPT extraction of publication metadata * **Side‑by‑Side Comparison:** Query‑driven alignment of two publication profiles * **Trend Aggregation:** Automatic detection of method/result trends across publications * **Fact‑Checking:** Ensures accuracy against source documents * **ReAct Enrichment:** External web context via Tavily search ### 3. Visualization & Export * **Interactive Streamlit UI:** * Dropdown selectors for Publication A & Publication B * Query input (e.g., “Evaluation Methods”, “Datasets used”) * Display of comparison tables, trend charts, and enrichment notes * **Flowchart Outputs:** * **Mermaid (.mmd)** for in‑doc embedding * **Graphviz (PNG)** for reports and CI pipelines * **Export Formats:** HTML / JSON of comparison results for downstream use ## Repository Structure ``` Agentic_AI_Developer_Certification_Project2/ ├── src/ │ ├── app.py # Main Streamlit App UI (entry point for the web interface) │ ├── explorer.py # Core logic for publication analysis using LangGraph and LLMs │ ├── generate_flowchart_graphviz.py # Generates a Graphviz PNG diagram of the LangGraph orchestration flow │ ├── generate_flowchart_mermaid.py # Generates a Mermaid diagram of the LangGraph orchestration flow │ ├── loader.py # Converts JSON into individual .txt files from the Sample Ready Tensor dataset │ ├── paths.py # Centralized path definitions │ ├── utils.py # Helper functions for path and string handling ├── .env.example # Example environment file storing secret API keys ├── data/ │ ├── project_1_publications.json # Sample Ready Tensor dataset │ └── sample_publications/ # Directory containing input publication `.txt` files │ └── # ↳ Each text file represents a single publication ├── requirements.txt # Dependency list for pip install (Streamlit, LangChain, etc.) ├── README.md # Project documentation explaining setup and usage ├── .gitignore # Specifies files/folders to be ignored by Git ├── LICENCE # Project license file ├── outputs/ │ ├── # ↳ HTML output of comparisons │ └── # ↳ JSON output of comparisons ├── docs/ │ ├── publication_flowchart.png # ↳ Graphviz diagram (PNG) │ ├── langgraph_flowchart.mmd # ↳ Mermaid diagram (MMD) │ └── Untitled diagram _ Mermaid Chart-2025-07-09-115351.png # ↳ Mermaid diagram (PNG) ├── examples_screens/ │ └── # ↳ UI usage screenshots ``` ## Implementation ### Multi-Agent Orchestration & Reasoning (LangGraph) #### **1. Node, Edge, and State Mechanics** * Each agent is added as a **node** using `graph.add_node("compare", self.compare)` * Transitions are set with `graph.add_edge("compare", "aggregate_trends")` * The shared `AgentState` is a TypedDict that carries information (e.g., `comparison`, `trends`) across the workflow #### 2. **State-Driven Flow** > As each node (agent) completes, it receives the current state, updates fields (like `pub1_profile` or `summary`), and returns the updated state to the next node enabling sequential logic. The shared `AgentState` typed dict underpins this continuity. #### 3. **Advanced Orchestration Features** * **Persistence & Fault Tolerance**: LangGraph supports checkpointing, allowing workflows to resume cleanly after interruptions. * **Support for Conditional Edges**: Though you use fixed edges, LangGraph can also choose agent paths based on state (e.g., branching logic based on content). * **Streaming & Monitoring**: LangGraph integrates with observability tools like LangSmith or Langfuse for debugging and tracing workflows. #### 4. **Mini Code** The following code snippet shows how graph is constructed: ![StateGraph.jpg](StateGraph.jpg) ### Prerequisites Before running the application, make sure your environment is properly configured with the following: * **Python 3.10+** * **Environment Variables:** * `OPENAI_API_KEY` (OpenAI) Used to authenticate with OpenAI’s API for embeddings, LLM calls, and prompt generation. Obtain it from your [OpenAI account dashboard](https://platform.openai.com/settings/proj_QfSdxsbV8mrX7StCRDN5cXI0/api-keys), then set it in your environment. * `TAVILY_API_KEY` (Tavily for external searches) Required for using the Tavily search integration, which enriches your assistant with real-time web search capabilities optimized for AI workflows. Sign in at [Tavily’s dashboard](https://app.tavily.com/playground) to generate an API key and store it securely ### Installation 1. **Clone & Checkout** ```bash git clone https://github.com/micag2025/Agentic_AI_Developer_Certification_Project2 cd Agentic-AI-Developer-Certification-Project2 git checkout main ``` 2. **Virtual Environment (recommended)** ```bash python3 -m venv .venv source .venv/bin/activate # macOS/Linux .\.venv\Scripts\activate # Windows ``` 3. **Install Dependencies** ```bash pip install -r requirements.txt ``` 4. **Configure Environment** Copy `.env.example` → `.env` and populate: ```env OPENAI_API_KEY=your_openai_key TAVILY_API_KEY=your_tavily_key ``` ### Running the Application 1. **Ensure Data** Confirm `data/project_1_publications.json` is present. 2. **Launch Streamlit** ```bash streamlit run src/app.py ``` 3. **Open in Browser** Navigate to `http://localhost:8501` to access the Research Assistant. ![1_Screenshot_initial_StreamLit_interface.jpeg](1_Screenshot_initial_StreamLit_interface.jpeg) ### Usage Examples 1. **Select Publications** Choose two publications from the dropdown menus. Now, the two publications are selected from the Ready Tensor dataset. ![4_Screenshot_Streamlit_options_query_types.jpeg](4_Screenshot_Streamlit_options_query_types.jpeg) 2. **Enter a Query** E.g., “Evaluation Methods” or “Dataset comparisons”. And the publications are analyzed independently to extract relevant metadata. ![6_Screenshot_Streamlit_example_usage1_processing.jpeg](6_Screenshot_Streamlit_example_usage1_processing.jpeg) 3. **View Results** * Side‑by‑side comparison table of extracted profiles ![8_Screenshot_Streamlit_summary_output_example_usage1.jpeg](8_Screenshot_Streamlit_summary_output_example_usage1.jpeg) * Fact‑checking annotations Here's where the fact-checking node validates the results against the source documents. ![9_Screenshot_Streamlit_fastcheck_output_example_usage1.jpeg](9_Screenshot_Streamlit_fastcheck_output_example_usage1.jpeg) * Enrichment insights sourced from external web search ![10_Screenshot_message_saved_outputs_example_usage1.jpeg](10_Screenshot_message_saved_outputs_example_usage1.jpeg) **Overall final output** Finally, we get a structured response ready for user presentation off of the workflow. ![7_Screenshot_Streamlit_example_outputs_example_usage1.jpeg](7_Screenshot_Streamlit_example_outputs_example_usage1.jpeg) ## References - [LangGraph](https://www.langchain.com/langgraph) - [LangChain](https://www.langchain.com/langchain) - [Openai API](https://huggingface.co/learn/agents-course/unit2/langgraph/introduction?utm_source=chatgpt.com) - [Streamlit](https://docs.streamlit.io/) - [Tavily](https://www.tavily.com/) - [Mermaid](https://mermaid.js.org/) - [Ready Tensor Certifications](https://app.readytensor.ai/hubs/ready_tensor_certifications) - [Technical Evaluation Rubric](https://app.readytensor.ai/publications/WsaE5uxLBqnH) - [Engage and Inspire: Best Practices for Publishing on Ready Tensor](https://app.readytensor.ai/publications/engage_and_inspire_best_practices_for_publishing_on_ready_tensor_SBgkOyUsP8qQ) ## Contributing We welcome enhancements and issue reports: 1. **Fork** the repo 2. **Create** a feature branch (`git checkout -b feature-name`) 3. **Commit & Push** your changes 4. **Submit** a Pull Request Please adhere to existing code style and update documentation as needed. ## Future Implementations We welcome contributors to propose and build enhancements to this system. Some of the upcoming or potential future features include: * **Prompt Engineering Enhancements:** Design more precise and instructive prompts using structured formats, few-shot examples, and task-specific templates to improve agent performance. * **Multi-Query Support:** Enable users to submit multiple queries simultaneously (e.g., "Tool Usage", "Task Types") for more efficient comparative analysis. * **Expanded Agent Toolkit & Visualizations:** Integrate additional agent tools (e.g., citation extractors, figure summarizers) and visual representations (charts, relationship graphs) to provide deeper analytical insights. * **Advanced UI/UX Overhaul:** Build a more responsive and intuitive user interface with enhanced interactivity, visualization panels, and accessibility features. * **LLM Fine-Tuning Integration:** Incorporate fine-tuned or domain-adapted LLMs for improved accuracy in extraction, summarization, and reasoning tasks. * **Feedback & Evaluation Mechanisms:** Implement user rating and feedback forms for each response to continuously fine-tune performance and relevance. Contributors are encouraged to fork the repository, submit pull requests, or open discussions for feature suggestions and design proposals. For bug reports or feature requests, [open an issue](https://github.com/micag2025/Agentic_AI_Developer_Certification_Project2/issues). For general questions or share your thoughts, start a [comment](https://app.readytensor.ai/publications/IQBETLgAsJ9X). ## License Licensed under the [MIT License](LICENSE). ## Acknowledgments This work is part of the **Agentic AI Developer Certification** program by [Ready Tensor](https://www.readytensor.ai). Special thanks to the Ready Tensor developer community for guidance and feedback.
