Content: Applied Solution Showcase

1. Problem Context

Planning a trip sounds exciting, but the reality is usually stressful. Before you ever board a plane, you’re juggling dozens of questions:

What’s the weather like when I’ll be there?

Do I need a visa or any special documents?

Which neighborhoods are safe and convenient?

How do I fit in all the must-see spots without running out of time (or energy)?

How much will it actually cost once I add up flights, hotels, food, and activities?

And after all that, which booking site has the best deal?

Most of us end up bouncing between endless tabs—Google searches, weather sites, airline apps, hotel reviews, currency converters—just to piece together something that looks like a plan. It’s time-consuming, overwhelming, and easy to miss important details.

Travel agencies try to make this easier, but their process is often manual and slow. On the flip side, existing travel apps usually focus on just one thing—like booking flights or showing top attractions—without pulling the whole picture together in a way that feels truly personal.

This is where the Multi-Agent Travel Planner comes in. Instead of one person (or one app) doing it all, specialized AI agents team up—one for research, one for building your itinerary, another for budgeting, another for booking—and then combine their work into a single, clear travel brief. The goal is simple: take the hassle out of planning so you can spend less time stressing over logistics and more time looking forward to your trip.

2. Technical Requirements

To run and contribute to the Multi-Agent Travel Planner, you’ll need the following tools, services, and environment configurations:

1. System Requirements

1. Operating System: Works on Windows, macOS, or Linux
2. Python Version: 3.11 or higher
3. Memory: 4 GB minimum (8 GB recommended)
4. Disk Space: ~2 GB free for dependencies, logs, and Docker images

2. Core Dependencies

• LangChain (≥0.2.0) – LLM integration & chaining
• LangGraph (≥0.1.0) – Agent orchestration and workflow engine
• Gradio (≥4.0) – Modern UI interface
• Streamlit (≥1.30) – Alternative UI option
• FastAPI (≥0.110) – REST API backend
• OpenAI API Client (≥1.0) – LLM-powered intelligence
• python-dotenv (≥1.0) – Environment variable management
• pytest (≥7.0) – Testing framework
• pydantic (≥2.0) – Data validation and settings management

(all dependencies are pinned in requirements.txt / setup.cfg)

3. External Services

• OpenAI API Key – Required for LLM calls
• LangSmith API Key (optional) – For monitoring and tracing agent workflows
• Weather API – Open-Meteo API for destination forecasts
• Foreign Exchange API – Frankfurter API for real-time currency conversion
  (Optional) Booking API – Can be configured to connect with a bookings provider

4. Development Requirements

• Virtual Environment Tool – venv or virtualenv
• Docker & Docker Compose – For containerized deployment
• Pre-commit Hooks – For linting, formatting, and type checks
• pytest + coverage – For running 194+ tests (unit, integration, e2e)

5. Environment Configuration (.env)

Required keys/flags in .env:

OPENAI_API_KEY=your-openai-key
LANGCHAIN_API_KEY=your-langsmith-key (optional)

# General settings
ENVIRONMENT=development
LOG_LEVEL=INFO
DEBUG=false

# Security settings
RATE_LIMIT_PER_MINUTE=60
MAX_INPUT_LENGTH=10000
ENABLE_CONTENT_FILTERING=true

# Feature flags
ENABLE_CACHING=true
ENABLE_ASYNC_PROCESSING=true
ENABLE_METRICS=true

6. Deployment Requirements

Local Development: Docker Compose (docker/docker-compose.yml)
Production:

- AWS – ECS, EKS, or Lambda

- GCP – Cloud Run or GKE

- Azure – AKS or Container Instances

- Monitoring: Prometheus-compatible metrics + structured logging

CI/CD (optional): GitHub Actions, Jenkins, or similar

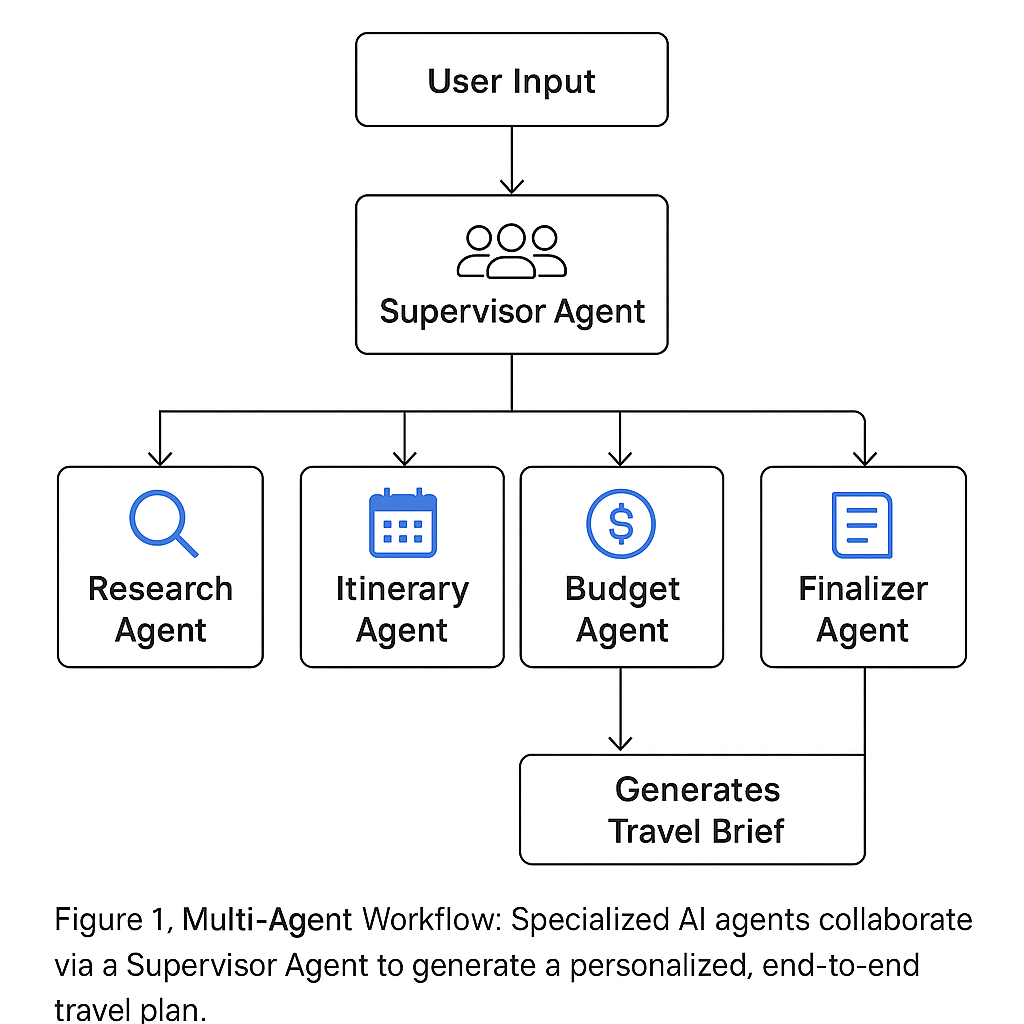

3. System Architecture

The Multi-Agent Travel Planner follows a modular, layered architecture with specialized agents, core orchestration, custom tools, and multiple user interface options.

1. User Interaction Layer

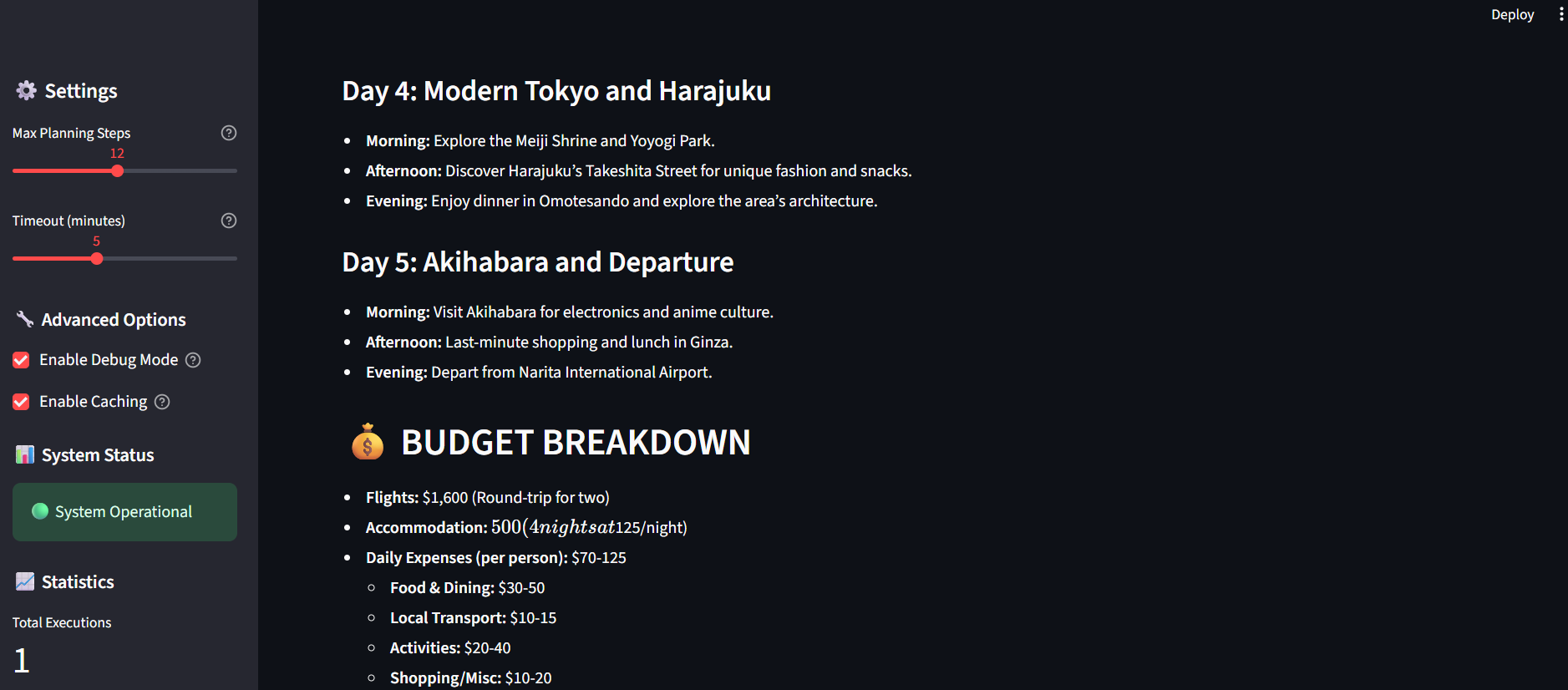

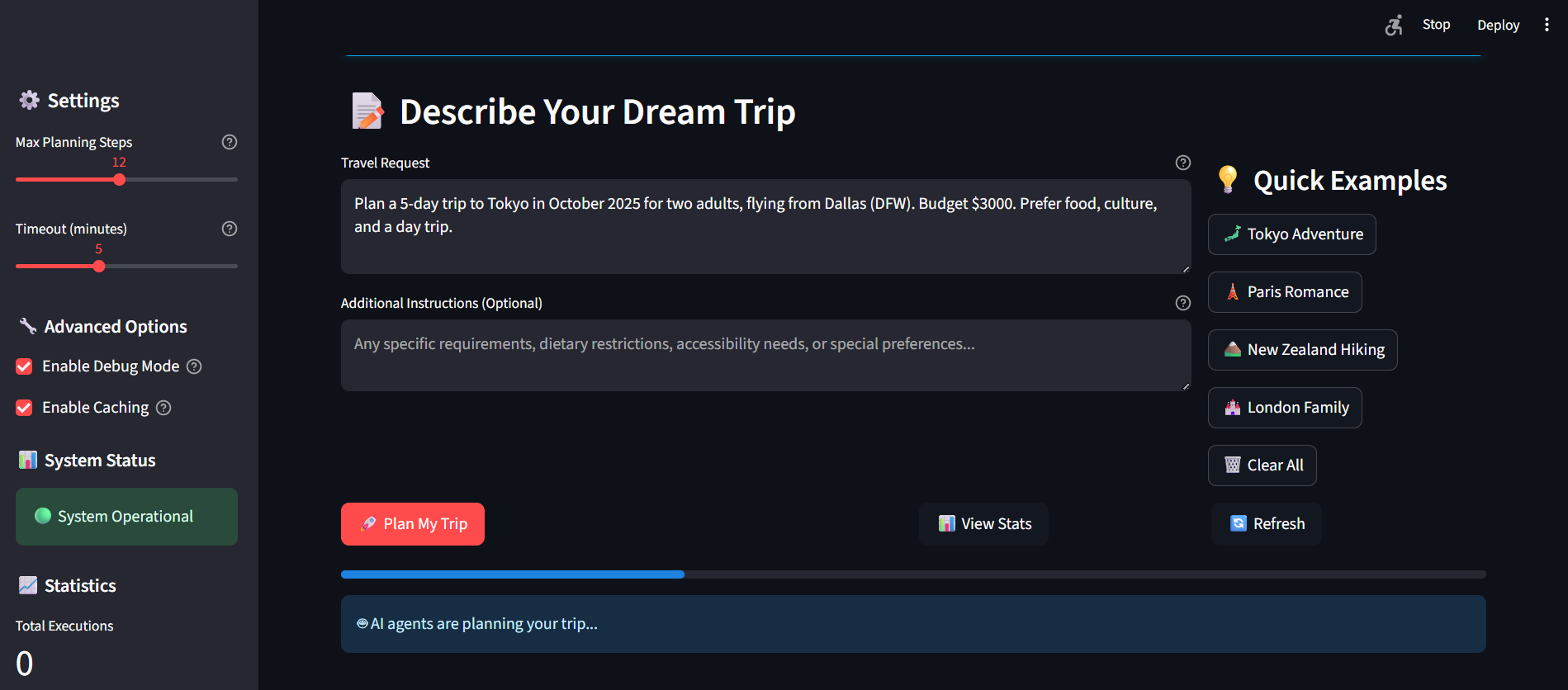

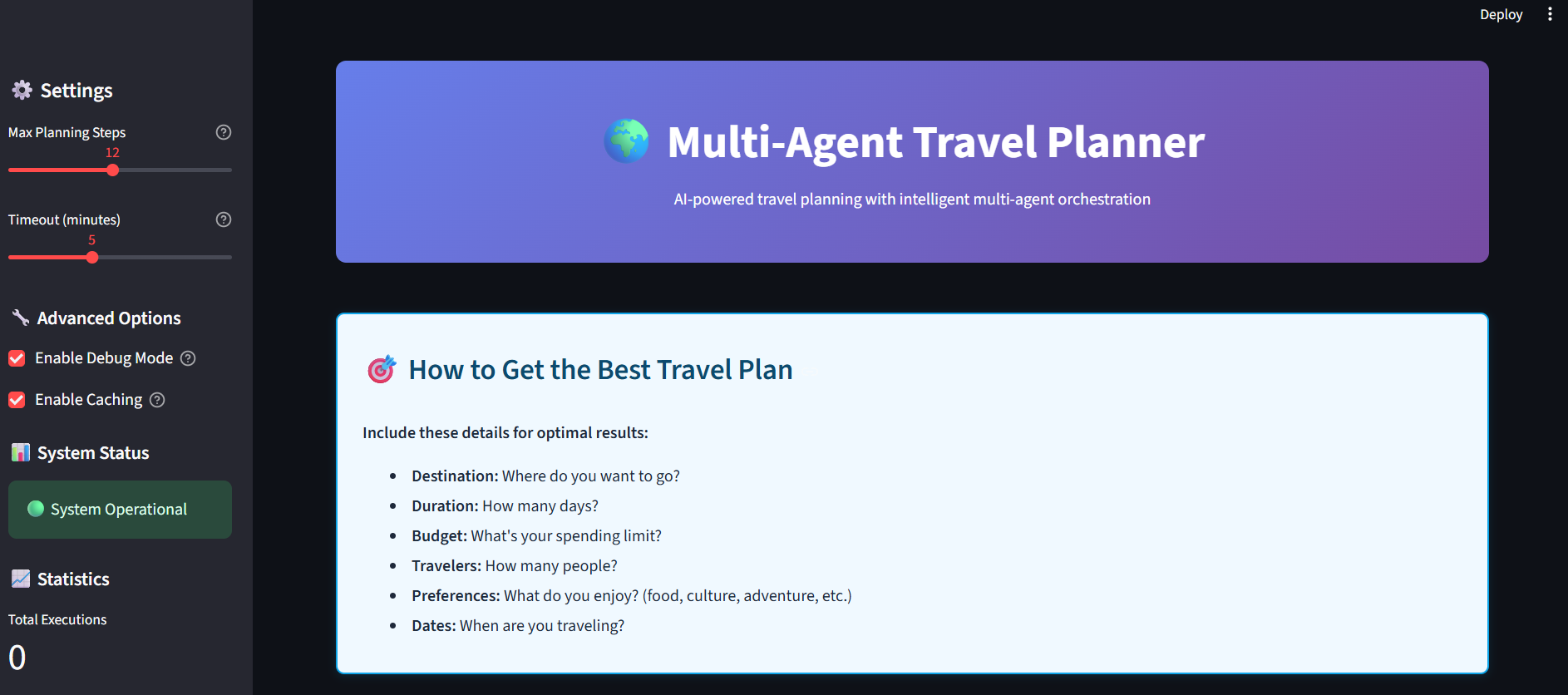

Streamlit UI (streamlit_app.py) → Modern, interactive interface for end users - production environment

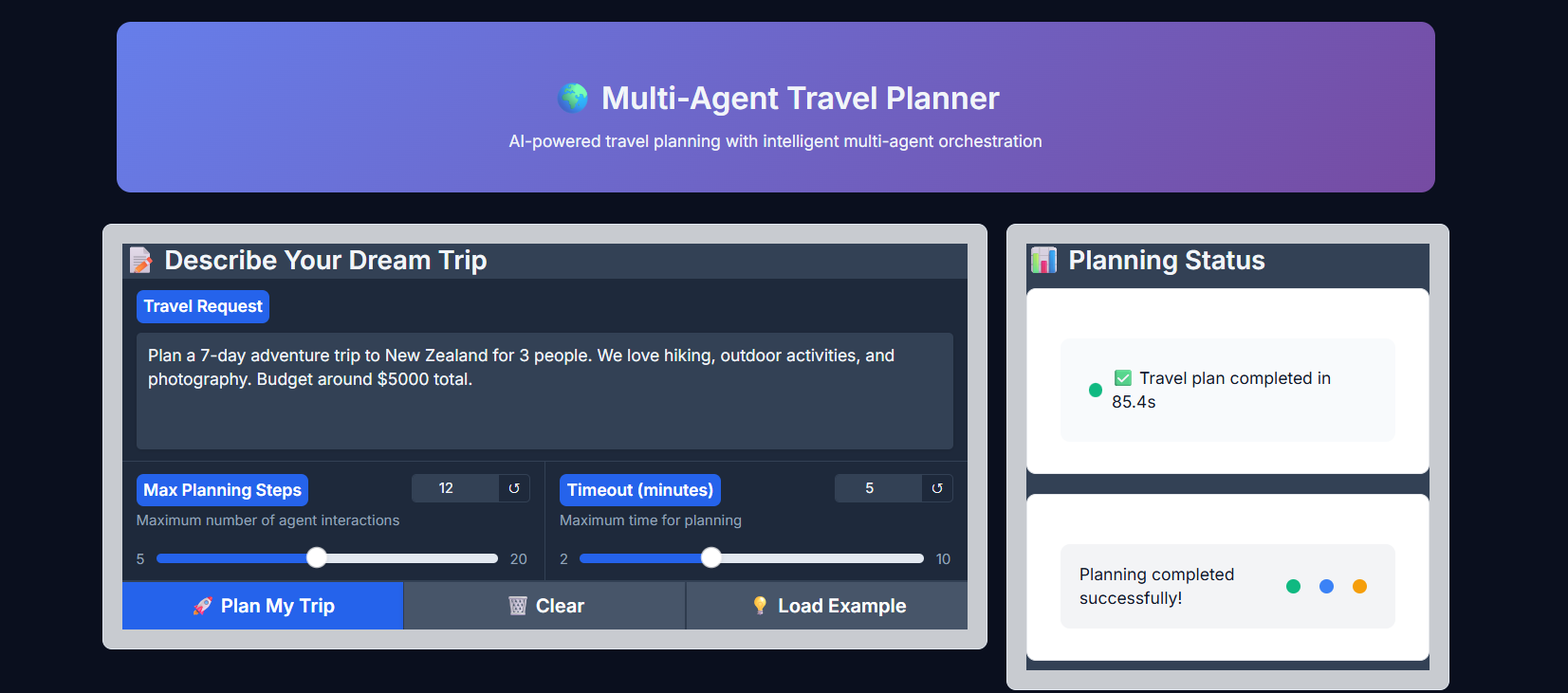

Gradio UI (gradio_app.py) → interface with a simple dashboard - dev environment

FastAPI Backend (api/) → Exposes REST APIs for integration with external apps

• All user inputs (e.g., “Plan a 5-day trip to Tokyo”) start here.

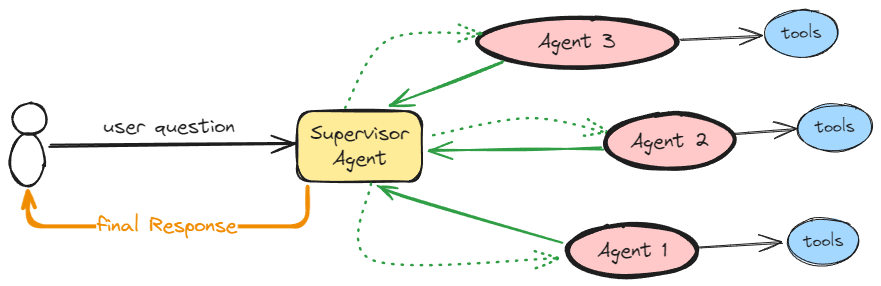

2. Orchestration Layer

Supervisor Agent (graph/supervisor.py)

Workflow Engine (graph/workflow.py)

• Coordinates specialized agents, manages execution order, retries, monitoring, and error handling.
  This layer ensures agents work collaboratively rather than independently.

3. Agent Layer

Each agent focuses on one core responsibility:

Research Agent (agents/research.py) → Destination info, weather, visa, transport

Itinerary Agent (agents/itinerary.py) → Day-by-day travel plan

Budget Agent (agents/budget.py) → Cost breakdowns, currency conversion

Booking Agent (agents/booking.py) → Suggests flights, hotels, transport

Finalizer Agent (agents/finalizer.py) → Merges all results into a concise travel brief

Semantic Search Integration:

Uses vector embeddings (via LangChain’s retrievers) to rank and retrieve the most relevant travel knowledge (visa requirements, weather patterns, destination guides).

Allows contextual retrieval: e.g., instead of keyword “Japan visa”, it can interpret “Do I need special documents to enter Tokyo in October?”

4. Tool Layer

Custom external service integrations:

Weather Tool (tools/weather.py) → Fetches real-time weather via Open-Meteo

Foreign Exchange Tool (tools/foreign_exchange.py) → Currency conversion via Frankfurter API

Bookings Tool (tools/booking.py) → (extensible) for flight/hotel search

5. Core Infrastructure Layer

Handles cross-cutting concerns:

Configuration (core/config.py) → Loads environment-specific settings

Security (core/security.py) → Input validation, sanitization, rate limiting

Logging (core/logging.py) → Structured logging with correlation IDs

Error Handling (core/error_handler.py) → Centralized exception handling & recovery

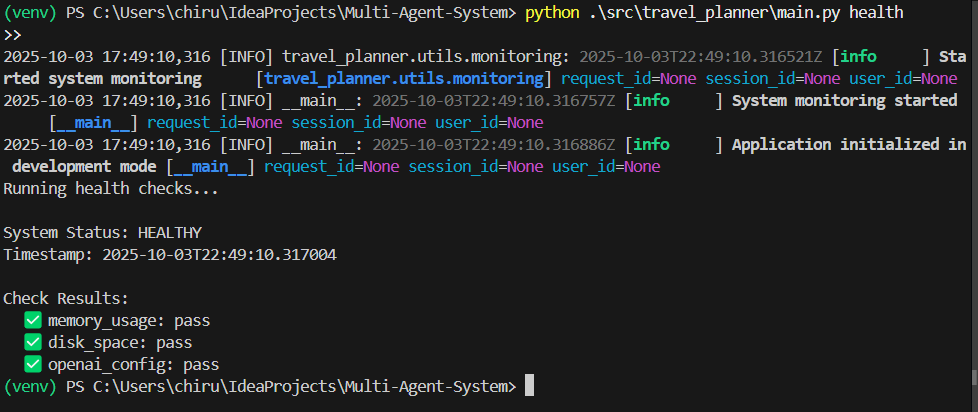

Monitoring (utils/monitoring.py) → Health checks, metrics, Prometheus integration

6. Testing & Quality Assurance Layer

Our project is production-grade because testing is built in at every level:

- Unit Tests (194+) → Validate each agent, tool, and utility in isolation

    - Example: Research agent returns correct visa info from knowledge base

- Integration Tests → Ensure agents communicate properly via LangGraph workflows

    - Example: Research → Itinerary → Budget pipeline correctness

- End-to-End (E2E) Tests → Test full user journey via Gradio/Streamlit UIs

    - Example: User query → orchestrated multi-agent workflow → final travel brief JSON/UI output

Coverage Reports (71% achieved) → Helps track untested paths & reliability

Continuous Testing in CI/CD → Every commit triggers pytest with coverage & linting

7. Inputs and Outputs

Inputs

• Travel Request (required): Natural language trip description

  • e.g., “Plan a 5-day trip to Tokyo in October, budget $3000.”

• Optional Preferences:

  • Budget, travel dates, origin city

  • Interests (food, culture, shopping, etc.)

  • Group size (adults/children)

  • Constraints (accommodation type, dietary needs, safety)

Outputs

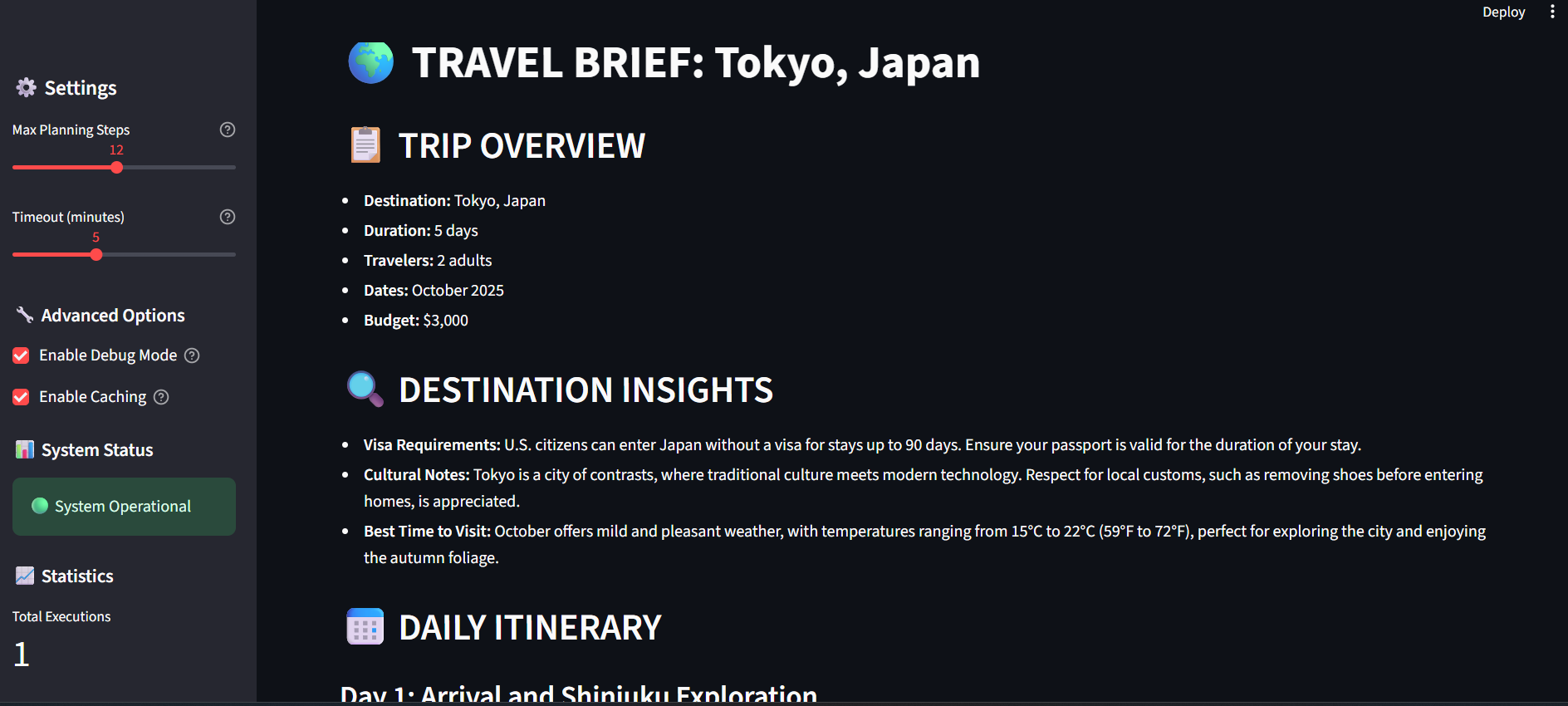

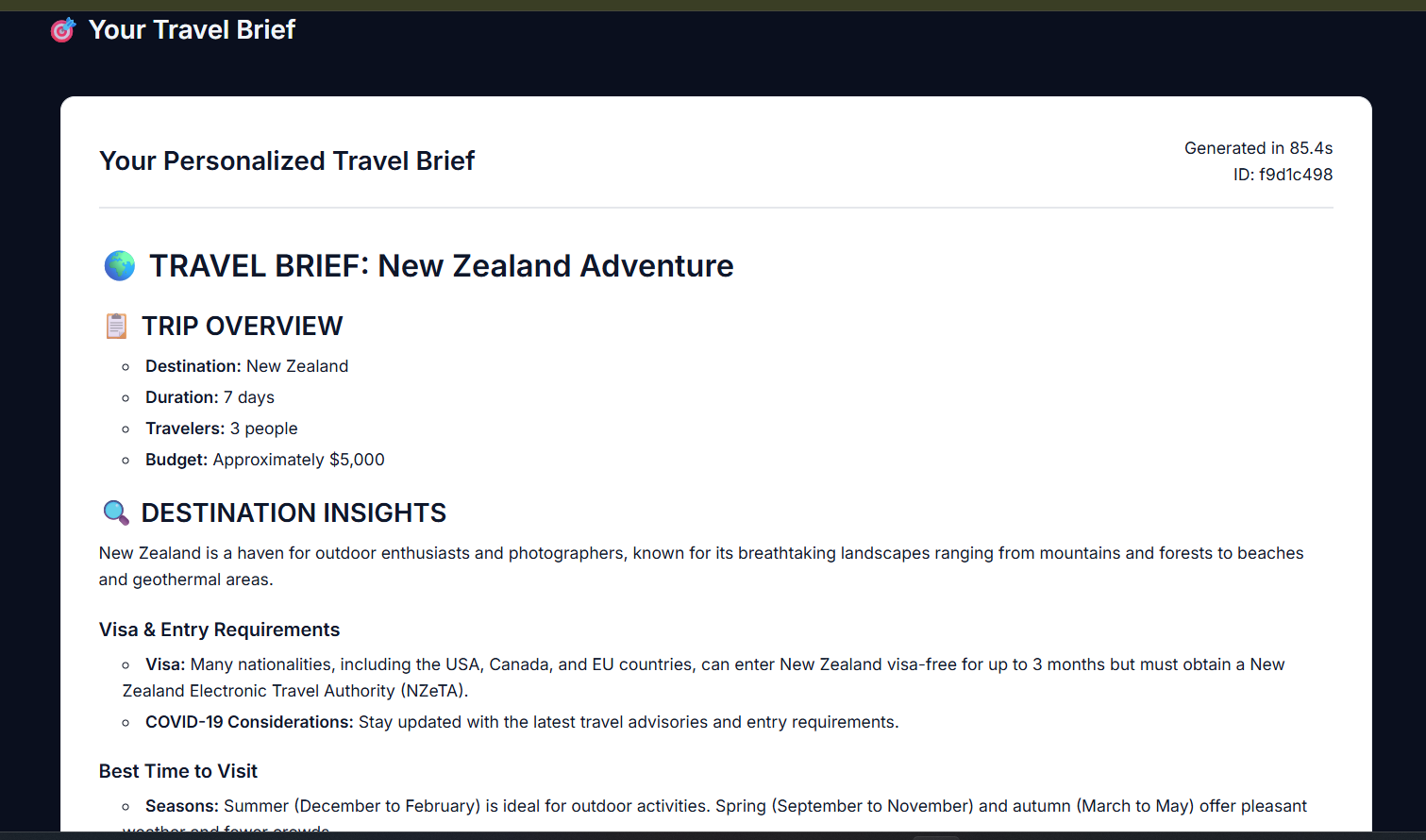

• Trip Snapshot: Destination, dates, travelers, budget

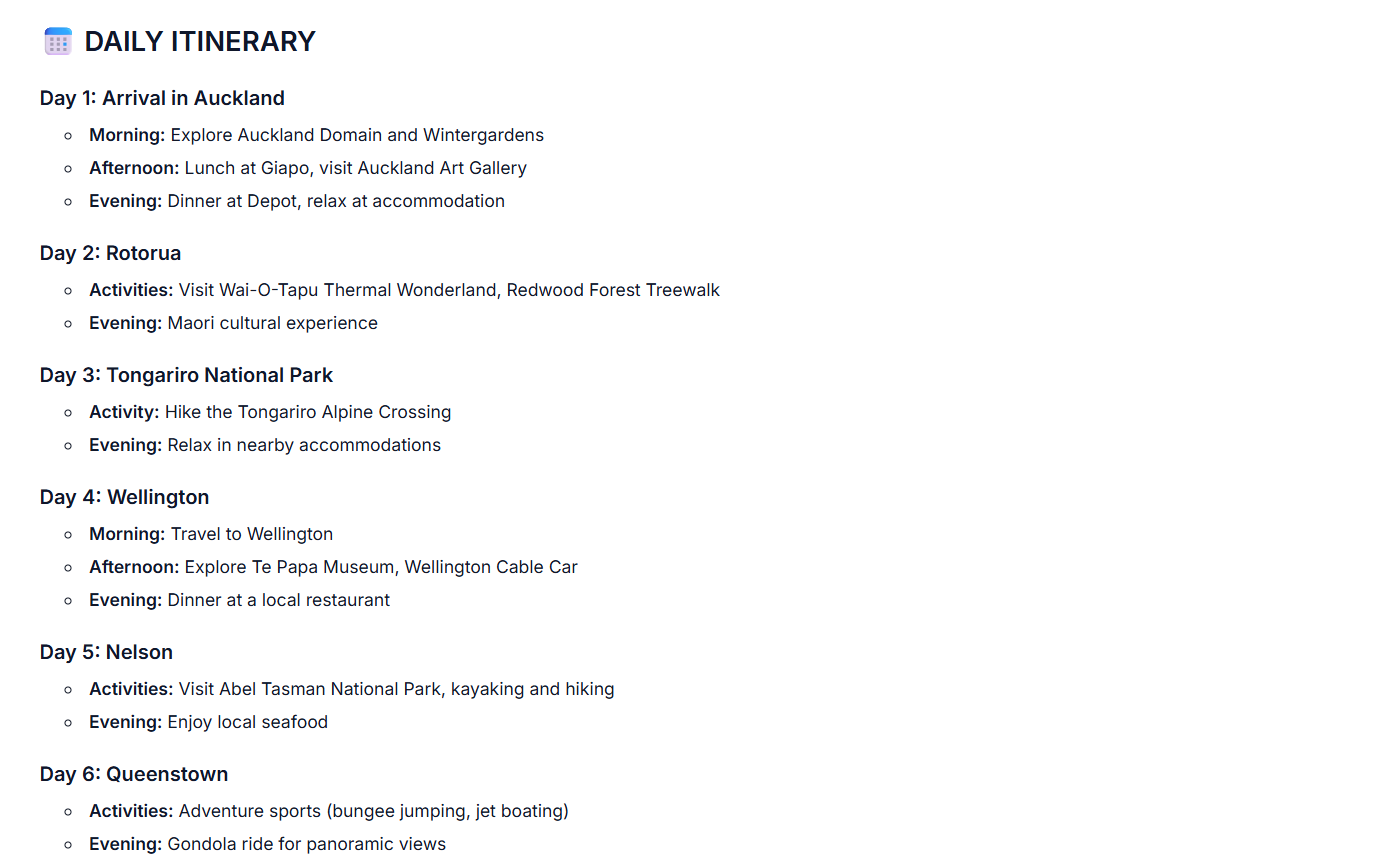

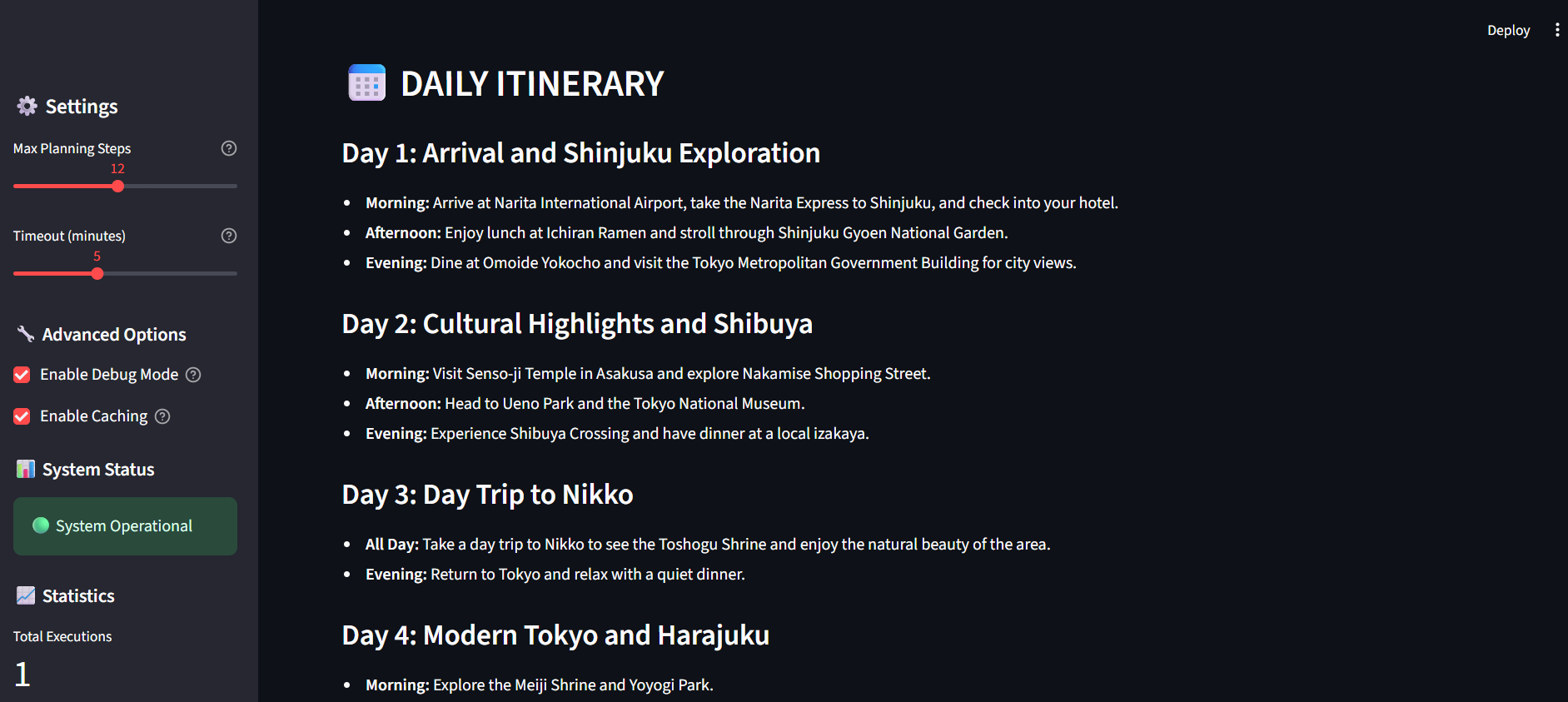

• Itinerary: Day-by-day plan with activities & meals

• Budget Breakdown: Flights, hotels, food, transport, misc.

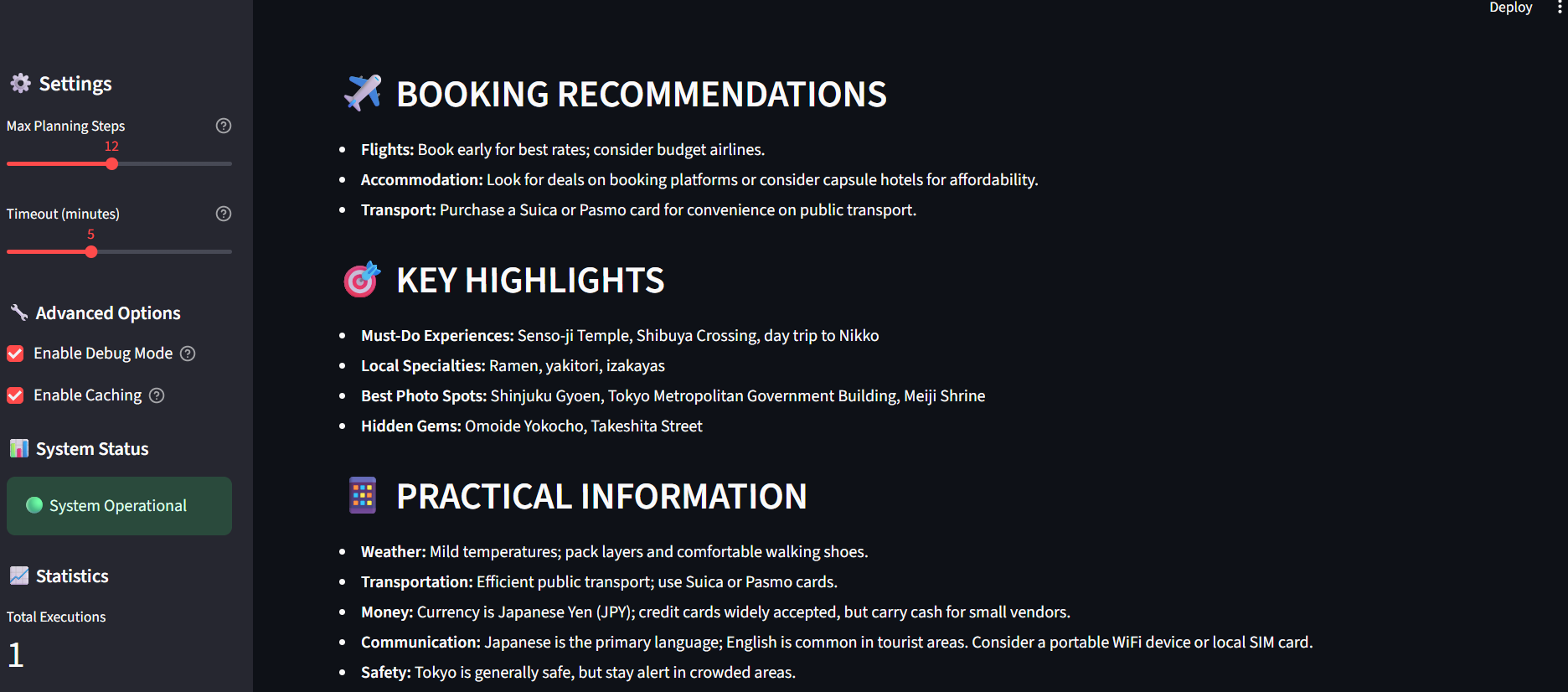

• Booking Suggestions: Flight & hotel options with pros/cons

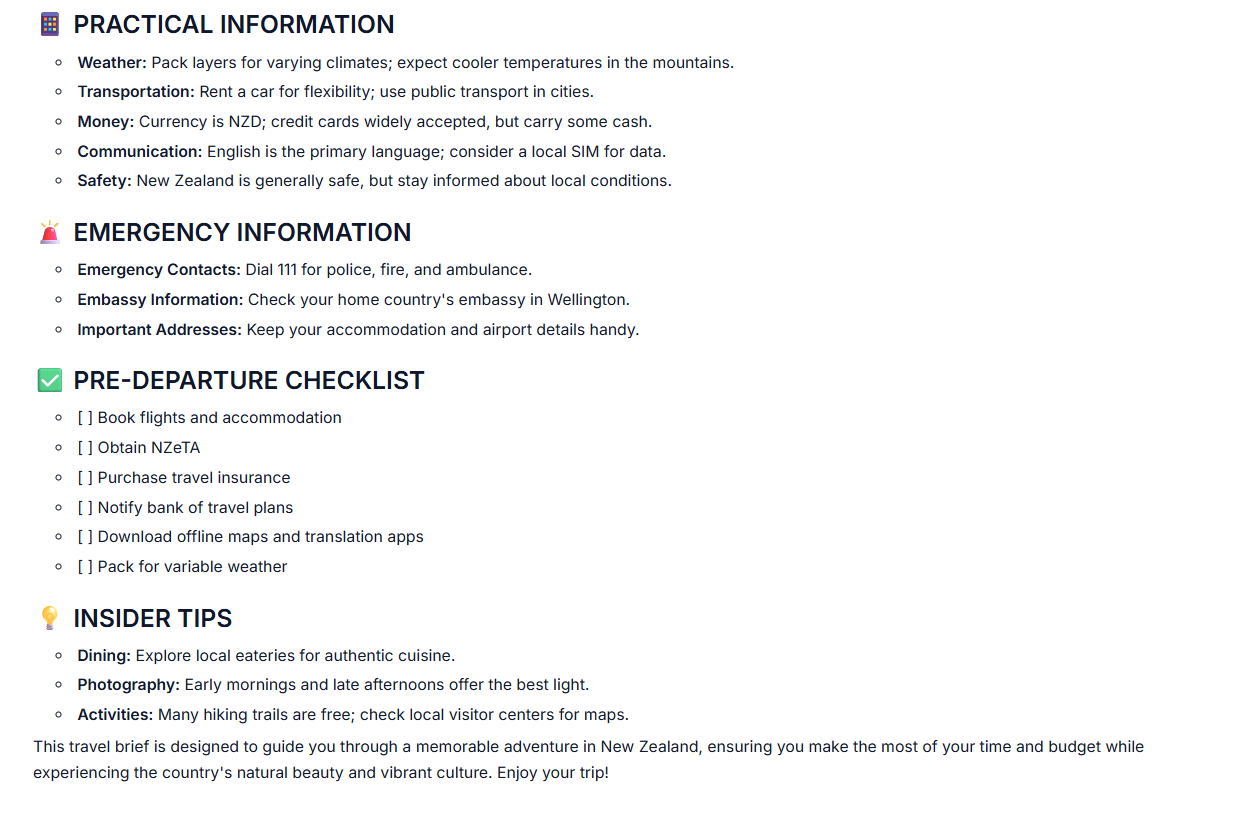

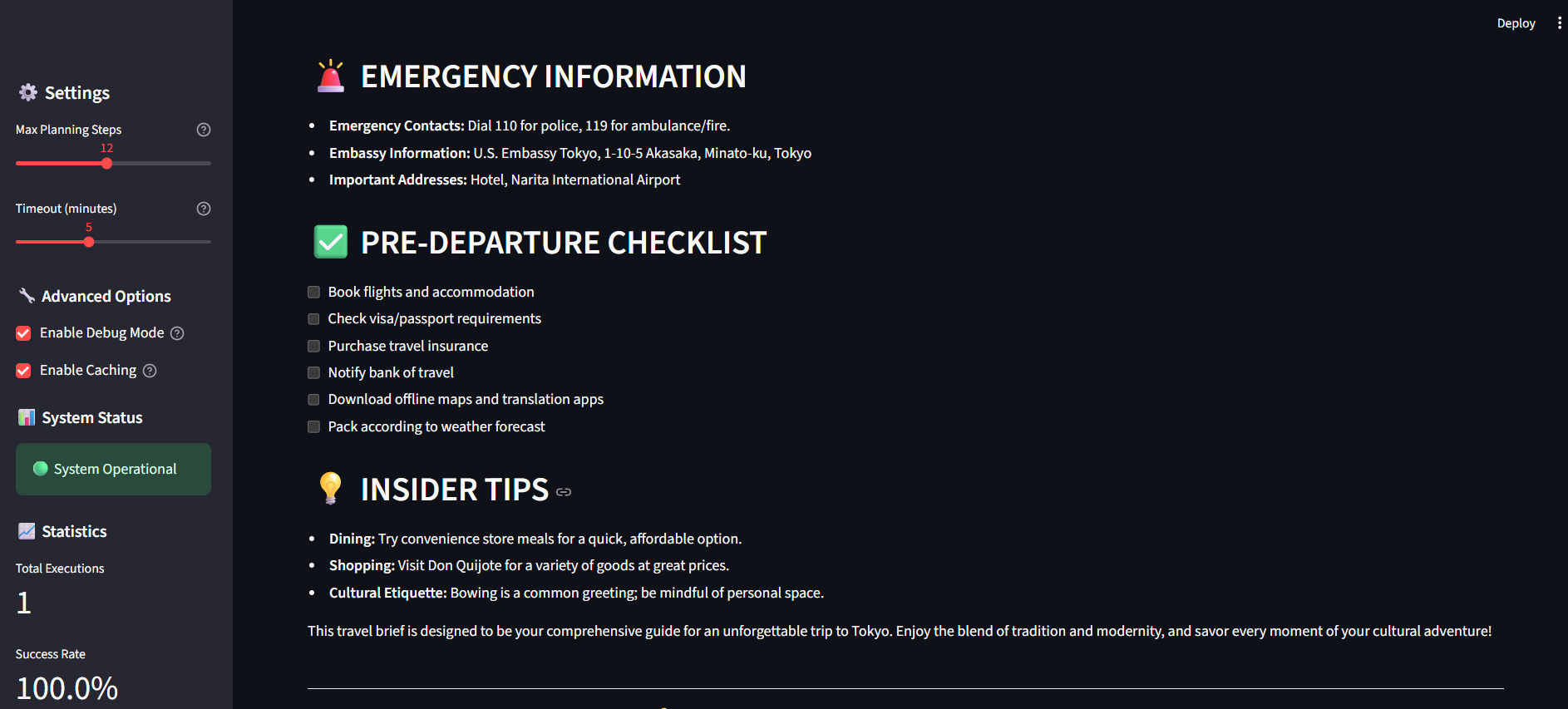

• Quick Tips: Weather, safety, transit, payments

• API Response: Structured JSON (for integrations)

4. Implementation

Agent Architecture and Implementation

Base Agent Design Pattern

All agents inherit from a common ToolUsingAgent base class that provides:

class ToolUsingAgent:
    def __init__(self, agent_type, name, system_prompt, tools, temperature, timeout_seconds):
        self.agent_type = agent_type
        self.name = name
        self.llm = ChatOpenAI(model="gpt-4o", temperature=temperature)
        self.tools = tools
        self.timeout_seconds = timeout_seconds

    def execute(self, state: AgentState, user_input: str) -> AgentResult:
        # Comprehensive execution with monitoring, error handling, and timeout protection

Key Features:

• Timeout Protection: Each agent has configurable execution timeouts
• Performance Monitoring: Execution time tracking and metrics collection
• Error Resilience: Graceful degradation on failures
• Tool Integration: Seamless integration with external APIs and tools

Specialized Agent Implementations

Research Agent

Purpose: Gather comprehensive destination information including visa requirements, weather, cultural insights, and transportation options.

Implementation Highlights:

class ResearchAgent(ToolUsingAgent):
    def __init__(self):
        tools = [
            DuckDuckGoSearchRun(name="duckduckgo_search"),
            WikipediaQueryRun(api_wrapper=WikipediaAPIWrapper()),
            weather_langchain_tool
        ]

        system_prompt = """
        You are the Research Agent for travel planning.
        ROLE: Gather reliable, recent information including visa requirements,
        best seasons to visit, neighborhoods, transportation, and cultural insights.

        OUTPUT FORMAT:
        - Destination Overview
        - Visa & Entry Requirements
        - Best Time to Visit
        - Key Areas/Neighborhoods
        - Transportation
        - Cultural Notes
        """

Key Capabilities:

• Multi-source Information Gathering: Web search, Wikipedia, weather APIs
• Intelligent Context Extraction: Parses user input to identify destination, duration, budget
• Structured Output: Consistent formatting for downstream agents

Itinerary Agent

Purpose: Create detailed day-by-day travel plans based on research findings and user preferences.

Implementation Features:

• Context-Aware Planning: Incorporates research findings and user interests
• Flexible Scheduling: Adapts to trip duration and preferences
• Activity Optimization: Balances must-see attractions with local experiences

Budget Agent

Purpose: Provide comprehensive cost breakdowns with real-time currency conversion.

Key Components:

• Multi-Currency Support: Real-time exchange rates via Frankfurter API
• Category-Based Budgeting: Flights, accommodation, food, activities, transportation
• Regional Cost Adjustment: Adapts estimates based on destination cost of living

Booking Agent

Purpose: Suggest optimal booking strategies and provide actionable recommendations.

Implementation Approach:

• Strategic Recommendations: Best booking timing and platforms
• Comparative Analysis: Pros/cons of different options
• Practical Guidance: Booking tips and considerations

Finalizer Agent

Purpose: Synthesize all agent outputs into a cohesive, actionable travel brief.

Key Features:

• Information Synthesis: Combines all agent contributions
• Consistency Checking: Ensures coherent recommendations
• Executive Summary: Provides clear, actionable final output

Workflow Orchestration

Enhanced Workflow Engine

The system uses a sophisticated workflow orchestration engine built on LangGraph:

class EnhancedWorkflow:
    def __init__(self):
        self.graph = StateGraph(AgentState)
        self.memory = MemorySaver()

        # Add nodes with enhanced error handling
        workflow.add_node("supervisor", self._supervisor_node)
        workflow.add_node("research", self._research_node)
        workflow.add_node("itinerary", self._itinerary_node)
        workflow.add_node("budget", self._budget_node)
        workflow.add_node("booking", self._booking_node)
        workflow.add_node("finalizer", self._finalizer_node)

        # Conditional routing from supervisor
        workflow.add_conditional_edges("supervisor", self._route_decision, {...})

Intelligent Routing Logic

The supervisor agent makes intelligent routing decisions based on:

def _route_decision(self, state: AgentState) -> str:
    # Hard-stop guard: prevent infinite loops
    turns = state.get("shared", {}).get("turns", 0)
    if turns >= max_turns - 1:
        return "finalizer"

    # Completion check: if core info gathered, finalize
    has_research = any(msg.agent_name == "research_agent" for msg in state["messages"])
    has_budget = any(msg.agent_name == "budget_agent" for msg in state["messages"])
    if has_research and has_budget:
        return "finalizer"

    return state.get("next", "finalizer")

State Management

Centralized State Management:

class AgentState(TypedDict):
    messages: List[Message]
    request_id: str
    session_id: Optional[str]
    user_id: Optional[str]
    current_agent: Optional[str]
    next: Optional[str]
    workflow_status: WorkflowStatus
    max_turns: int
    timeout_seconds: int
    shared: Dict[str, Any]

Key Features:

• Message History: Complete conversation tracking
• Workflow Control: Turn limits and timeout management
• Agent Coordination: Shared context between agents
• Error Recovery: Graceful handling of agent failures

External Tool Integration

Weather Tool Implementation

Architecture: Robust weather service with caching and error handling

class WeatherTool(ExternalAPITool, CachedTool):
    def __init__(self):
        ExternalAPITool.__init__(self, base_url="https://geocoding-api.open-meteo.com")
        CachedTool.__init__(self, cache_ttl_seconds=1800)  # 30-minute cache

    def _execute(self, city: str, country: Optional[str] = None) -> ToolResult:
        # Step 1: Geocode the city
        geocode_result = self._geocode_city(city, country)

        # Step 2: Get weather forecast
        weather_data = self._get_weather_forecast(
            geocode_result["latitude"],
            geocode_result["longitude"]
        )

        # Step 3: Format response
        return self._format_weather_data(geocode_result, weather_data)

Key Features:

• Two-Stage Process: Geocoding followed by weather lookup
• Caching Layer: 30-minute cache to reduce API calls
• Error Resilience: Comprehensive error handling and fallbacks
• Data Validation: Input validation with Pydantic models

Currency Exchange Tool

Implementation: Real-time currency conversion using Frankfurter API

class ForeignExchangeTool(ExternalAPITool, CachedTool):
    def _execute(self, amount: float, from_currency: str, to_currency: str) -> ToolResult:
        # Validate currencies and get current rates
        rates_data = self._get_exchange_rates(from_currency)
        converted_amount = amount * rates_data["rates"][to_currency]

        return {
            "original_amount": amount,
            "converted_amount": round(converted_amount, 2),
            "exchange_rate": rates_data["rates"][to_currency],
            "rate_date": rates_data["date"]
        }

Security and Reliability

Security Implementation

Input Validation and Sanitization:

class SecurityManager:
    def validate_input(self, user_input: str) -> str:
        # Length validation
        if len(user_input) > self.max_input_length:
            raise SecurityError("Input too long")

        # Content filtering
        if self.enable_content_filtering:
            user_input = self._filter_content(user_input)

        # XSS prevention
        return bleach.clean(user_input, tags=[], strip=True)

Key Security Features:

• Input Sanitization: XSS prevention and content filtering
• Rate Limiting: Protection against abuse (60 requests/minute default)
• API Key Management: Secure environment variable handling
• Output Filtering: PII redaction and content safety

Error Handling and Resilience

Circuit Breaker Pattern:

class CircuitBreaker:
    def __init__(self, failure_threshold=5, timeout=60):
        self.failure_threshold = failure_threshold
        self.timeout = timeout
        self.failure_count = 0
        self.last_failure_time = None
        self.state = "CLOSED"  # CLOSED, OPEN, HALF_OPEN

Retry Mechanisms:

• Exponential Backoff: Intelligent retry with increasing delays
• Timeout Protection: Per-agent and workflow-level timeouts
• Graceful Degradation: Continue workflow even if individual agents fail

Monitoring and Observability

Structured Logging

Implementation:

class StructuredLogger:
    def __init__(self):
        self.logger = structlog.get_logger()

    def log_workflow_execution(self, request_id, execution_time_ms, success):
        self.logger.info(
            "workflow_executed",
            request_id=request_id,
            execution_time_ms=execution_time_ms,
            success=success,
            timestamp=datetime.utcnow().isoformat()
        )

Performance Monitoring

Metrics Collection:

• Workflow Metrics: Execution time, success rate, error count
• Agent Metrics: Individual agent performance and tool usage
• API Metrics: External API response times and error rates
• System Metrics: Memory usage, CPU utilization

LangSmith Integration

Observability Features:

• Trace Tracking: Complete workflow execution traces
• Performance Analysis: Detailed timing and token usage
• Error Debugging: Comprehensive error context and stack traces

User Interface Implementation

Multi-Interface Architecture

Gradio Interface (Primary):

def create_gradio_interface():
    with gr.Blocks(title="Multi-Agent Travel Planner") as interface:
        gr.Markdown("# 🌍 Multi-Agent Travel Planner")

        with gr.Row():
            input_text = gr.Textbox(
                label="Describe your travel plans",
                placeholder="Plan a 5-day trip to Tokyo for 2 adults, budget $3000"
            )
            submit_btn = gr.Button("Plan My Trip", variant="primary")

        output_text = gr.Markdown(label="Travel Plan")

        submit_btn.click(
            fn=process_travel_request,
            inputs=[input_text],
            outputs=[output_text]
        )

FastAPI Backend:

@app.post("/api/v1/travel/plan")
async def plan_travel(request: TravelPlanRequest):
    result = enhanced_workflow.execute(
        user_input=request.travel_request,
        max_turns=request.preferences.max_turns,
        timeout_seconds=request.preferences.timeout_seconds
    )
    return TravelPlanResponse(**result)

Testing and Quality Assurance

Comprehensive Test Suite

Test Coverage: 71% (194+ tests)

Test Categories:

• Unit Tests: Individual component testing (194+ tests)
• Integration Tests: Agent communication and workflow testing
• End-to-End Tests: Full system testing with UI
• Security Tests: Input validation and security feature testing

Example Test Implementation:

class TestResearchAgent:
    def test_destination_extraction(self):
        agent = ResearchAgent()
        context = agent._extract_research_context(
            "Plan a 5-day trip to Tokyo for 2 adults, budget $3000"
        )
        assert context["destination"] == "tokyo"
        assert context["duration"] == 5
        assert context["budget"] == "3000"

Performance Benchmarks

System Performance Targets:

• Response Time: < 5 seconds average
• Throughput: 100+ requests/minute
• Uptime: 99.5% target
• Test Coverage: 71% maintained

Deployment and Infrastructure

Docker Containerization

Multi-Stage Dockerfile:

FROM python:3.11-slim as base
WORKDIR /app
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt

FROM base as production
COPY src/ ./src/
EXPOSE 8000
CMD ["python", "-m", "travel_planner.main", "api"]

Configuration Management

Environment-Based Configuration:

class Settings(BaseSettings):
    environment: str = Field(default="development", env="ENVIRONMENT")
    openai: OpenAIConfig = Field(default_factory=OpenAIConfig)
    security: SecurityConfig = Field(default_factory=SecurityConfig)
    monitoring: MonitoringConfig = Field(default_factory=MonitoringConfig)

    model_config = SettingsConfigDict(
        env_file=".env",
        case_sensitive=False
    )

5. Results and Demonstration:

System Health:

Run Command: python .\src\travel_planner\main.py health

Streamlit App: (Production environment)

Run Command: python .\src\travel_planner\main.py streamlit

Gradio App: (Development Environment)

Run Command: python .\src\travel_planner\main.py gradio

6. Impact

The Multi-Agent Travel Planner demonstrates how agent-based systems combined with LLM orchestration can significantly improve the travel planning experience. Its impact extends across multiple domains:

• For Travelers: Provides a stress-free, personalized trip planning process that consolidates research, budgeting, and bookings into one workflow.
• For Travel Agencies: Offers scalable automation, reducing manual work and enabling agents to focus on premium, customer-centric services.
• For Developers and Researchers: Serves as a reference implementation for production-grade multi-agent systems, integrating semantic search, real-time APIs, and robust testing.
• For Education: Functions as a practical case study in AI-driven system design, useful for teaching LLM-based multi-agent architectures.

7. Challenges and Future Work

While the system is production-ready, several challenges remain that open pathways for future work:

Challenges

• API Reliability: External data sources (e.g., weather, booking) may occasionally fail or provide inconsistent responses.
• Scalability: Although the system handles 100+ requests per minute, scaling to enterprise-level demand requires further optimization and distributed deployment.
• Data Quality: Semantic retrieval depends on the freshness and quality of indexed travel data. Outdated or sparse sources may impact accuracy.
• Cost Control: Reliance on LLMs introduces operational costs that need optimization (e.g., via caching, prompt engineering, or hybrid models).

Future Work

• Expanded Integrations: Adding direct booking APIs (flights, hotels, activities) for seamless reservations.
• Personalization: Incorporating user profiles and past travel history to generate even more tailored recommendations.
• Multimodal Inputs: Enabling voice and image-based trip planning (e.g., uploading a picture of a landmark as input).
• Offline/Hybrid Mode: Supporting local semantic search to reduce dependency on external APIs and improve privacy.
• Adaptive Optimization: Leveraging reinforcement learning to refine itineraries and budgets based on user feedback.

8. Conclusion

The Multi-Agent Travel Planner shows the power of combining specialized agents, semantic search, and real-time tools into a cohesive system. By automating the traditionally fragmented process of researching, planning, budgeting, and booking, it provides both travelers and agencies with a scalable, reliable, and intelligent solution.

The project illustrates not just the potential of LLM-driven workflows in travel, but also establishes a framework applicable to other domains requiring multi-step decision making (e.g., healthcare scheduling, event management, or financial planning).

In summary, this work represents a step forward in human-AI collaboration, where complex, multi-stage tasks are streamlined into actionable, user-friendly outputs.

9. License

This project is licensed under the MIT License.

For more details, see the LICENSE file.
