KnowBridge — RAG-Powered Knowledge Assistant

Transform your documents into an intelligent knowledge assistant.

1. Introduction

1.1 Background and Motivation

Large Language Models (LLMs) can produce fluent answers, but in knowledge-work settings (PMO, HR, operations) fluency is not enough—answers must be traceable to internal documents such as onboarding checklists, offboarding procedures, and timesheet policies. Without grounding, an assistant may:

• Hallucinate steps that don’t exist in the organization’s process
• Mix policies across different clients/projects
• Provide confident but unverifiable guidance

This project implements a Retrieval-Augmented Generation (RAG) assistant called KnowBridge that answers user questions using only the indexed internal documents (currently .md and .docx). The system is designed to prioritize traceability and practical deployment: persistent storage, incremental re-indexing, and session-based chat history.

1.2 Problem Statement

General-purpose LLMs are not reliable when asked detailed procedural questions. They can:

• Invent missing details
• “Fill gaps” with assumptions
• Blend unrelated content

The core problem is the absence of source-bounded reasoning: the model must be forced to answer from retrieved context, not from prior training knowledge.

1.3 Objectives

• Build a document-grounded knowledge assistant
• Enforce retrieval-before-generation (RAG)
• Maintain traceability to source documents (by source name)
• Persist the vector index to avoid re-embedding on every run
• Support incremental indexing (skip unchanged docs, re-index only updated)
• Provide a usable UI for uploading knowledge base files and chatting
• Persist chat history per user/session and support long-running conversations

1.4 Scope

• Document type: Markdown (.md) and Word (.docx) knowledge files
• Knowledge base: multiple documents (e.g., onboarding, offboarding, timesheet)
• Interaction: Web UI (Gradio)
• Storage: persistent ChromaDB vector store + SQLite chat history
• LLM provider: Groq via LangChain

---

2. System Architecture

2.1 Architectural Overview

KnowBridge uses a modular pipeline that separates:

1. Document ingestion and indexing
2. Vector storage and semantic retrieval
3. Prompt construction and grounded generation
4. Conversation memory (persistence + summarization)
5. Web interface for uploads and chat

This separation makes the system maintainable and easy to extend.

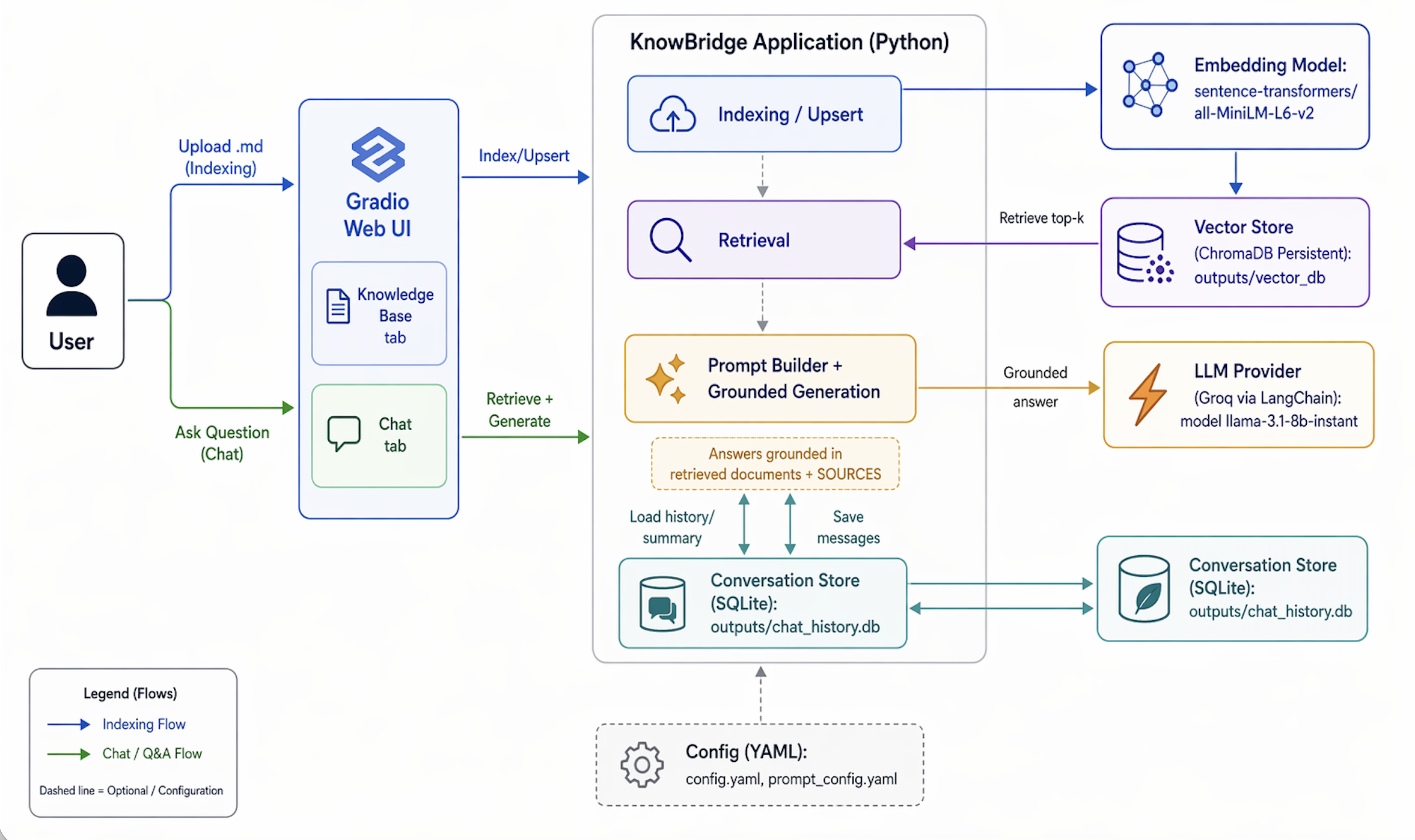

2.2 High-Level Architecture (HLD)

2.3 Solution Screenshots

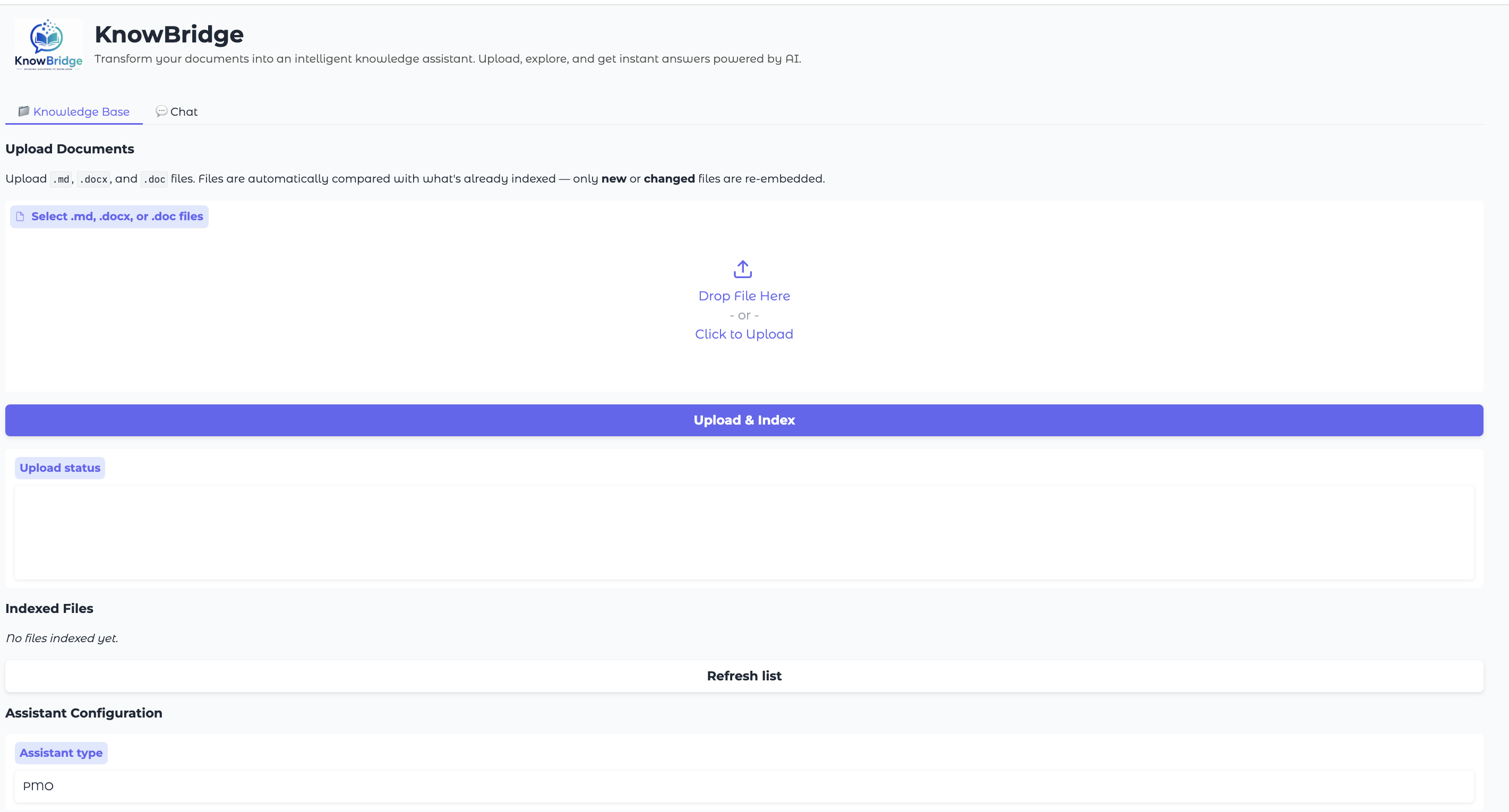

Web UI — Knowledge Base (Upload & Index)

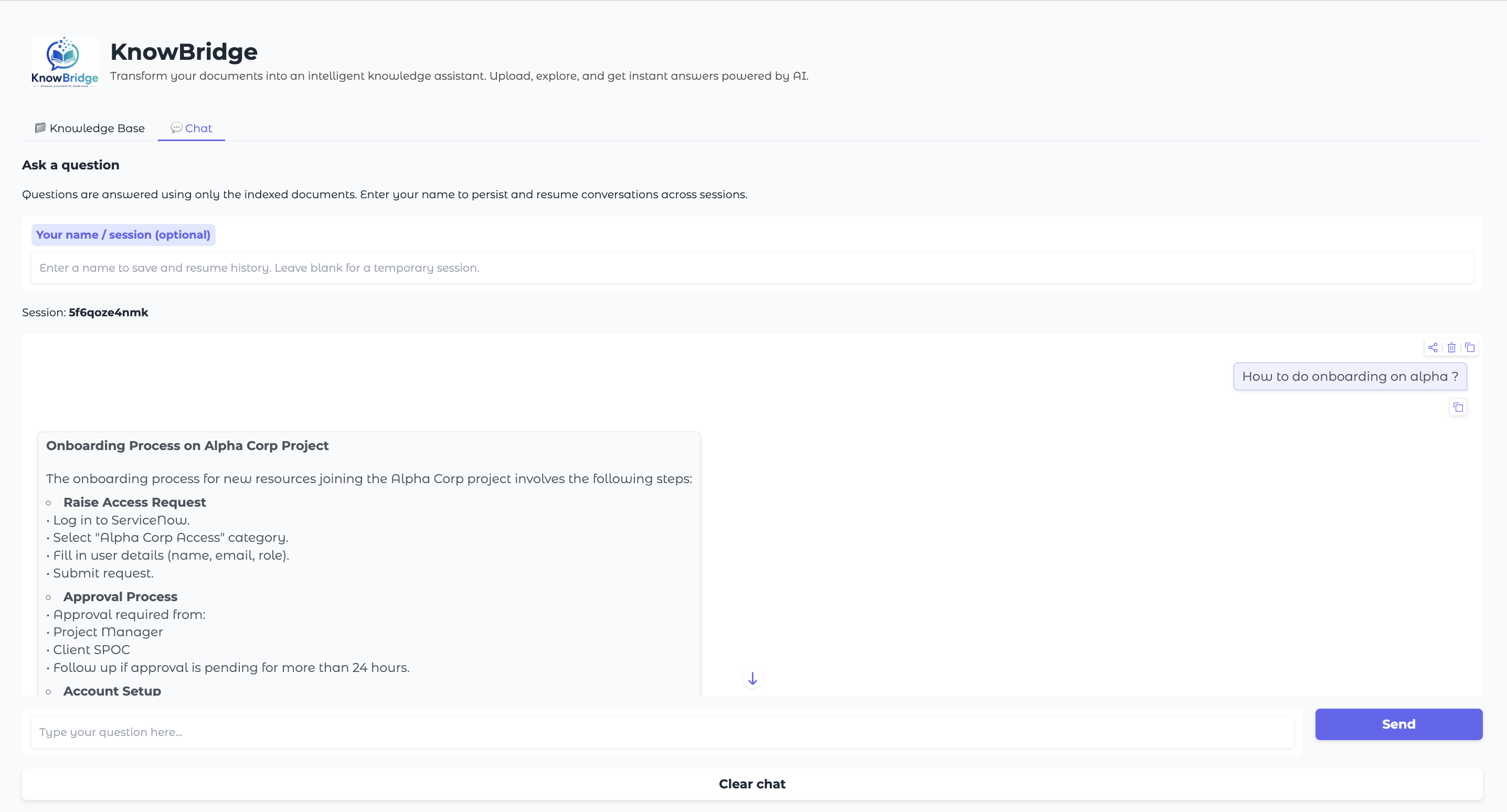

Web UI — Chat (Grounded Answer + Sources)

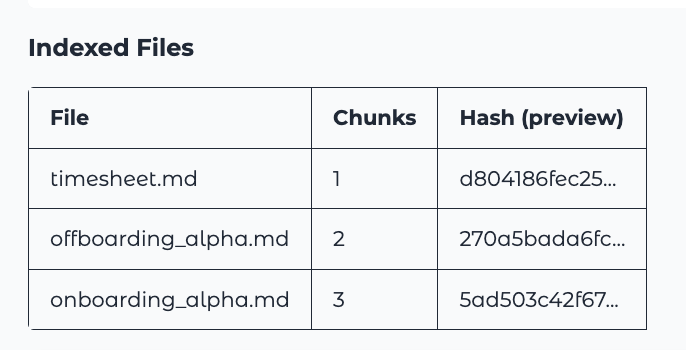

Example — Indexed Files Table / Vector DB State

2.3 Component Layers

Data Layer

• Knowledge base documents (Markdown .md and Word .docx).
• Included sample docs in rag-knowledge-assistant/data/:
  • onboarding_alpha.md
  • offboarding_alpha.md
  • timesheet.md

Processing Layer

• Incremental indexing with file hashing (SHA-256)
• Recursive character text splitting

Embedding Layer

• HuggingFace Sentence-Transformer embeddings:
  • sentence-transformers/all-MiniLM-L6-v2

Storage Layer

• ChromaDB persistent vector database (cosine space)

Retrieval Layer

• Semantic similarity search (top-k) with distance thresholding

Generation Layer

• Groq chat model via LangChain ChatGroq
• Grounding prompt enforces “documents-only” answers
• Response includes a strict SOURCES: line for traceability

Memory Layer

• SQLite persistence for chat history (per session)
• Rolling summarization of older messages to keep context compact
• Recent-window trimming for bounded prompt size

Interface Layer

• Gradio app with two tabs:
  • Knowledge Base (upload & index)
  • Chat (ask questions, persist sessions)

---

3. Methodology

3.1 Document Ingestion (Incremental Upsert)

Uploaded .md and .docx files are handled via an upsert strategy:

• added: new source → chunk + embed + store
• updated: source hash changed → delete old chunks, then re-index
• unchanged: source hash matches → skip embedding

The file hash is stored in Chroma metadata so it can be compared later.

3.2 Text Processing

Documents are processed as plain text. Each stored chunk is associated with:

• source (a source identifier derived from the uploaded filename; legacy .md sources are stored without an extension for backward compatibility)
• file_hash (SHA-256 of the full document content)

3.3 Chunking Strategy

Recursive character-based chunking using LangChain’s splitter:

• Chunk size: 1000 characters
• Overlap: 200 characters

This balances retrieval precision (smaller chunks) and context completeness (overlap).

3.4 Embedding Pipeline

Each chunk is embedded using:

• Sentence-transformer model: all-MiniLM-L6-v2

3.5 Vector Storage

Embeddings are stored in a persistent ChromaDB collection:

• Persistent directory: rag-knowledge-assistant/outputs/vector_db/
• Collection name: knowledge_base

Benefits:

• Stable, reusable index across runs
• Avoids unnecessary re-embedding
• Enables quick startup and interactive usage

3.6 Retrieval Process

At query time:

1. The user query is embedded using the same embedding model
2. ChromaDB returns top-k candidate chunks and their cosine distances
3. Results are filtered by a configurable distance threshold

Default retrieval parameters (configurable in YAML):

• n_results: 5
• threshold: 0.5 (distance; lower means closer match)

Fallback behavior: If no chunks pass the threshold, the system returns the top-k results anyway (to avoid an empty context). This is paired with strict prompting to minimize hallucination.

3.7 Generation Control (Grounded Prompt)

The RAG assistant prompt enforces:

• Answer only from provided documents
• If not answerable: respond that it’s not answerable from the documents
• Never answer from the model’s own knowledge
• Always append a final line: SOURCES: ... (or SOURCES: none)

3.8 Conversation Memory

The assistant supports long-running conversations with bounded context:

• SQLite persistence stores every message per session
• Trim window keeps only the most recent messages for each request
• Rolling summarization condenses older parts of the conversation

This allows the assistant to remain aware of the conversation while keeping prompts manageable.

---

3.9 Pipelines (Diagrams)

Document Ingestion and Vectorization Pipeline

+--------------------------+
|     Knowledge Files      |
+------------+-------------+
             |
             v
+--------------------------+
|  Upsert + Hash Checking  |
| (added/updated/unchanged)|
+------------+-------------+
             |
             v
+--------------------------+
|    Text Chunking         |
| (Recursive Splitter)     |
| size=1000, overlap=200   |
+------------+-------------+
             |
             v
+--------------------------+
| Sentence-Transformer     |
| all-MiniLM-L6-v2         |
+------------+-------------+
             |
             v
+--------------------------+
| Chroma Persistent Vector |
| DB (cosine / HNSW)       |
+--------------------------+

Query + Memory Pipeline

+--------------------+
|      User Query    |
+---------+----------+
          |
          v
+-----------------------------+
| Load SQLite Session History |
| + Rolling Summary           |
+--------------+--------------+
               |
               v
+-----------------------------+
| Embed Query + Retrieve TopK |
| threshold filtering +       |
| fallback to topK if empty   |
+--------------+--------------+
               |
               v
+-----------------------------+
| Grounded Prompt Build       |
| (docs-only + SOURCES line)  |
+--------------+--------------+
               |
               v
+-----------------------------+
| Groq LLM (ChatGroq)         |
| model: llama-3.1-8b-instant |
+--------------+--------------+
               |
               v
+-----------------------------+
| Response + SOURCES          |
| Persist to SQLite           |
+-----------------------------+

---

4. Hallucination Control Framework

4.1 Prompt Constraints

The system prompt explicitly states:

• The assistant must answer using only the retrieved documents
• The assistant must refuse when not answerable from the provided documents
• The assistant must never rely on external knowledge

4.2 Retrieval Dependency

The generation prompt is constructed around “Relevant documents + User question”, making retrieval an explicit dependency for answering.

4.3 Source Traceability

Each retrieved chunk is prefixed with [Source: <name>], and the model is required to append:

• SOURCES: <comma-separated list>

This provides transparent traceability to the document(s) used.

4.4 Safe Failure Behavior

The intended safe behavior for out-of-scope questions is a refusal:

• “The question is not answerable given the documents”

In addition, the retriever has a practical fallback (return top-k results even if none pass the threshold) to avoid empty-context generation. In practice, threshold tuning is important to balance recall vs. relevance.

---

5. Implementation Details

5.1 Technology Stack

• Python
• LangChain
• Groq LLM API (langchain_groq)
• ChromaDB (persistent vector store)
• HuggingFace embeddings (langchain_huggingface, sentence-transformers)
• Gradio (web UI)
• SQLite (chat history + summaries)
• python-docx (Word .docx text extraction)
• python-dotenv, pyyaml

5.2 Key Modules

• code/app.py: Gradio UI (upload/index + chat)
• code/document_indexer.py: chunking, embeddings, Chroma persistence, incremental upsert
• code/rag_pipeline.py: retrieval, prompt construction, LLM invocation, summarization
• code/chat_history_db.py: SQLite-backed history + rolling summaries
• code/config/config.yaml: model + vector DB parameters
• code/config/prompt_config.yaml: grounding prompt rules (including SOURCES:)

5.3 Configuration Parameters

• LLM model: llama-3.1-8b-instant
• Retrieval: n_results=5, threshold=0.5 (distance)
• Memory: trimming_window_size=6 messages in the prompt window

---

6. Limitations

• Grounding is enforced via prompting (not a cryptographic guarantee)
• Fallback-to-topK can include weakly related chunks if threshold is too strict
• No reranking model (e.g., cross-encoder) to refine retrieved results
• No formal evaluation metrics or benchmark suite included
• No native PDF ingestion in this project
• Legacy Word .doc (non-.docx) is not supported
• .docx extraction is best-effort plain-text (formatting, images, and complex layouts are not preserved)

---

7. Future Work

• Add strict “I don’t know / not answerable” fallback when retrieval confidence is low
• Add optional deterministic generation (e.g., temperature=0) for higher stability
• Add a reranker to improve precision on close or ambiguous queries
• Add chunk-to-document citations (e.g., snippet IDs / offsets) for stronger traceability
• Expand ingestion to PDF with robust parsing and normalization
• Improve .docx parsing/normalization (headers/footers, lists, section structure)
• Add automated evaluation (gold Q/A pairs + retrieval metrics)

---

8. Conclusion

KnowBridge demonstrates a practical, modular RAG architecture for correctness-sensitive internal knowledge work. By combining persistent vector search, strict grounding prompts, incremental indexing, and session-based memory persistence, the assistant can answer operational questions in a way that is more traceable and controllable than a general-purpose LLM alone.

GitHub repository: https://github.com/rajapateriya/knowbridge
