Introduction

Image classification is a fundamental problem in computer vision, with applications ranging from agriculture to healthcare. In this project, we leverage transfer learning using the pre-trained VGG16 model to classify fruit images. Transfer learning enables us to utilize the rich feature representations learned on a large dataset (ImageNet) and fine-tune them for our specific dataset with relatively few images.

Objective

To build an accurate and robust deep learning model that can classify fruit images into multiple categories by fine-tuning the VGG16 architecture.

Tools and Frameworks

Language: Python 3.x

Frameworks: TensorFlow & Keras

Libraries: NumPy, Matplotlib, Scikit-learn, Scipy

Model: VGG16

Dataset: Fruits 360 (organized into train, validation, and test folders)

Dataset Preparation

The Fruits 360 dataset includes hundreds of fruit categories with images in separate folders. We split the dataset into:

Training Set: Used for model learning with data augmentation.

Validation Set: Used to tune hyperparameters and monitor overfitting.

Test Set: Used to evaluate final model performance.

We used ImageDataGenerator with augmentation for the training set and simple rescaling for validation and test sets.

Model Architecture

We built our model in the following steps:

1. Import the pre-trained VGG16 model without the top layers:

import os
import numpy as np
import subprocess
import zipfile
import matplotlib.pyplot as plt
from tensorflow.keras.preprocessing.image import ImageDataGenerator
from tensorflow.keras.applications import VGG16
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Dense, Flatten, Dropout, BatchNormalization
from tensorflow.keras.callbacks import ReduceLROnPlateau, EarlyStopping
from tensorflow.keras.applications import MobileNetV2
from tensorflow.keras.layers import GlobalAveragePooling2D, Dense, BatchNormalization, Dropout

base_model = VGG16(weights='imagenet', include_top=False, input_shape=(224, 224, 3))

2. Freeze all convolutional layers to retain learned features:

for layer in base_model.layers:
    layer.trainable = False

3.Add custom layers:

model = Sequential([
    base_model,
    GlobalAveragePooling2D(),
    Dense(256, activation='relu'),
    BatchNormalization(),
    Dropout(0.3),
    Dense(train_generator.num_classes, activation='softmax')
])

Compilation and Training

We compiled the model using:

model.compile(loss='categorical_crossentropy', optimizer='adam', metrics=['accuracy'])

• base_model: Loads VGG16, excluding its dense layers (include_top=False).
• for layer in base_model.layers: Freezes VGG16 layers to retain pre-trained weights.
• Custom layers: Flatten the output, then add dense layers with regularization (Dropout) and normalization (BatchNormalization) to enhance learning.
• categorical_crossentropy: Used because this is a multi-class classification task.
• adam: Adaptive learning rate optimizer that helps in faster convergence.
• metrics=['accuracy']: Tracks model accuracy.

Train the model with early stopping and learning rate scheduling

Train the model, using callbacks to monitor the validation loss and adjust the learning rate or stop early to prevent overfitting.

import tensorflow as tf
from tensorflow.keras.mixed_precision import set_global_policy

from tensorflow.keras.callbacks import ReduceLROnPlateau, EarlyStopping
lr_scheduler = ReduceLROnPlateau(monitor='val_loss', factor=0.2, patience=2, min_lr=1e-6, verbose=1)
early_stopping = EarlyStopping(monitor='val_loss', patience=5, restore_best_weights=True)

set_global_policy('float32')

steps_per_epoch = 50
validation_steps = 25

history = model.fit(
    train_generator,
    epochs=5,
    validation_data=val_generator,
    steps_per_epoch=steps_per_epoch,
    validation_steps=validation_steps,
    callbacks=[lr_scheduler, early_stopping]
)

• ReduceLROnPlateau: Reduces learning rate when validation loss plateaus, allowing better optimization.
• EarlyStopping: Stops training when validation loss no longer improves, preventing overfitting.
• model.fit: Trains the model on the train_generator and evaluates on val_generator each epoch.

Fine-tune the model by unfreezing specific layers in VGG16

• Fine-tune by unfreezing a few layers in the VGG16 base model to allow learning on fruit-specific features.

• Fine-tuning may take excess time on a CPU-based machine.

num_layers = len(base_model.layers)
print(f"The base model has {num_layers} layers.")

for layer in base_model.layers[-5:]:
    layer.trainable = True

for layer in base_model.layers:
    if isinstance(layer, tf.keras.layers.BatchNormalization):
        layer.trainable = False

model.compile(
    loss='categorical_crossentropy',
    optimizer=tf.keras.optimizers.Adam(learning_rate=1e-5),   # Higher learning rate for faster convergence
    metrics=['accuracy']
)

history_fine = model.fit(
    train_generator,
    epochs=5,
    validation_data=val_generator,
    steps_per_epoch=steps_per_epoch,  # Reduced steps per epoch
    validation_steps=validation_steps,  # Reduced validation steps
    callbacks=[lr_scheduler, early_stopping]
)

• for layer in base_model.layers[-5:]: Unfreezes the last 5 layers to allow fine-tuning.
• Unfreezing fewer layers is faster and prevents overfitting on small datasets.
• RMSprop(learning_rate=1e-5): Optimizer with a lower learning rate to fine-tune carefully without drastic weight changes.

Evaluation

The model was evaluated on the test set:

test_loss, test_accuracy = model.evaluate(test_generator, steps=50)
print(f"Test Accuracy: {test_accuracy:.2f}")

model.evaluate(test_generator): Evaluates the model on the test set and prints accuracy, giving a final measure of model performance.

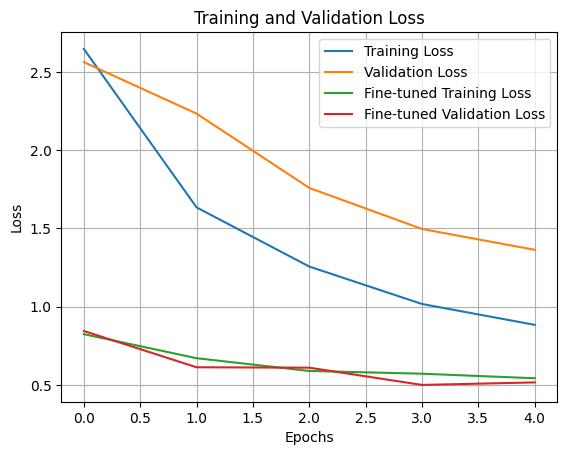

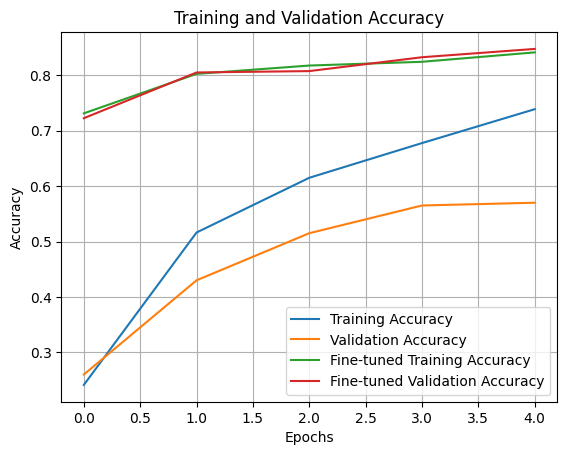

Visualize training performance with accuracy and loss curves

Plots the training and validation accuracy and loss to understand the model’s learning progress.

• plt.plot: Plots the accuracy and loss for training and validation over epochs.

• Visual comparison shows if the model is overfitting, underfitting, or learning effectively.

Sample Predictions

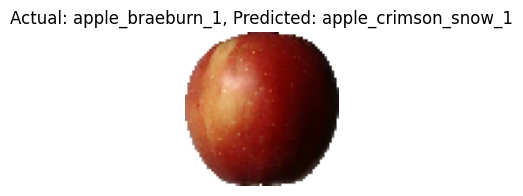

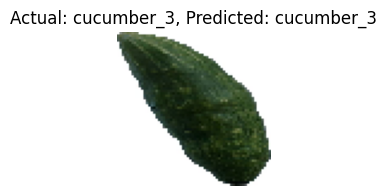

We ran the model on unseen fruit images and visualized predictions:

actual_count = Counter()
predicted_count = Counter()

def get_class_name_from_index(predicted_index, class_index_mapping):
    """Convert predicted index to class name."""
    for class_name, index in class_index_mapping.items():
        if index == predicted_index:
            return class_name
    return "Unknown"
def visualize_prediction_with_actual(img_path, class_index_mapping):

    class_name = os.path.basename(os.path.dirname(img_path))


    img = load_img(img_path, target_size=(64, 64))
    img_array = img_to_array(img) / 255.0
    img_array = np.expand_dims(img_array, axis=0)

    # Predict the class
    prediction = model.predict(img_array)
    predicted_index = np.argmax(prediction, axis=-1)[0]
    predicted_class_name = get_class_name_from_index(predicted_index, class_index_mapping)


    actual_count[class_name] += 1
    predicted_count[predicted_class_name] += 1


    plt.figure(figsize=(2, 2), dpi=100)
    plt.imshow(img)
    plt.title(f"Actual: {class_name}, Predicted: {predicted_class_name}")
    plt.axis('off')
    plt.show()
class_index_mapping = train_generator.class_indices
print("Class Index Mapping:", class_index_mapping)  # Debugging: Check the mapping

sample_images = [
    'fruits-360-original-size/fruits-360-original-size/Test/apple_braeburn_1/r0_11.jpg',
    'fruits-360-original-size/fruits-360-original-size/Test/pear_1/r0_103.jpg',
    'fruits-360-original-size/fruits-360-original-size/Test/cucumber_3/r0_103.jpg',
]

for img_path in sample_images:
    visualize_prediction_with_actual(img_path, class_index_mapping)

• visualize_prediction: Loads an image, preprocesses it, predicts its class, and displays it.

• model.predict(img_array): Uses the trained model to make predictions on unseen images.

Common Misclassifications

We noticed some incorrect predictions due to:

Class Similarity: Apples vs. Red Delicious Apples

Imbalanced Samples: Some classes had significantly fewer training examples

Limited Training: Fine-tuning fewer layers might not capture sufficient class-specific features.

Data Augmentation Impact: Aggressive augmentations may distort key features, reducing accuracy for specific images.

Conclusion

Through this project, we successfully built a fruit classification model using VGG16 and transfer learning. The model demonstrated strong generalization on unseen images with minimal training data. This project highlights the power of transfer learning in efficiently building computer vision solutions.

Resources

Dataset: Fruits 360 on Kaggle
