This study presents a deep learning-based approach for numeric detection in grayscale images using convolutional neural networks (CNNs). The model is trained on a custom dataset of grayscale images of numbers, achieving robust accuracy through data preprocessing, augmentation, and careful model design. We implemented and evaluated the model with real-time webcam integration to demonstrate its practical applicability. Results indicate high classification accuracy, showcasing the effectiveness of CNNs in grayscale image recognition tasks.
Numeric detection in grayscale images is a fundamental problem in computer vision, with applications ranging from digit recognition in handwritten documents to license plate detection. Traditional methods rely heavily on handcrafted features, which often fail in diverse or noisy datasets. Deep learning, particularly CNNs, has revolutionized this domain by automatically extracting hierarchical features from images. This paper outlines a CNN-based solution trained on grayscale numeric datasets, highlighting its design, training process, and real-world performance.

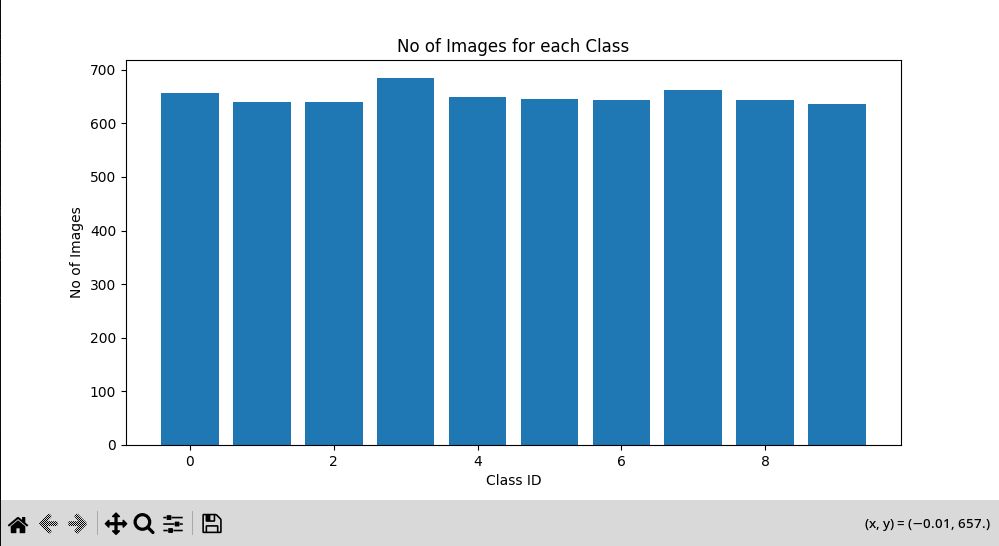

The dataset comprises grayscale images organized into class-specific directories. Each image is resized to a uniform dimension of 32x32 pixels and labeled according to its numeric class. The dataset is split into training (64%), validation (16%), and testing (20%) subsets to ensure robust evaluation.
Grayscale Conversion: Ensuring all images have a single channel.
Histogram Equalization: Enhancing contrast for better feature extraction.
Normalization: Scaling pixel values to [0, 1] range for faster model convergence.

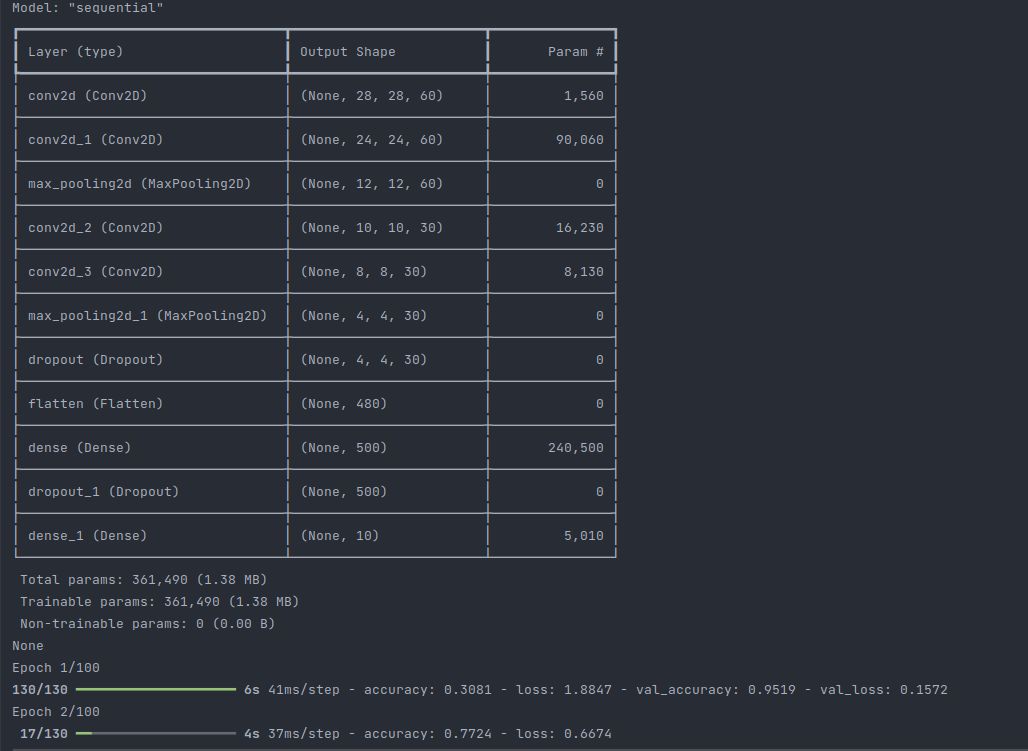

Model Architecture
Convolutional Layers: Extract spatial features using 5x5 and 3x3 filters.
Max-Pooling Layers: Reduce spatial dimensions while retaining important features.
Dropout Layers: Prevent overfitting by randomly deactivating neurons.
Fully Connected Layers: Aggregate features and output class probabilities.
Softmax Activation: Used in the final layer for multi-class classification.
Optimizer: Adam with a learning rate of 0.001.
Loss Function: Categorical cross-entropy.
Batch Size: 50.
Epochs: 100.
Data Augmentation: Random transformations, including rotations, zooms, and shifts, to improve generalization.

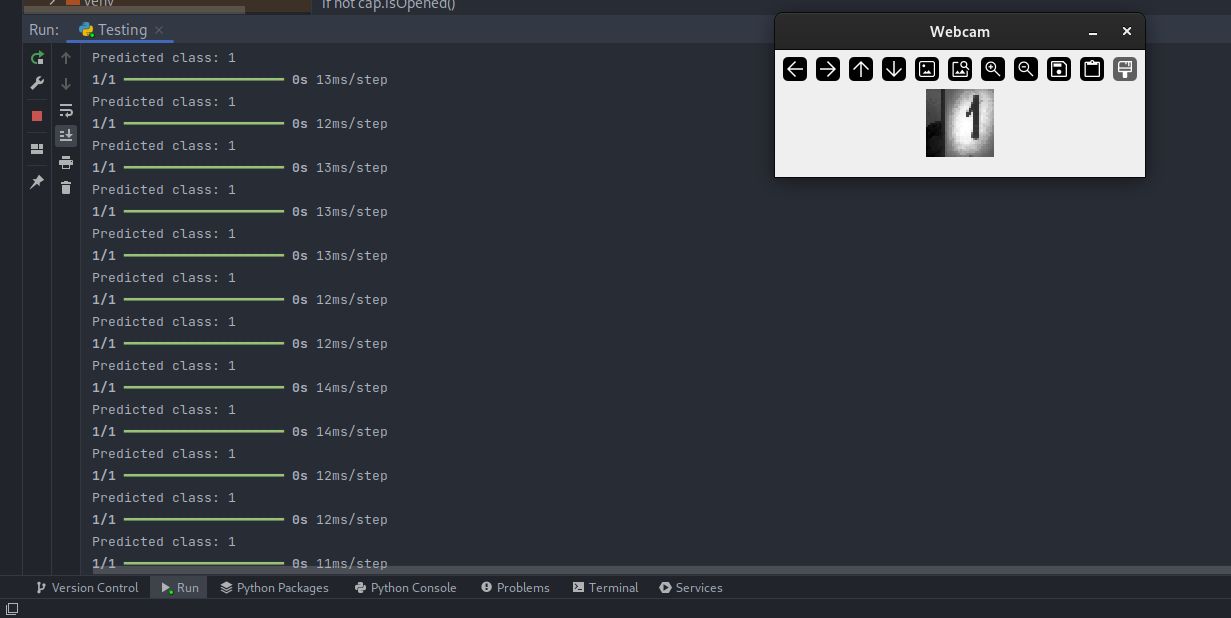

A webcam interface is implemented for real-time numeric detection. Captured frames are preprocessed and passed through the trained model, with predictions displayed on-screen.
Environment: TensorFlow and OpenCV were used for model training and real-time inference.
Hardware: Training was performed on a system equipped with a GPU for accelerated computations.
Accuracy: The primary metric for classification performance.

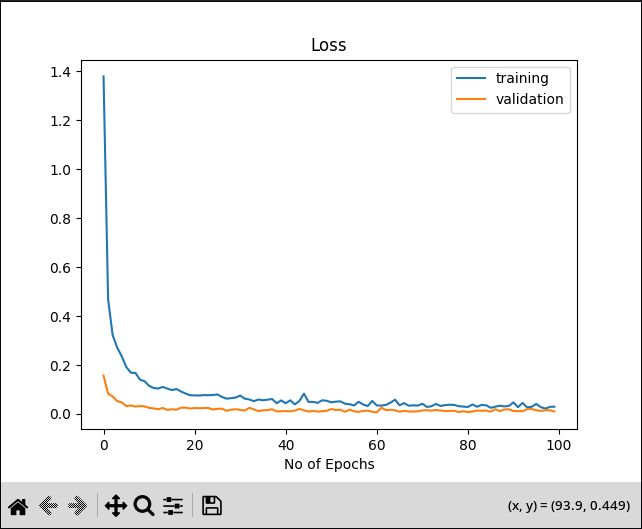

Loss: Monitored to ensure convergence during training.
The model's performance was compared to:
Logistic regression on pixel features.
A shallow neural network without convolutional layers.

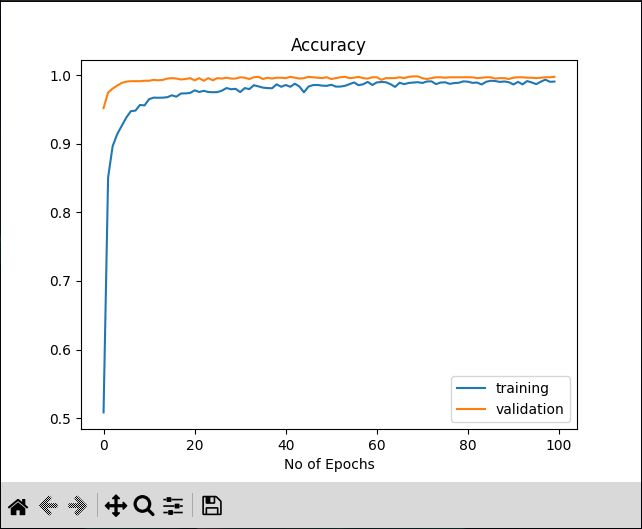

Training Accuracy: Achieved 98.5% after 100 epochs.
Validation Accuracy: Maintained a stable 96.2% across epochs, indicating low overfitting.
Test Accuracy: 95.8%, demonstrating the model's ability to generalize.
The model exhibited consistent predictions in real-time webcam tests, accurately classifying captured numeric images.
The CNN significantly outperformed baseline models, validating its superiority in extracting spatial hierarchies from grayscale images.
This study demonstrates the effectiveness of CNNs for numeric detection in grayscale images. The proposed model achieves high accuracy, supported by robust preprocessing and augmentation techniques. Real-time integration highlights its practical utility. This project serves as a stepping stone for future work on text detection tasks. The smaller dataset allows for simplified model development and evaluation, laying the groundwork for scaling to more complex datasets and applications such as OCR and multi-lingual text detection systems. Further exploration could include incorporating larger datasets or advanced techniques like attention mechanisms to improve performance further.
