Cybersecurity Monitor: A Multi-Agent SOC Analysis System Using MCP and LangGraph

Abstract

Security Operations Centers (SOCs) rely on accurate interpretation of system signals, logs, and operational context to detect potential threats. Traditional single-agent LLM workflows struggle with tool grounding, evidence separation, and reasoning reliability.

This project presents Cybersecurity Monitor, a modular multi-agent system that simulates a SOC-style analysis pipeline. Multiple agents collaborate through a structured orchestration layer to collect evidence, analyze security signals, and generate a grounded final security report. The system uses Model Context Protocol (MCP) for tool integration, LangGraph for agent orchestration, and DeepEval for formal evaluation of reasoning quality.

---

Problem Motivation

Security analysis is inherently multi-step and role-driven:

• Evidence collection must be separated from interpretation
• Analysis should avoid inventing events when data is incomplete
• Final reports must clearly communicate uncertainty

Single-agent workflows often blur these boundaries, increasing hallucination risk. This project demonstrates how a multi-agent architecture with explicit role separation improves reliability, transparency, and extensibility in security analysis tasks.

---

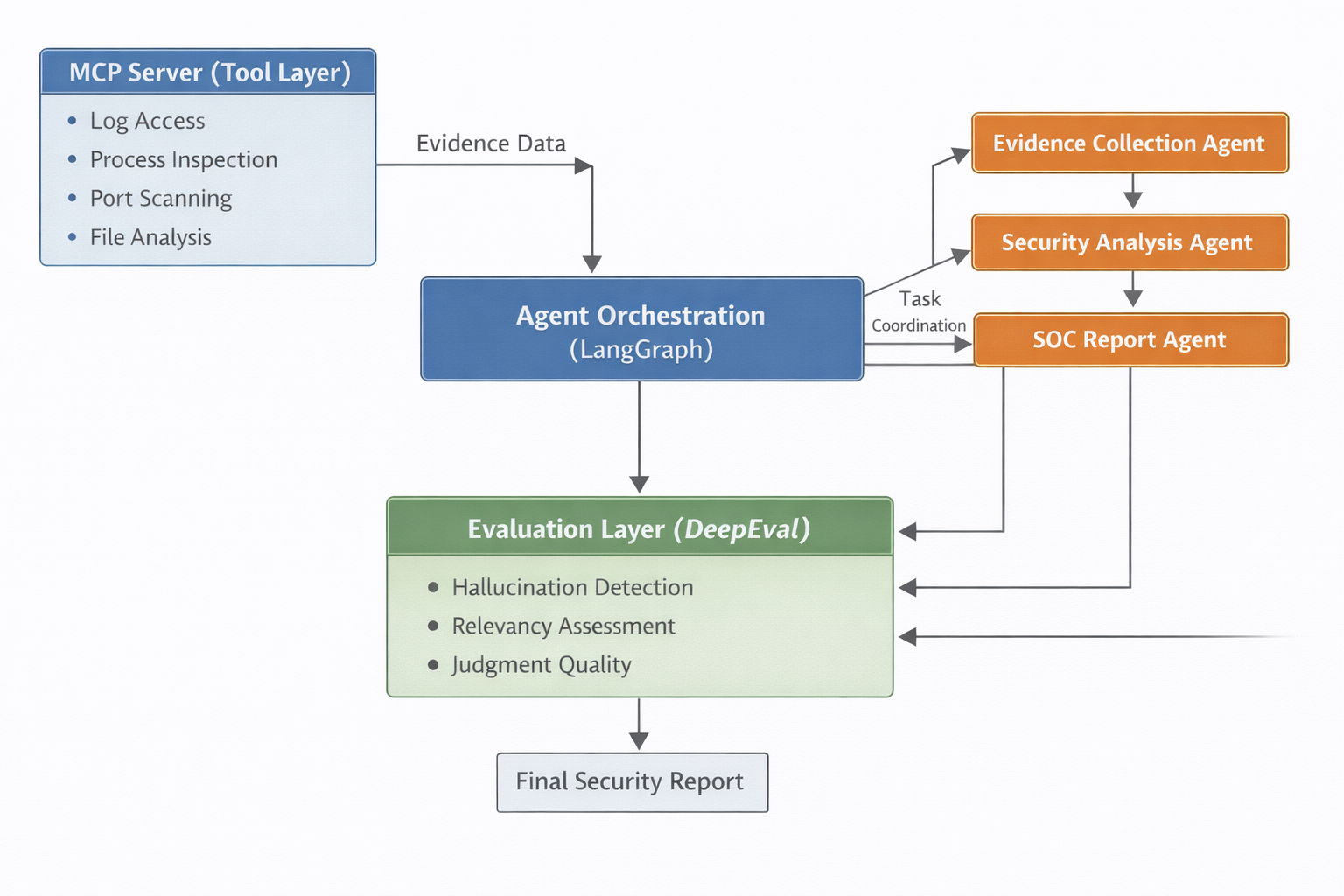

System Overview

The Cybersecurity Monitor system is composed of four primary layers:

1. Tool Layer (MCP Server)
2. Agent Layer (Specialized SOC agents)
3. Orchestration Layer (LangGraph)
4. Evaluation Layer (DeepEval)

Each layer is loosely coupled, allowing independent extension and testing.

---

Architecture

Tool Layer – MCP Server

The MCP server exposes controlled system-level tools to agents, including:

• System log access
• Process and port inspection
• File and environment signal checks

All tools return structured outputs and act as the only source of ground truth. Agents are not allowed to reason beyond tool-provided data.

---

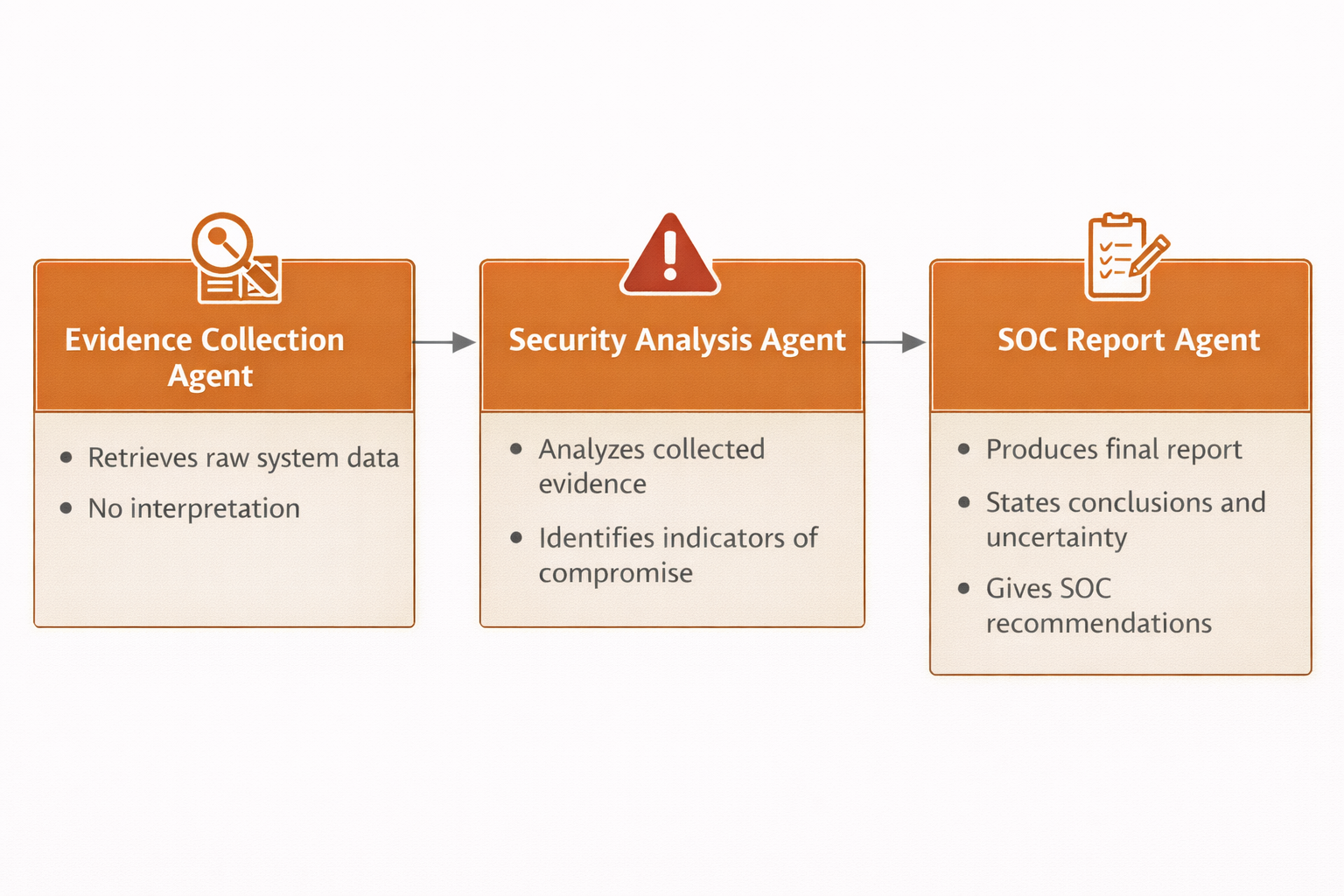

Agent Layer – SOC Agents

The system consists of at least three agents, each with a distinct role:

Evidence Collection Agent

• Calls MCP tools
• Retrieves raw system signals
• Performs no interpretation or judgment

Security Analysis Agent

• Analyzes retrieved evidence
• Identifies potential indicators of compromise
• Explicitly handles missing or insufficient data

SOC Report Agent

• Synthesizes a final security report
• States conclusions, uncertainty, and recommendations clearly
• Mimics real SOC reporting standards

This separation enforces clean reasoning boundaries and reduces hallucination.

---

Orchestration Layer – LangGraph

LangGraph is used to define:

• Agent nodes
• Execution order
• Shared state between agents
• Deterministic multi-step workflows

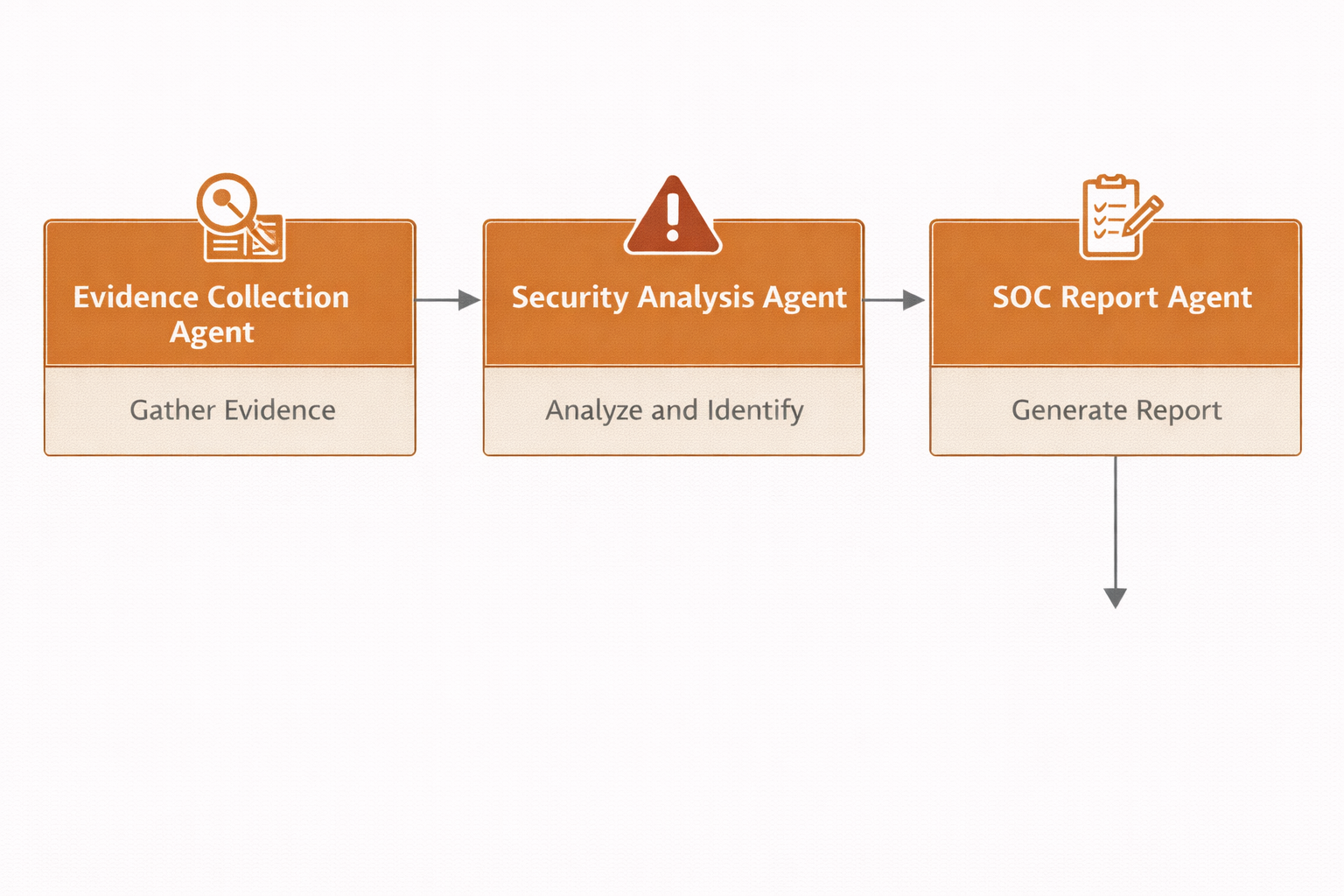

Typical execution flow:

Evidence Collection → Security Analysis → SOC Report

This orchestration design allows easy insertion of:

• Additional agents
• Human-in-the-loop review steps
• Parallel or branching workflows

---

Tool Integration via MCP

The system integrates multiple tools using the Model Context Protocol:

• Log scanning tools
• Process and port inspection
• File integrity and environment checks

Each tool:

• Is invoked explicitly by agents
• Produces structured outputs
• Prevents uncontrolled model reasoning

This approach makes the system extensible and secure while maintaining strict evidence grounding.

---

Evaluation and Quality Assurance

To ensure reliable reasoning, the project includes an automated evaluation layer using DeepEval.

Metrics Used

• HallucinationMetric
  Detects fabricated or unsupported security claims

Tests are executed using pytest and invoke the full agent pipeline end-to-end.

---

Example Output

A typical system output follows SOC reporting conventions:

=== FINAL SECURITY REPORT ===

Event Analysis:
No confirmed malicious activity detected based on available system signals.

Indicators of Attack:
None identified.

Assessment:
Current evidence is insufficient to assert compromise.

Recommendations:
- Continue monitoring system logs
- Perform scheduled security scans
- Review network traffic periodically

---

Future Enhancements

The architecture is designed for incremental expansion. Planned future enhancements include:

• Integration of Nmap for active network scanning
• Metasploit for controlled vulnerability validation
• Wireshark or PCAP analysis for network-level inspection
• Human-in-the-loop validation for high-risk findings
• Continuous benchmarking against baseline agent workflows

All future tools will be added as new MCP endpoints without changes to agent logic.

---

Reproducibility and Setup

The repository includes:

• Clear setup instructions
• Environment variable management via .env and .env_example
• Fully reproducible local execution
• Automated evaluation tests

Detailed instructions are provided in setup.md and usage.md.

---

Conclusion

Cybersecurity Monitor demonstrates how multi-agent collaboration, tool grounding, and structured orchestration lead to more reliable security analysis than single-agent workflows. By combining MCP, LangGraph, and formal evaluation, this project provides a strong foundation for scalable and extensible SOC automation systems.

---
