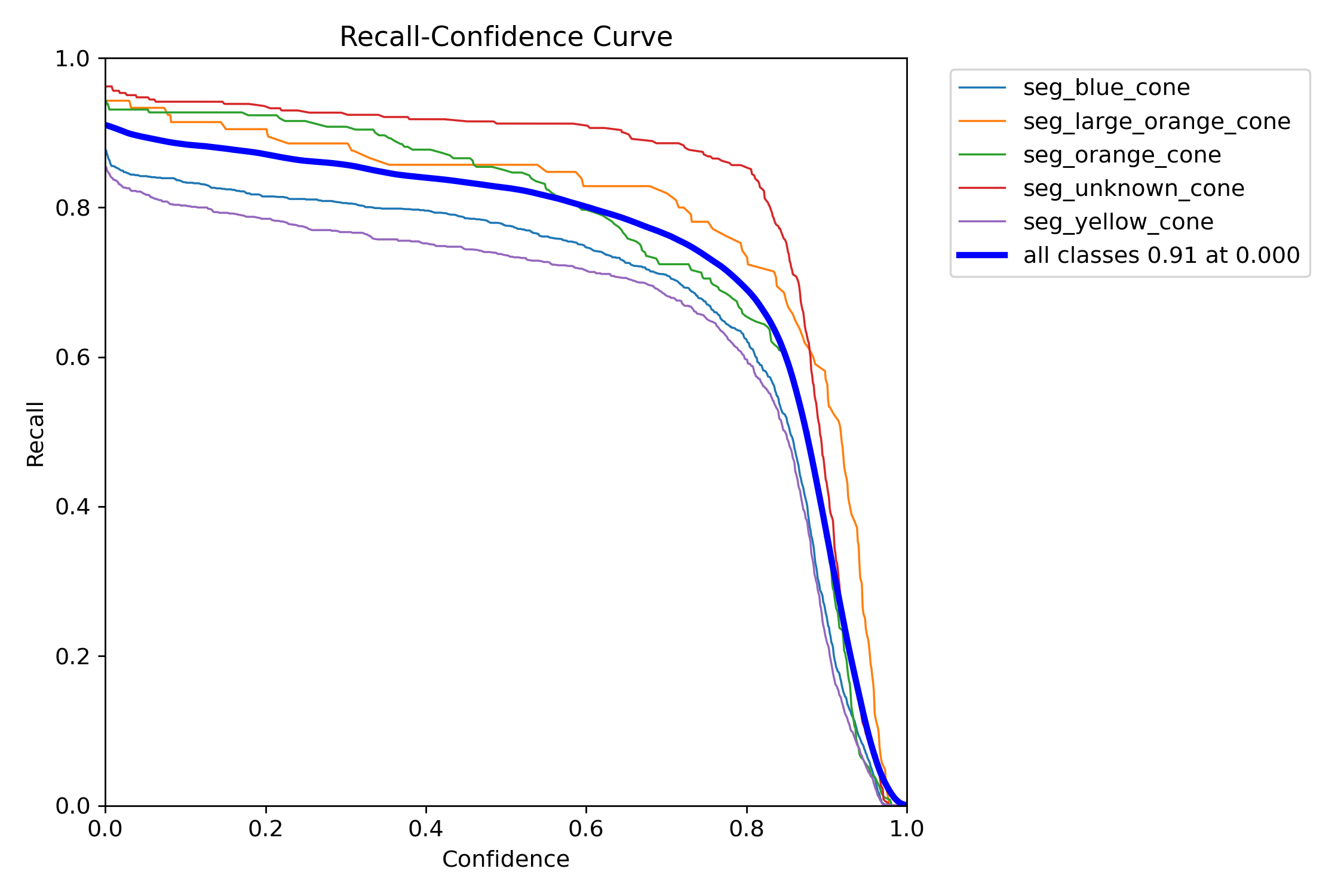

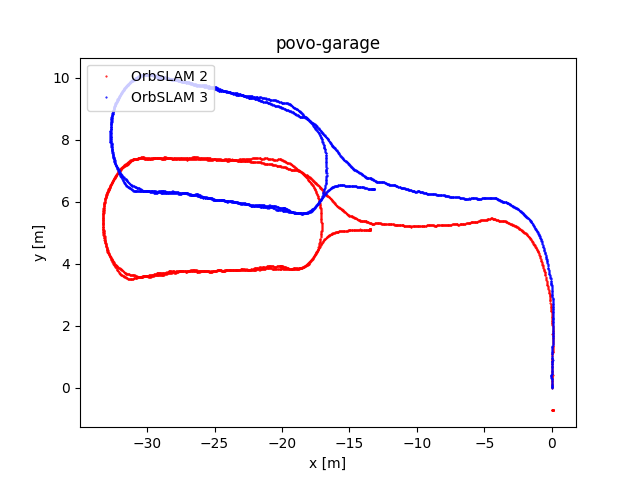

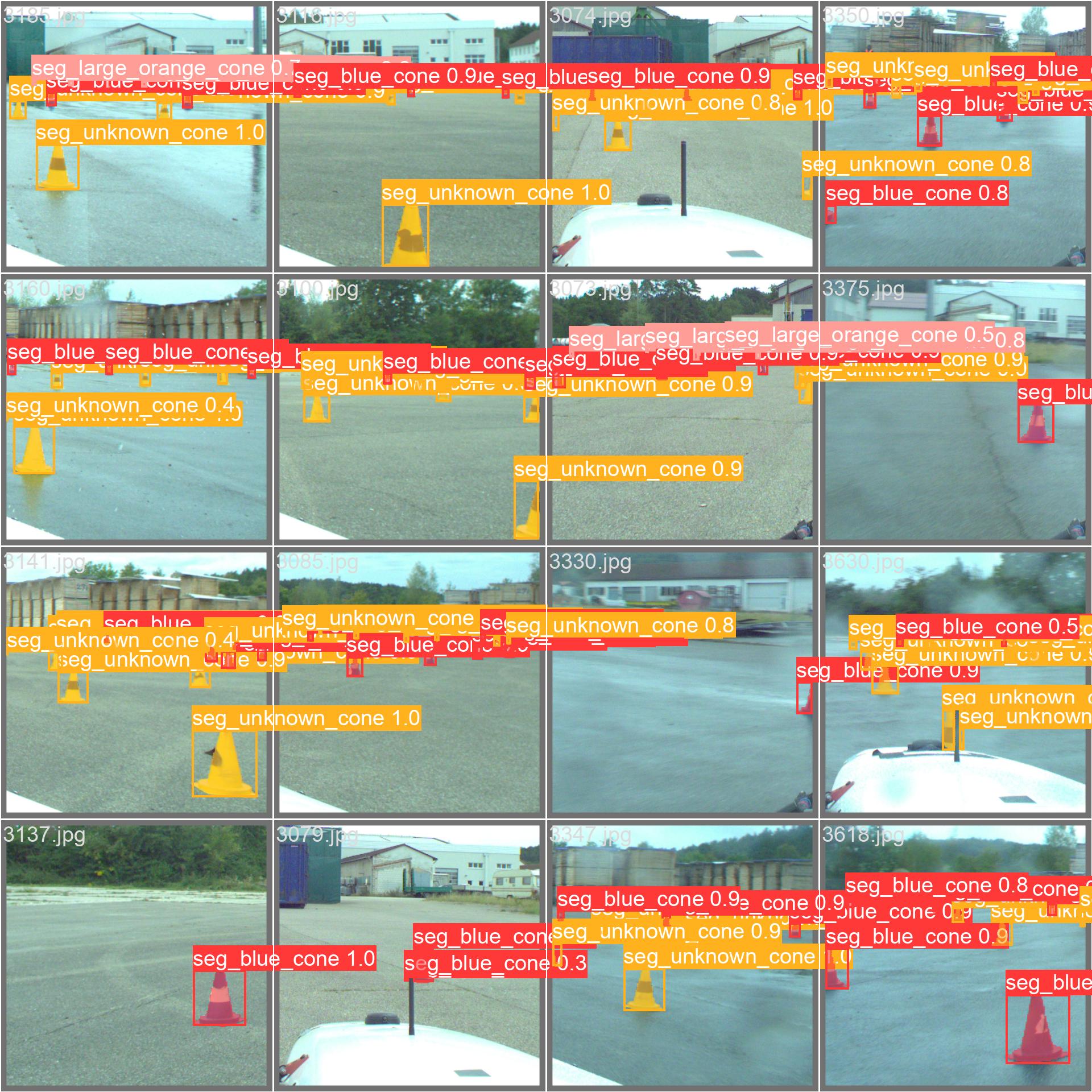

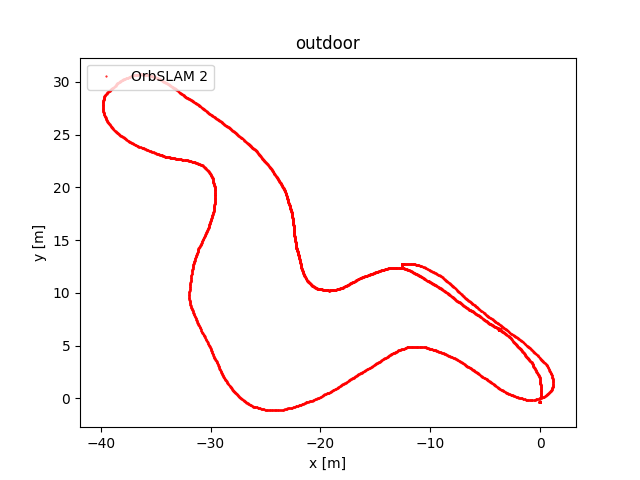

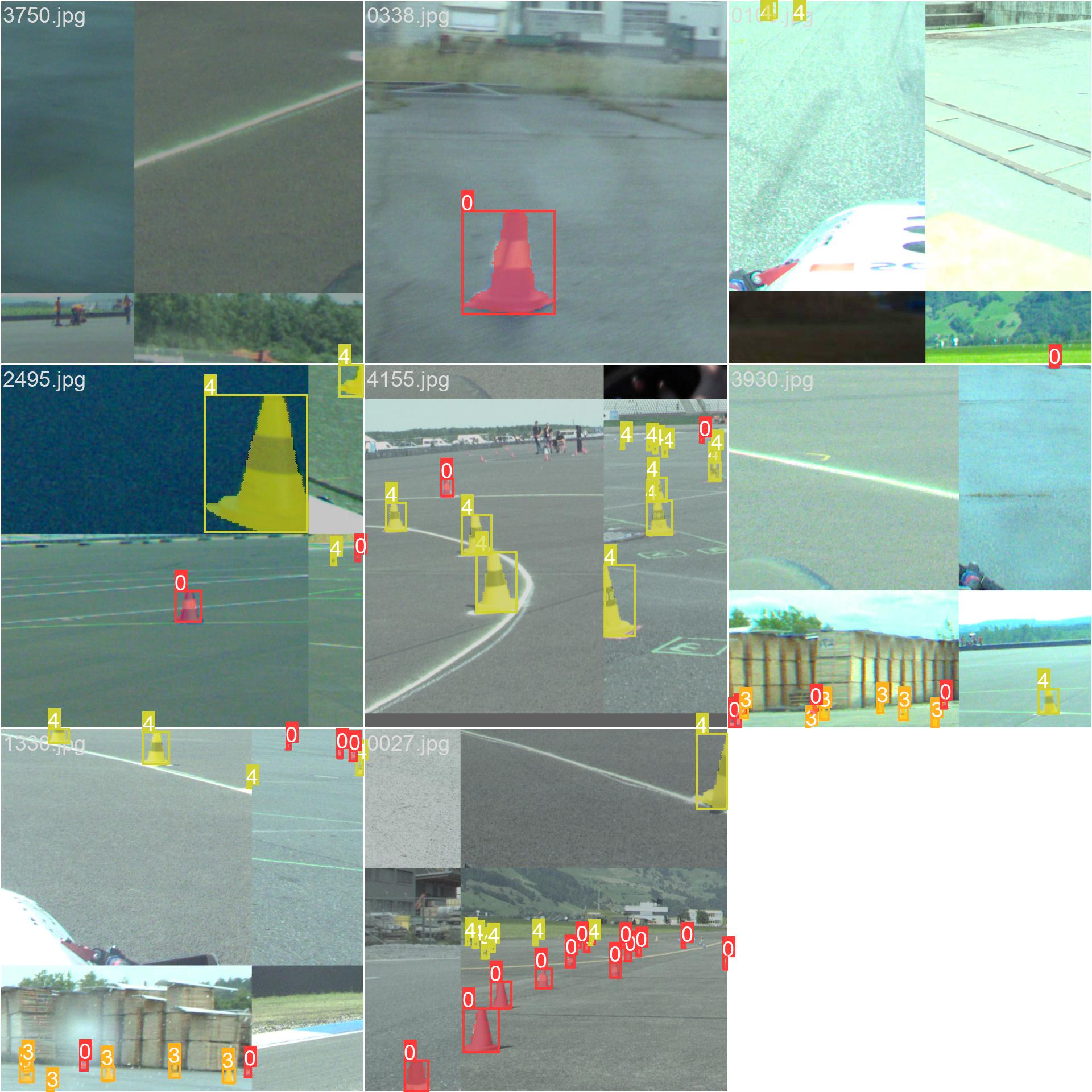

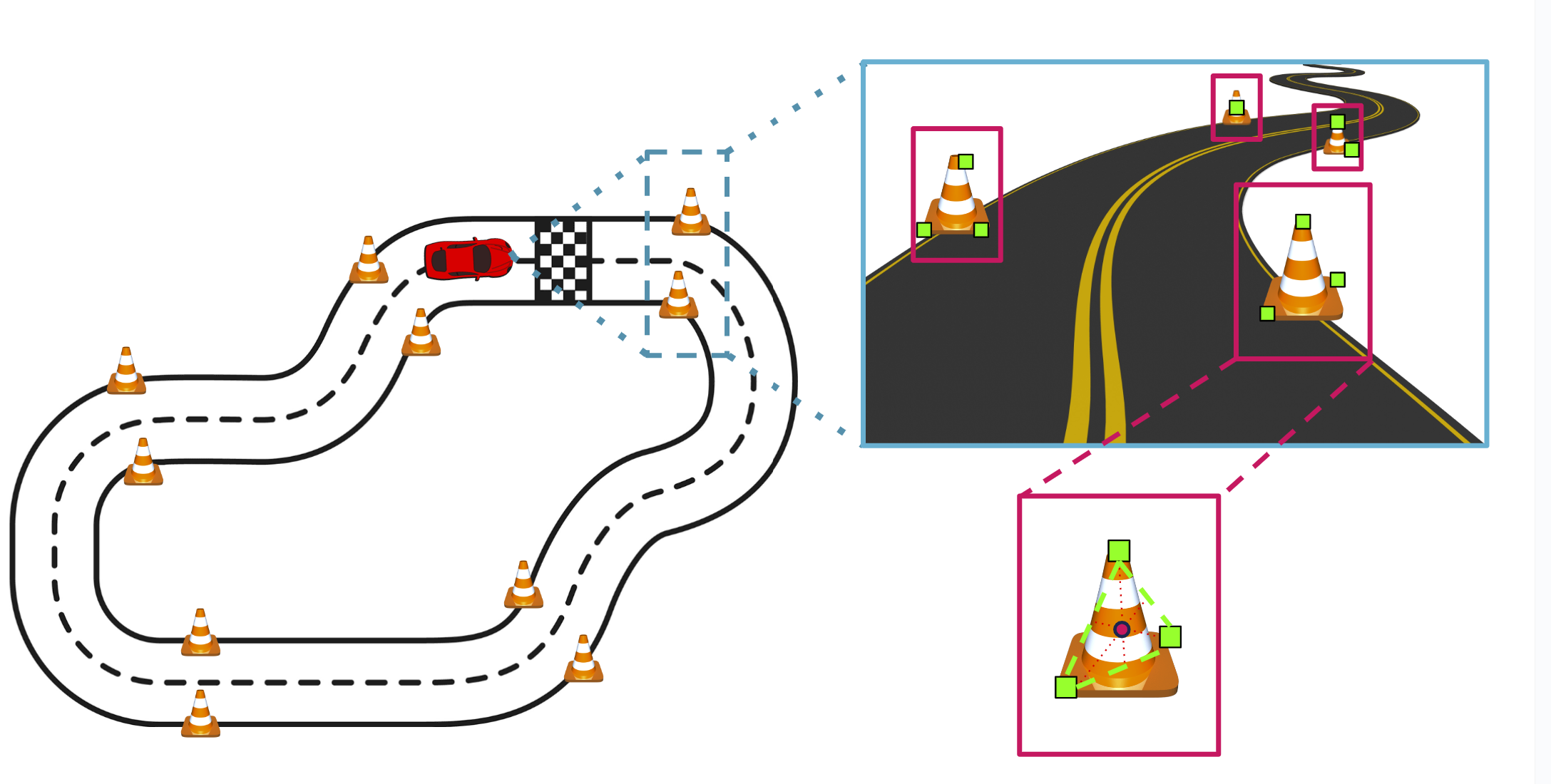

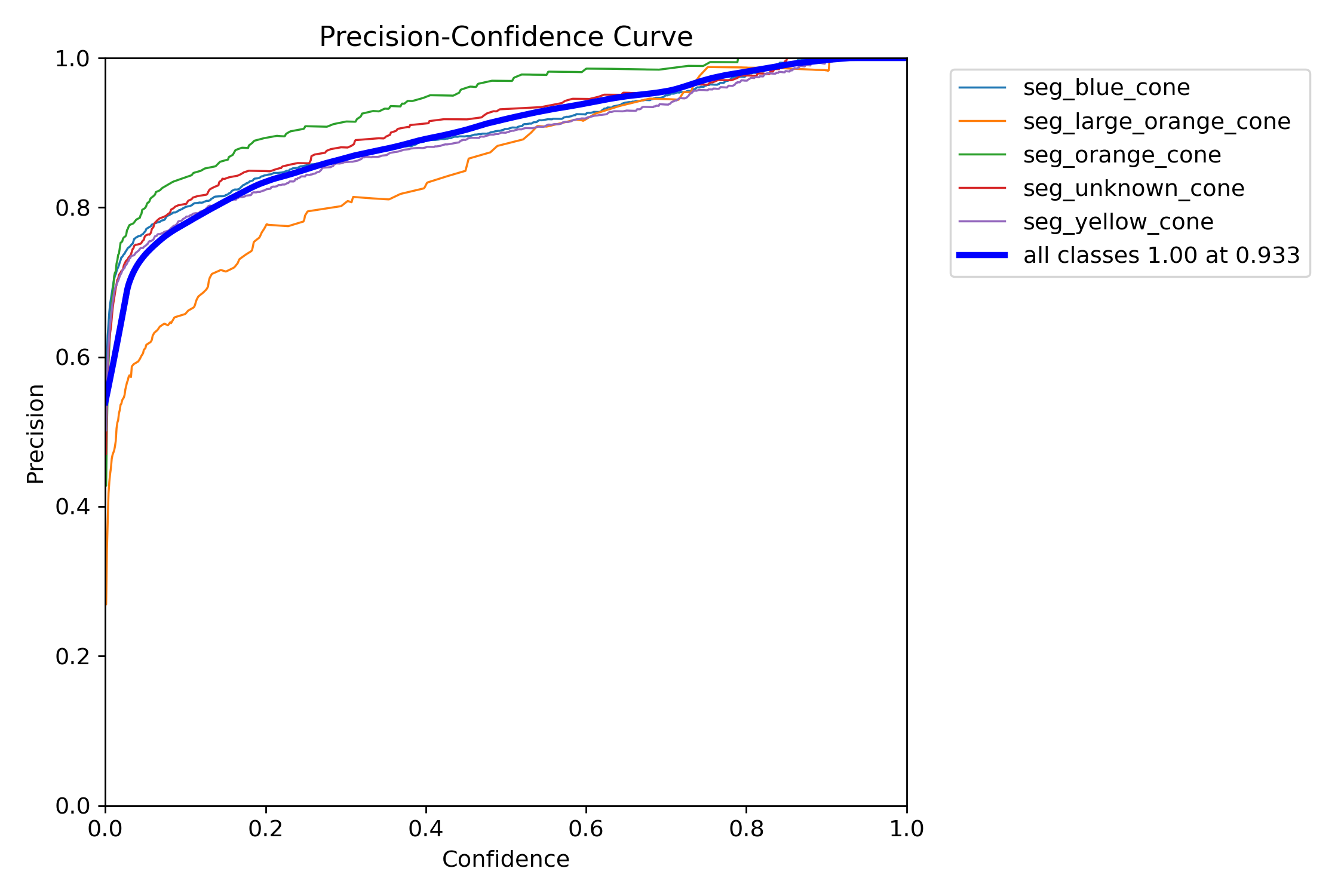

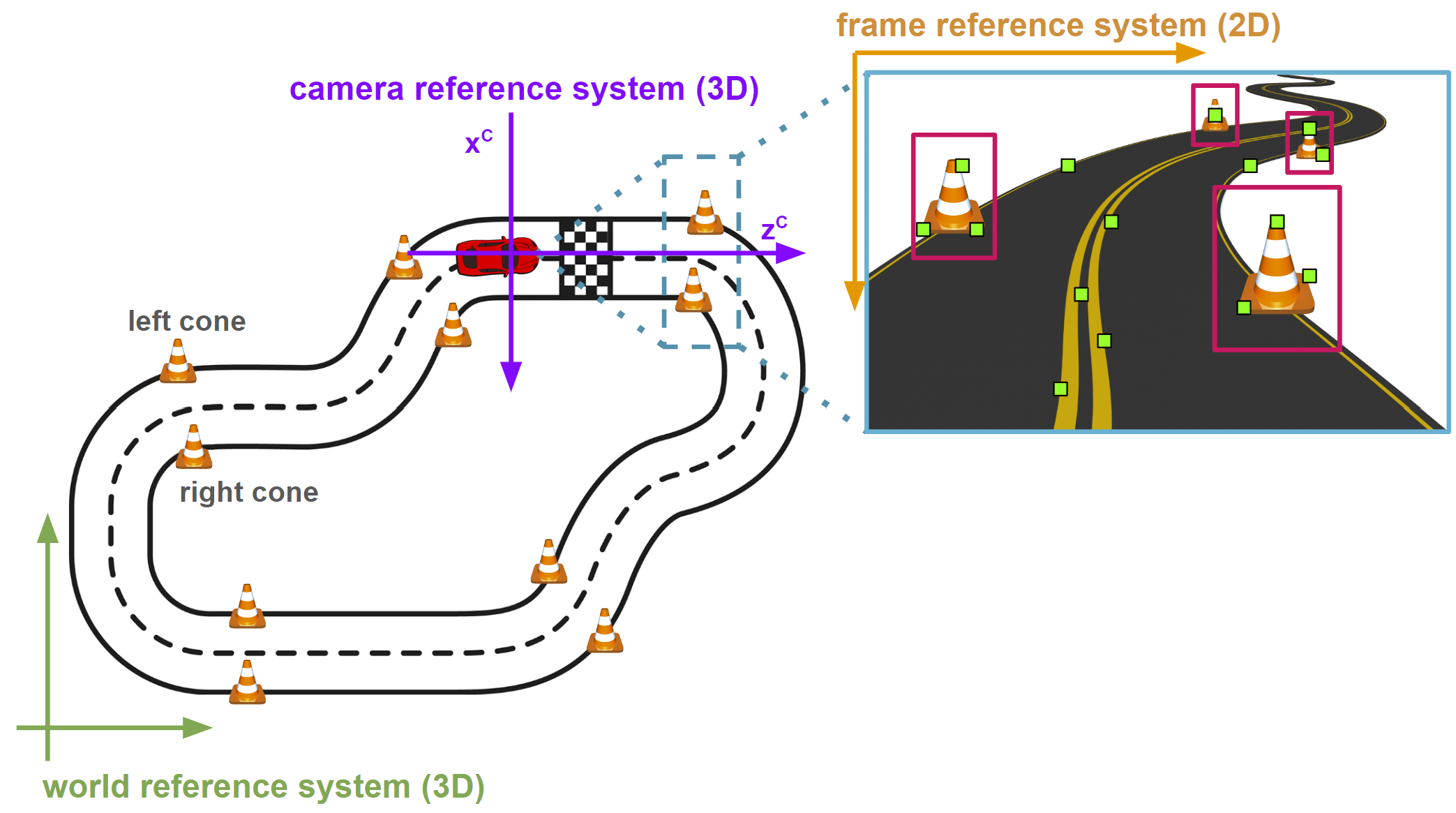

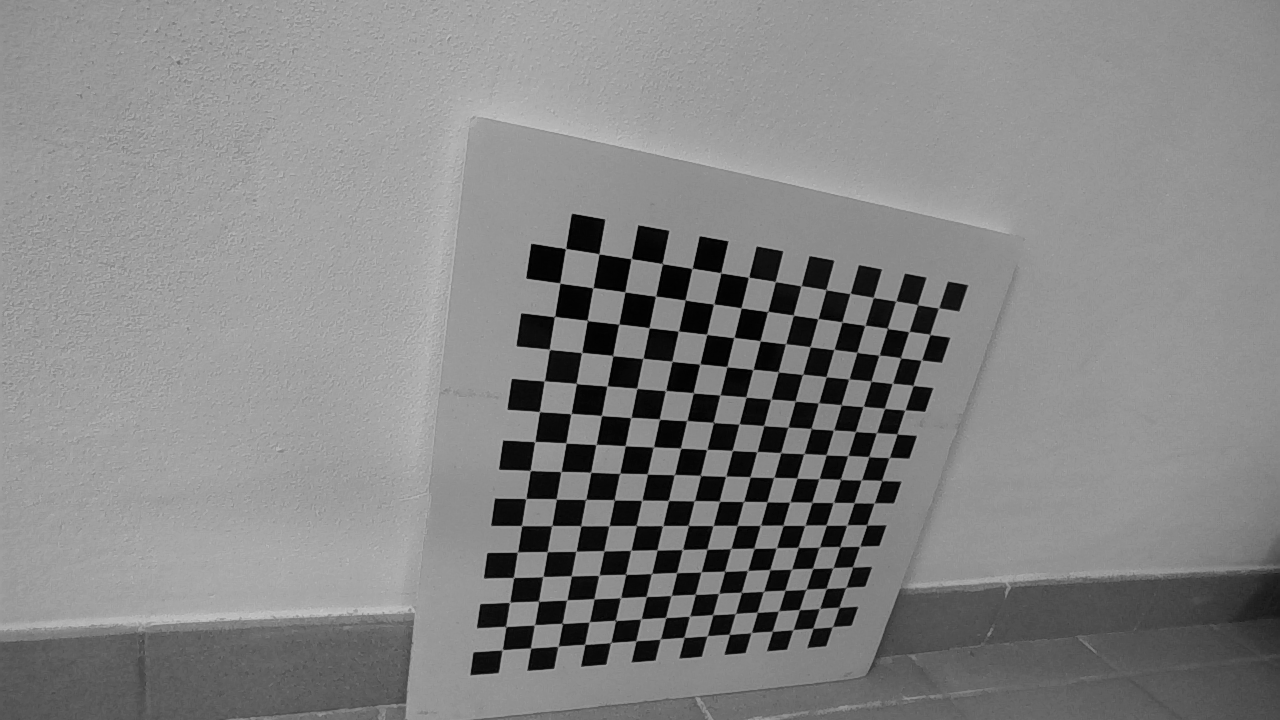

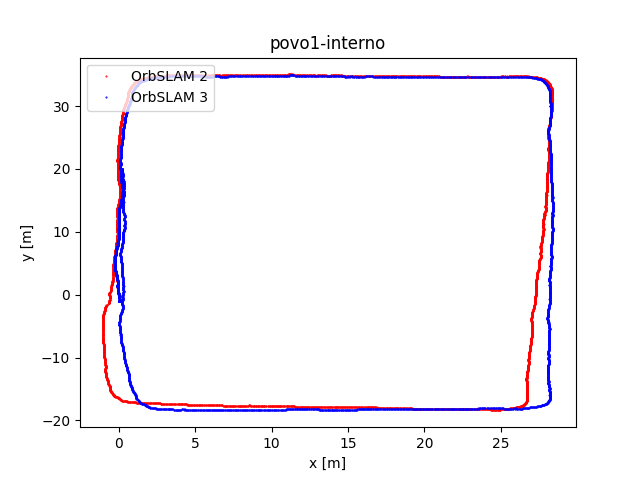

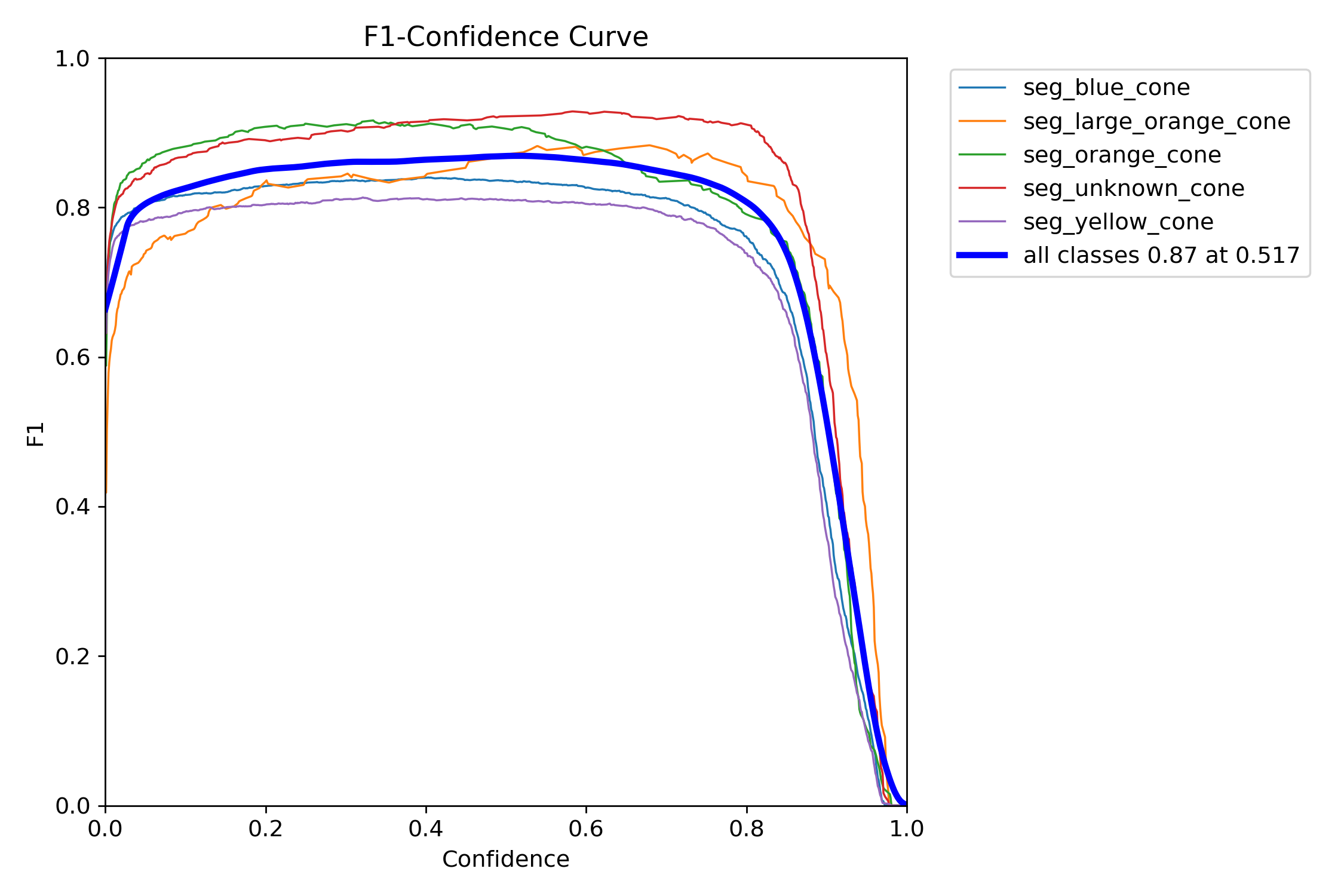

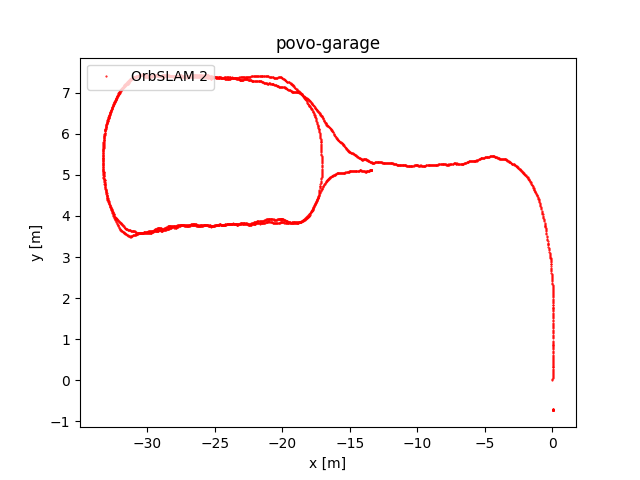

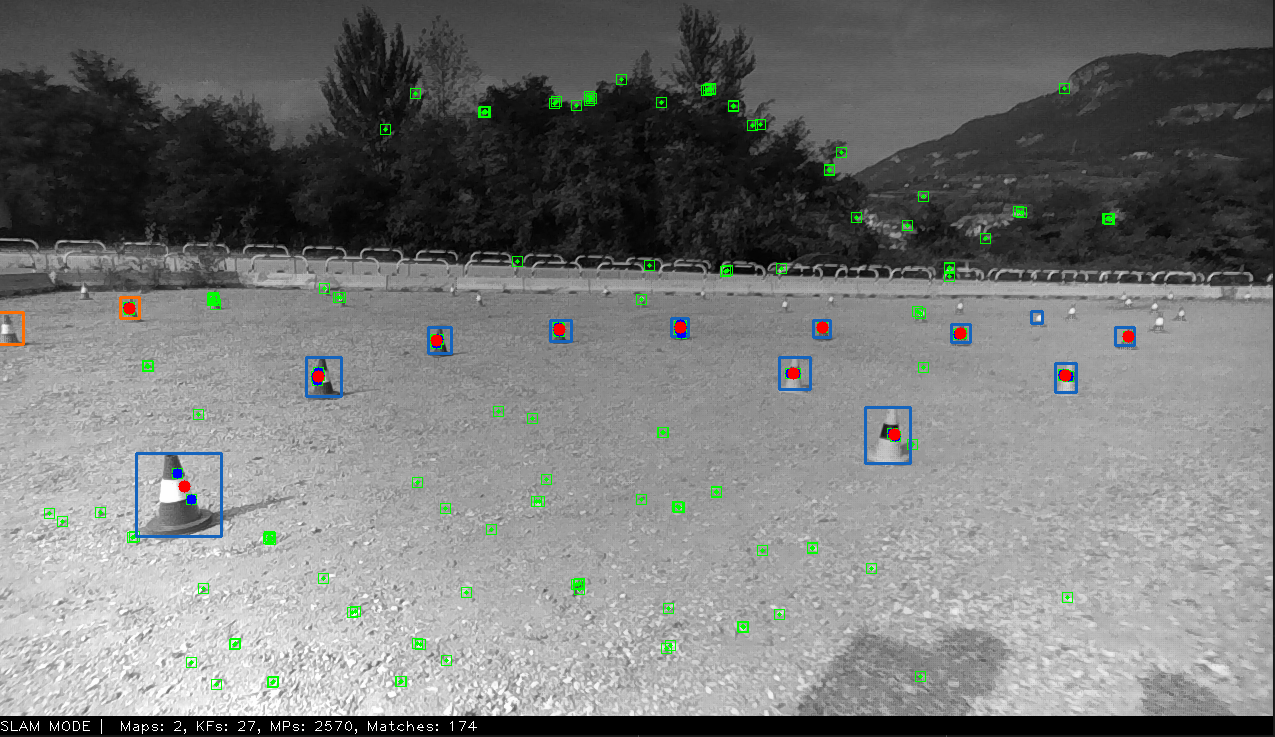

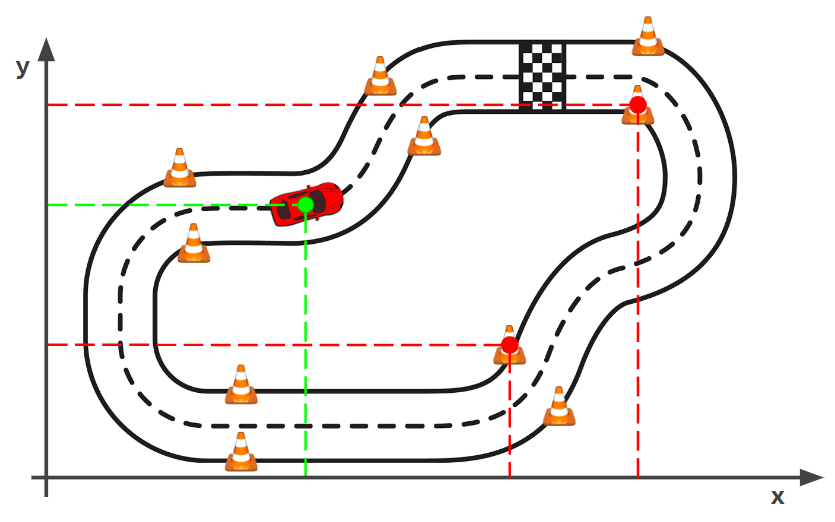

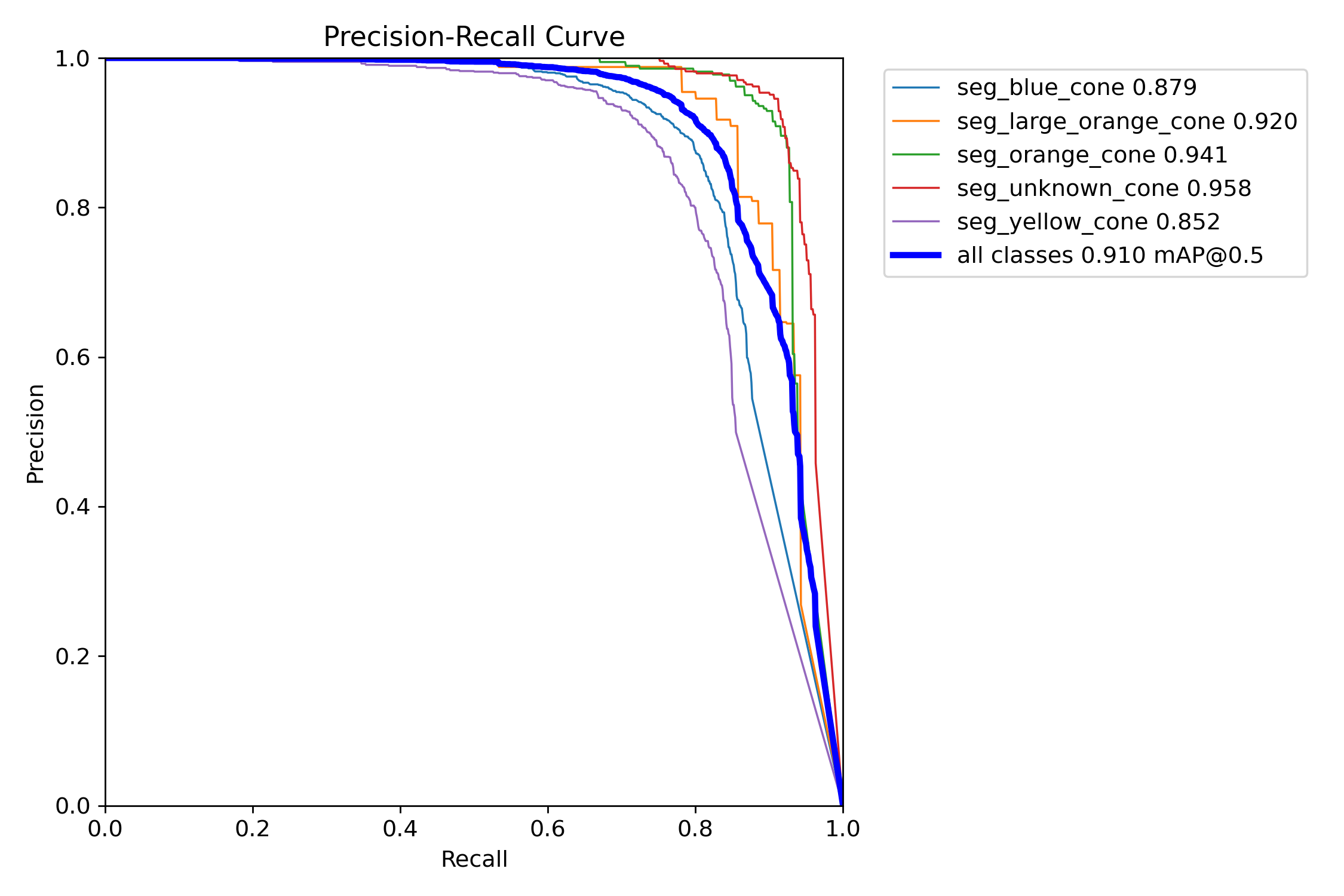

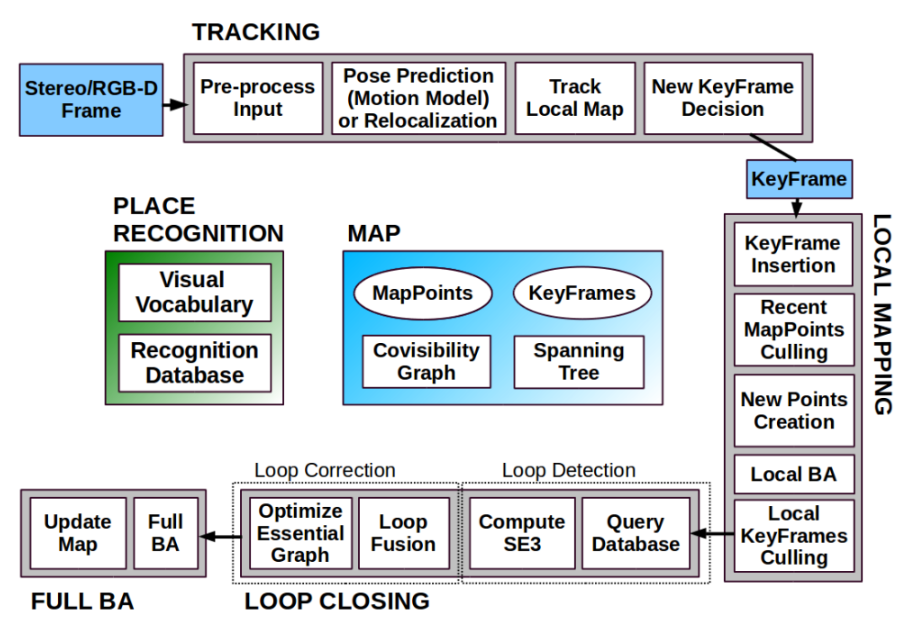

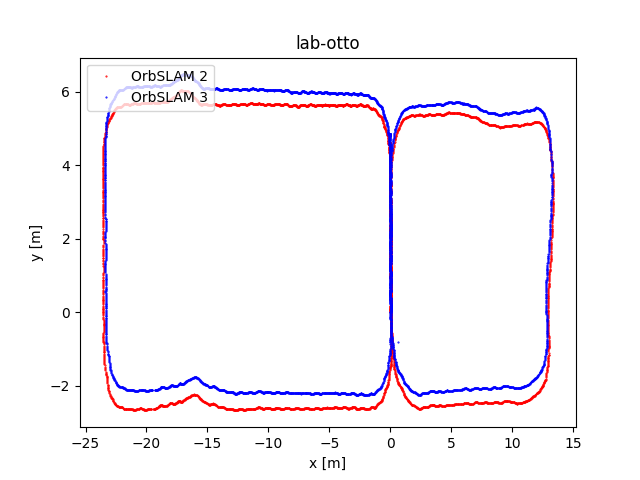

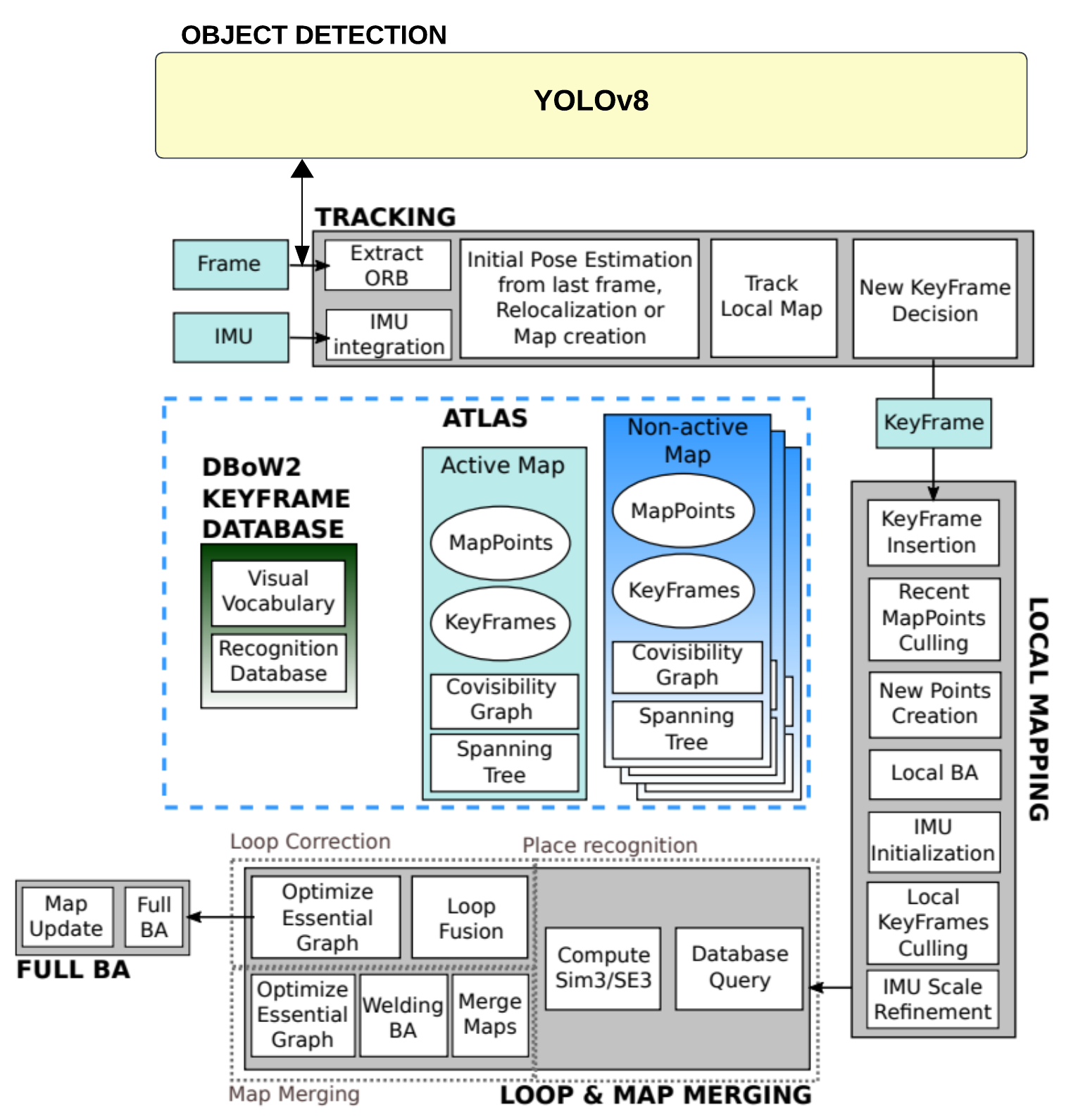

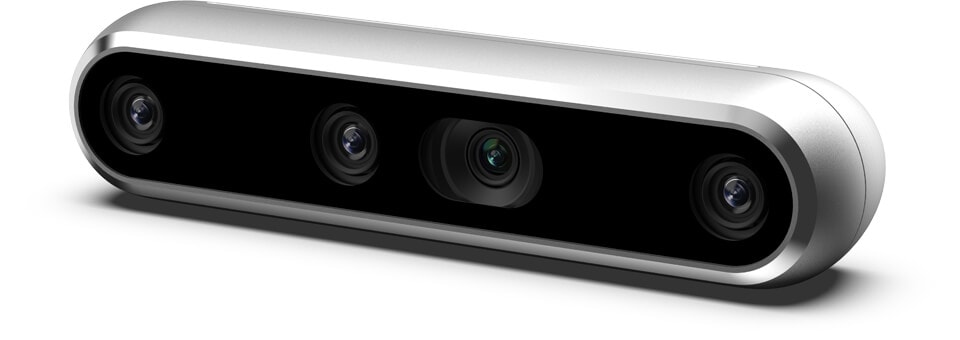

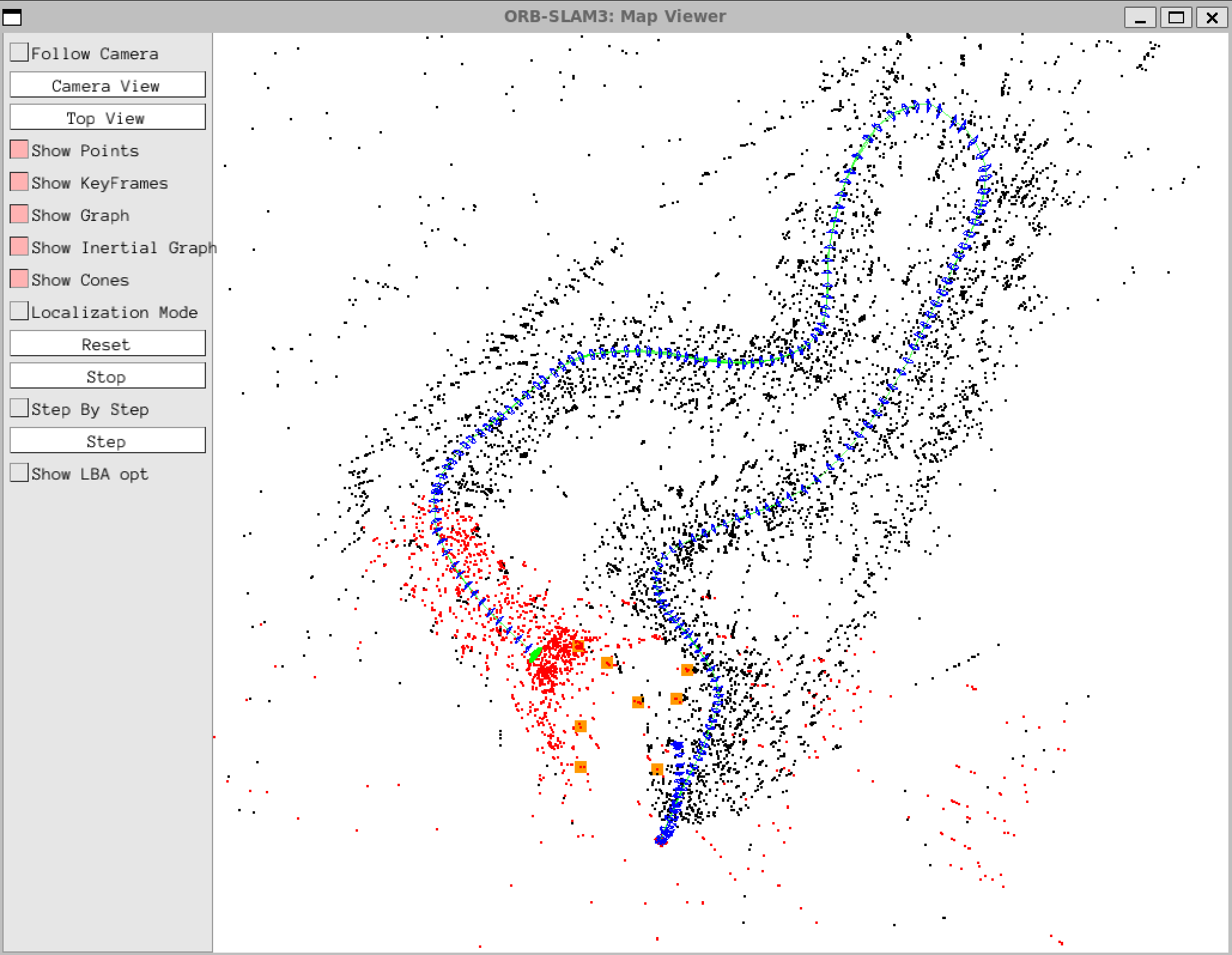

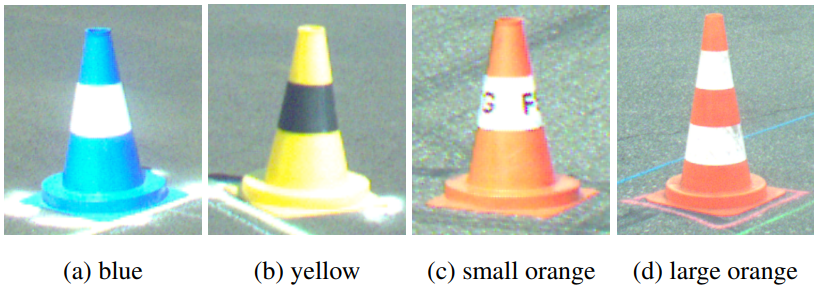

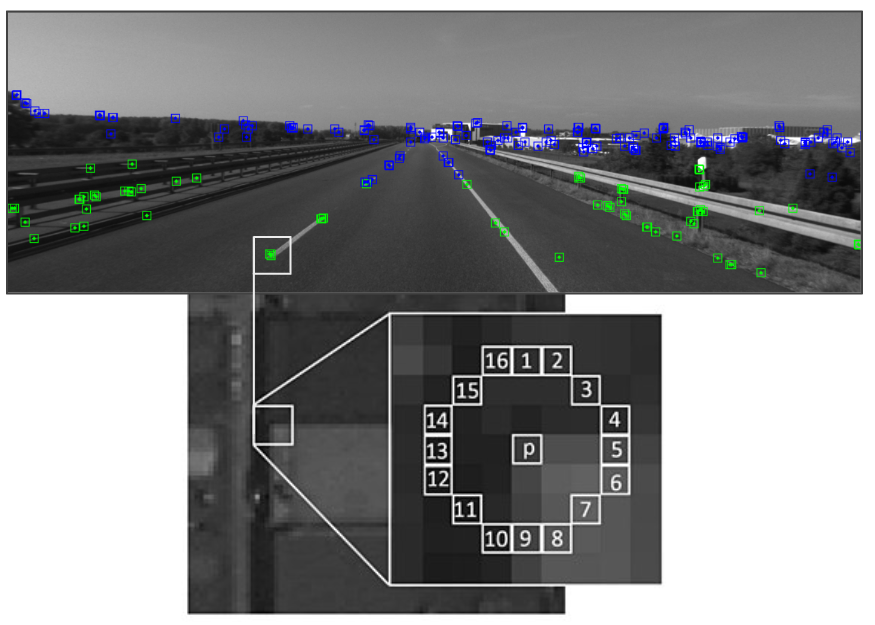

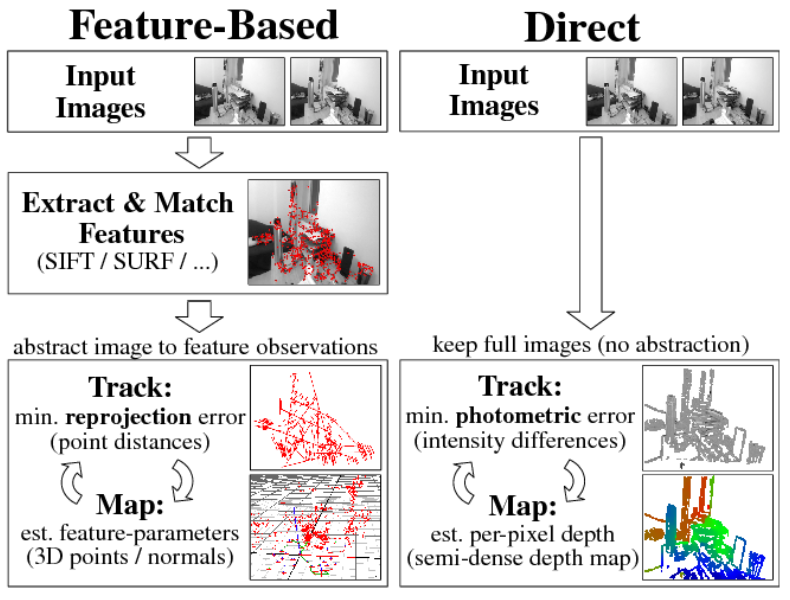

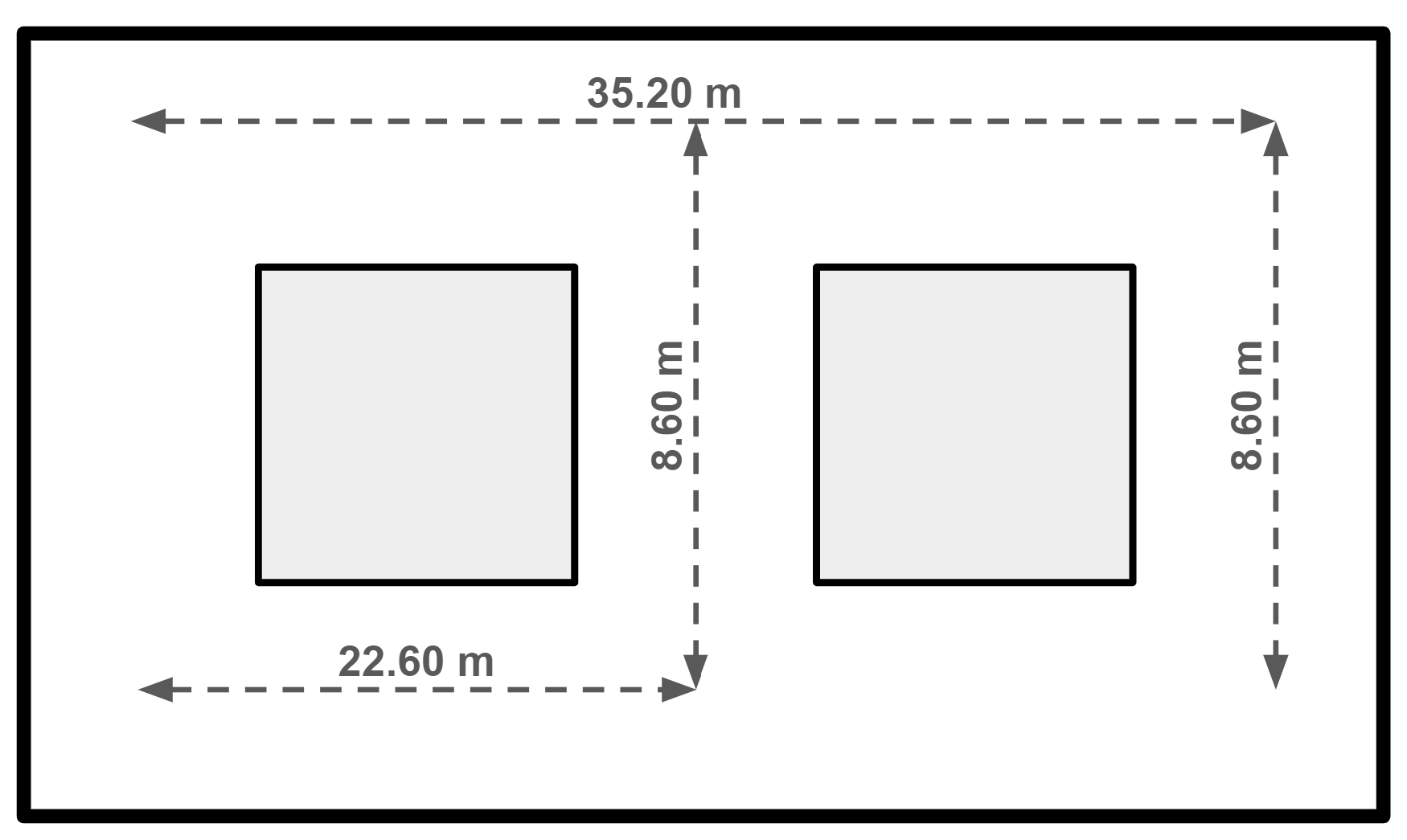

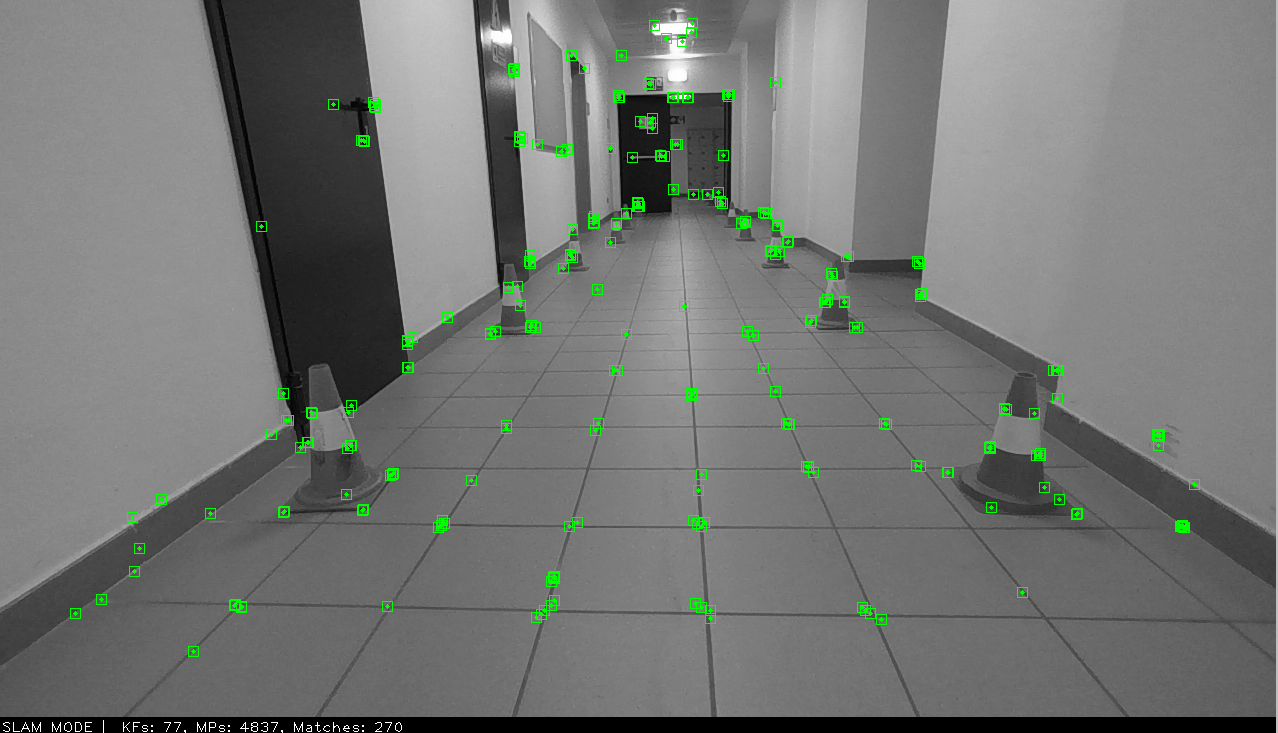

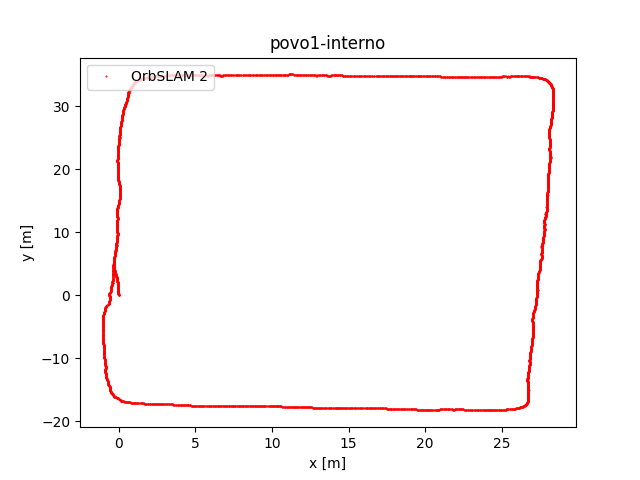

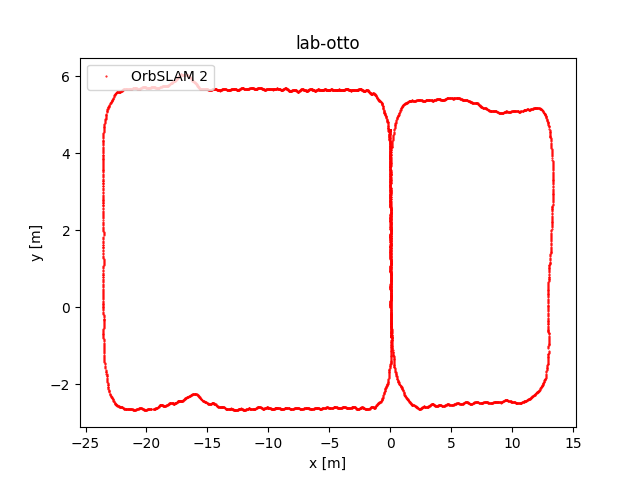

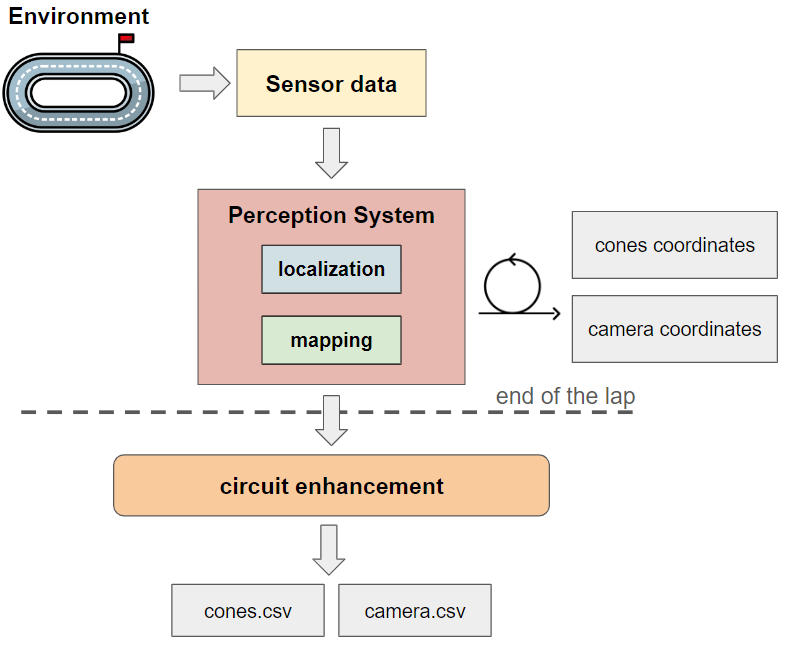

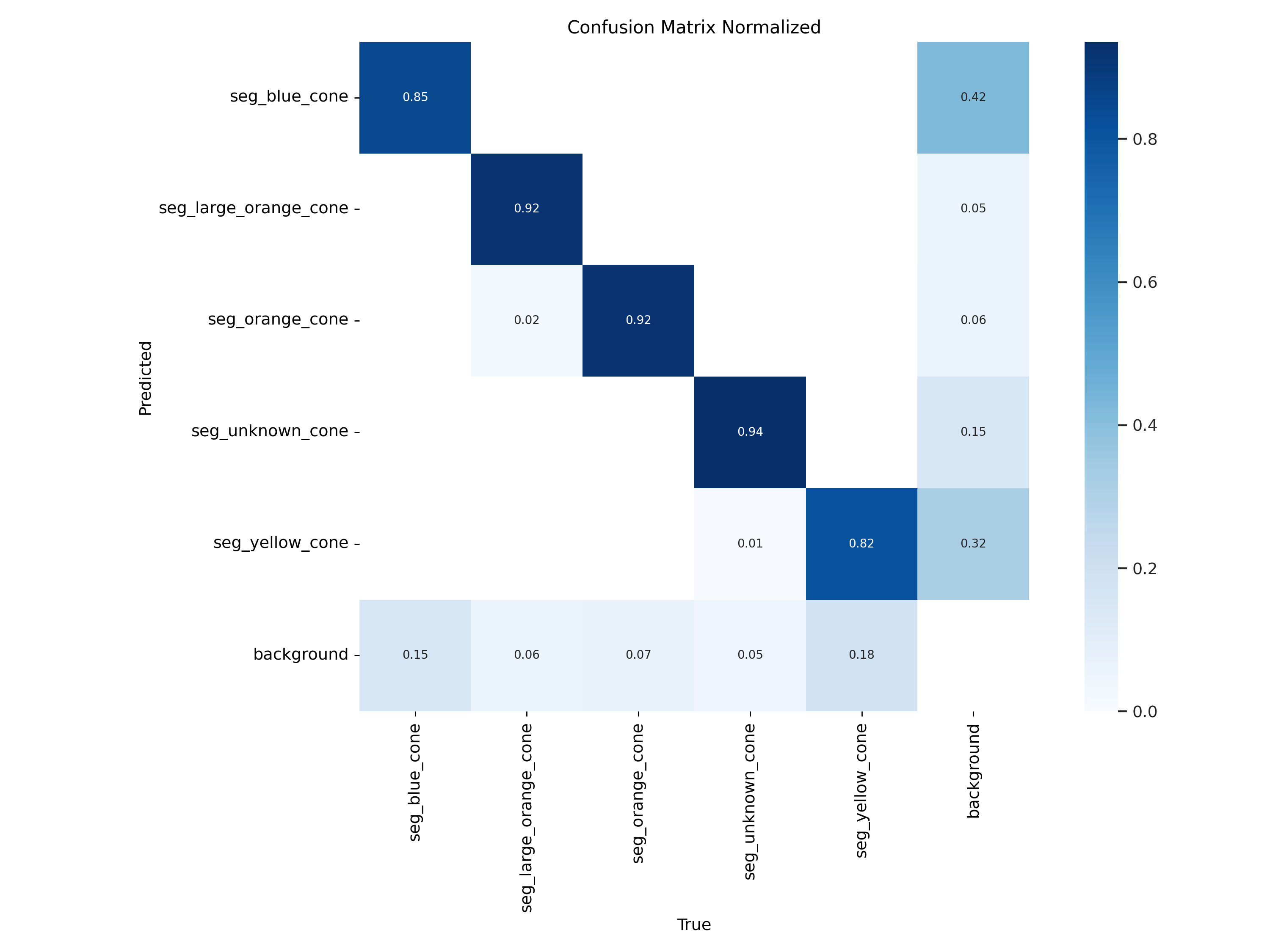

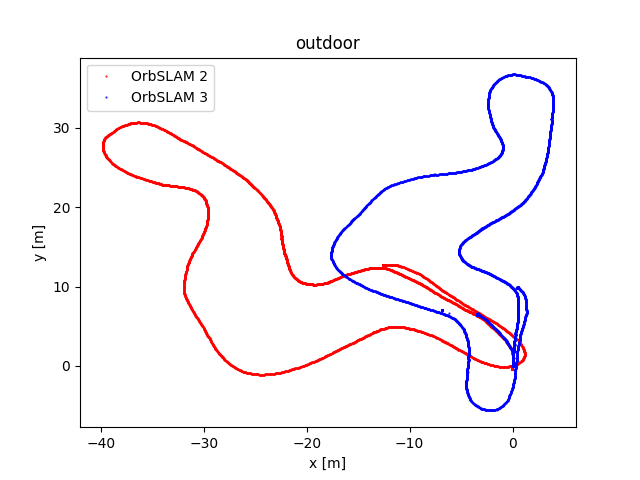

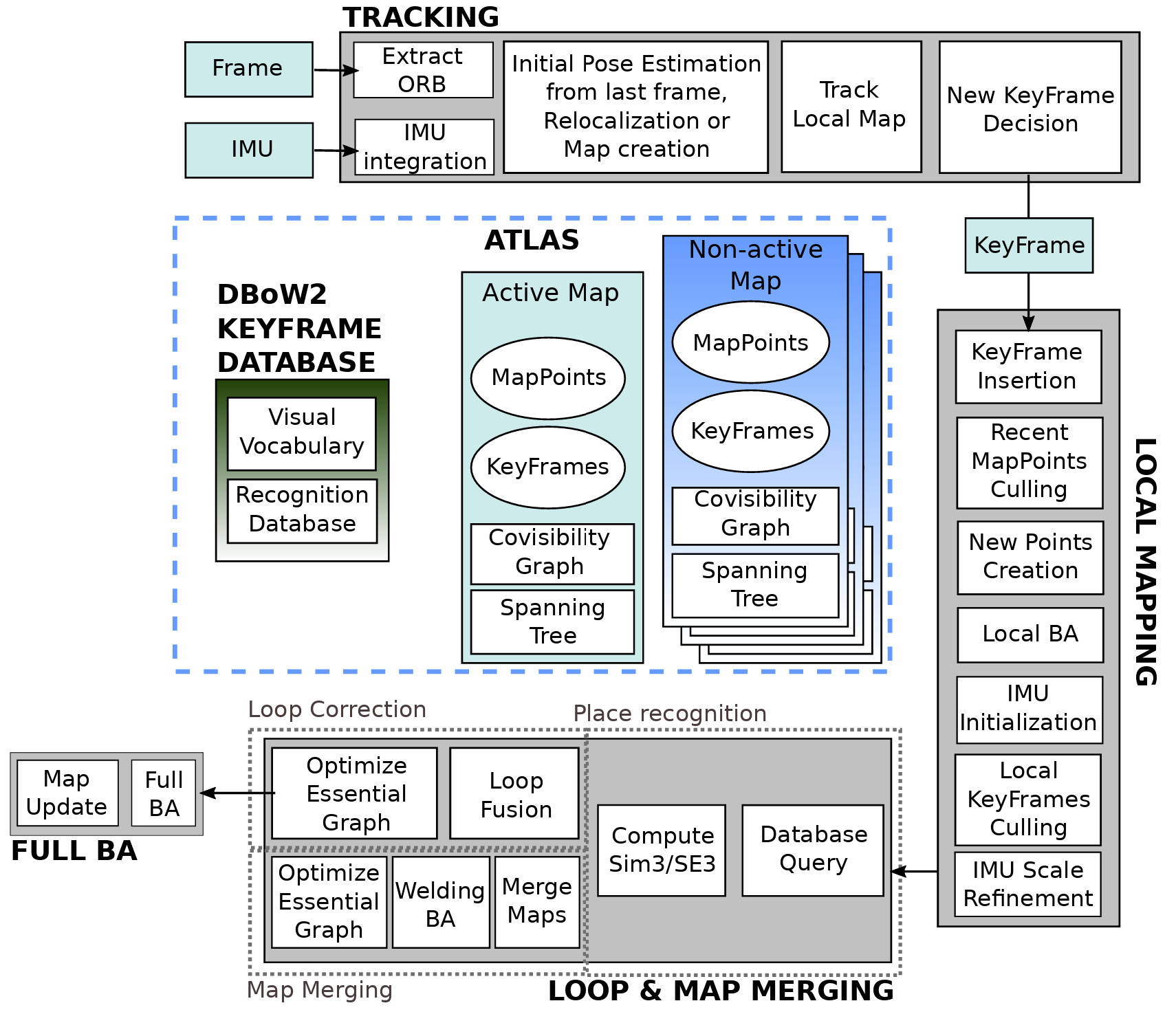

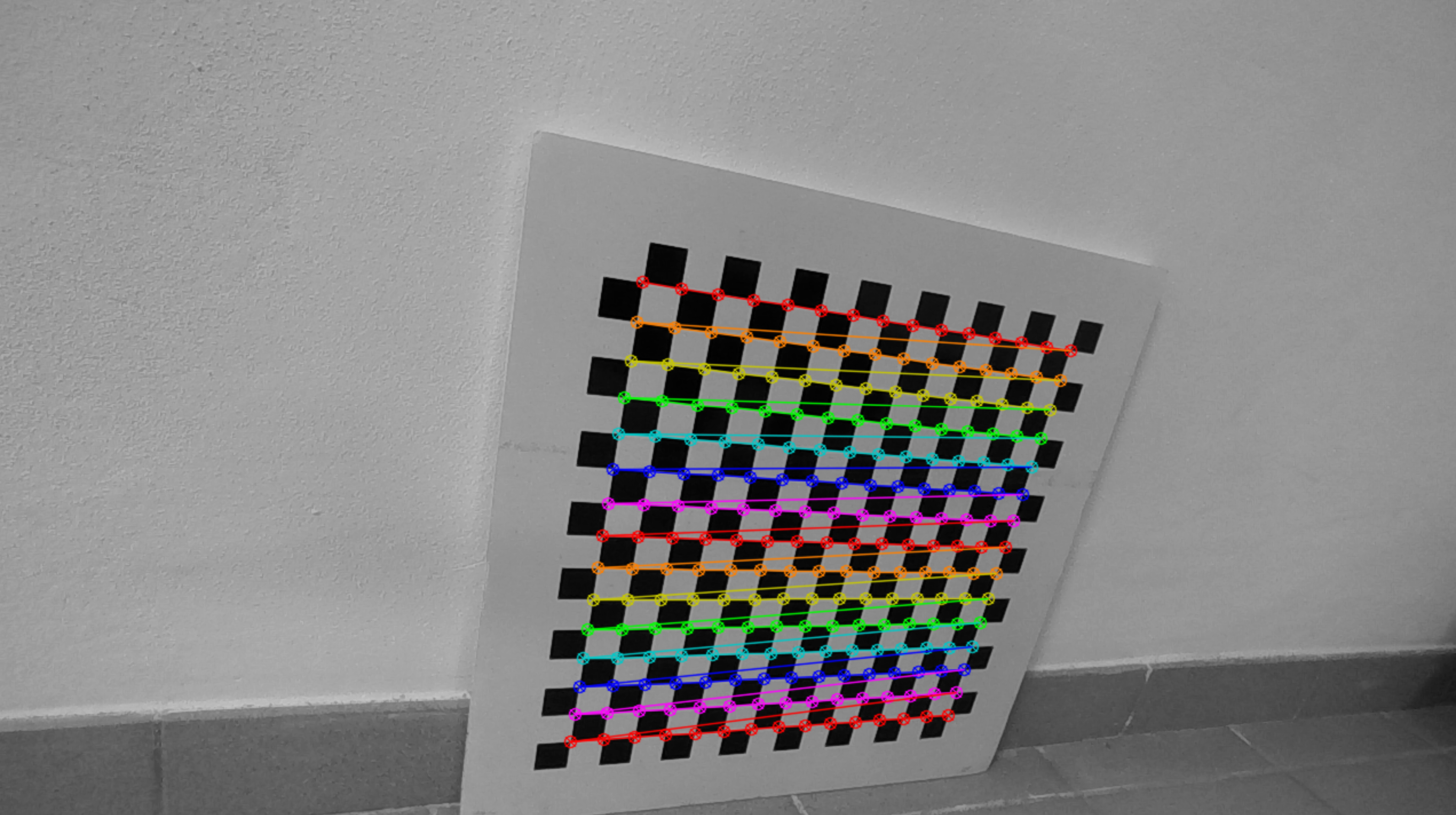

# Percepion System. Simultaneous Localization and Mapping for a Formula Student Driverless Race Car **Year:** 2024 ## Abstract This project introduces a prototype perception system for feature-based Visual Simultaneous Localization and Mapping (Visual SLAM), specifically designed for a Formula Student autonomous race car. The study focuses on achieving real-time localization and enhanced situational awareness by determining the vehicle's position and mapping its surroundings within a cone-defined track. To detect the cones, a fine-tuned version of the YOLOv8 object detection algorithm is utilized. The system's performance is evaluated using both indoor and outdoor video datasets captured with an Intel RealSense D455 RGB-D camera, tested under diverse lighting conditions and environmental settings. ## Introduction and problem statement In the Formula Student Driverless competition, our project focuses on developing a perception system that enables an autonomous vehicle to understand its environment and localize itself within an unknown circuit. The circuit is defined by cones of various types placed at different distances, which the system must detect and classify. This task, commonly referred to as Simultaneous Localization and Mapping (SLAM), involves processing sensor data to construct a map of the circuit while simultaneously determining the vehicle's position. The system must accurately report the vehicle's real-time coordinates within a reference frame and identify the locations and classifications of cones encountered during the lap, in compliance with competition rules. ![problemStatement.png](problemStatement.png) Figure 1 The report is structured as follows: we begin with a concise overview of relevant background concepts. Next, we describe the hardware and sensors utilized in our solution. We then outline our proposed methodology for developing the perception system, followed by a description of the experimental setup. Subsequently, we present and analyze the results. Finally, the "Conclusion and Future Work" section summarizes the key findings and explores potential research directions to improve our approach. ## Background In the following, we briefly summarize the main theoretical aspects related to this work. ## Visual Simultaneous Localization and Mapping This project aims to address the SLAM (Simultaneous Localization and Mapping) problem by tracking the location of an autonomous agent over time while incrementally constructing a virtual representation of its environment. Leveraging the visual sensors at our disposal (see below), we utilize a Visual SLAM algorithm with an RGB-D camera setup. Visual SLAM approaches are typically categorized by camera configurations—Monocular, Stereo, Multi-view, and RGB-D—and by methodology: feature-based or direct methods. Feature-based methods estimate camera motion by minimizing the projection error between image features and a local map, while direct methods operate on image pixel intensities and are better suited for 3D reconstruction. ![visualSlam.png](visualSlam.png) Figure 2 For this work, we adopted OrbSLAM [1], a feature-based Visual SLAM system renowned for its real-time performance in diverse environments. We began by studying OrbSLAM2 [2] to understand its code structure, then progressed to OrbSLAM3 [3] which is, to the best of our knowledge, recognized as one of the most robust and accurate system in the field. ### OrbSLAM2 OrbSLAM2 [2] takes its name from the famous local feature detector ORB (Oriented Fast and rotated Brief) (Figure 3). These features are used for tracking, mapping and placing recognition tasks. The implementation of OrbSLAM2 is open source ([ORB-SLAM2 GitHub repository](https://github.com/raulmur/ORB_SLAM2.git)). The system can work with monocular, stereo, and RGB-D camera setups. It also includes very useful tools like map reuse (i.e., it can load already mapped areas), loop closing (i.e., it can detect closed camera trajectories), camera relocalization (i.e., it can relocalize the camera inside the map when the system is no more able to track camera position) and localization (i.e., it can localize the camera inside a pre-existing map). Furthermore, according to the results presented in the original paper, the algorithm is suitable for real-time applications. ![orb.png](orb.png) Figure 3 The OrbSLAM2 working principle can be divided into three parts which also correspond to the three main threads: - *Tracking*: the system dedicates one thread to track and localize the camera for each frame by first, computing the image's features and then minimizing the reprojection error between the image features and a local map applying motion bundle adjustment (motion BA). - *Local mapping*: it manages the local map and updates it by means of local bundle adjustment (local BA). - *Loop closing*: one thread is dedicated to detecting large loops and correcting the accumulated drift using pose-graph estimation. Once the pose graph is optimized, the system performs a full bundle adjustment (full BA) and updates the map. ![orbslam2-pipeline.png](orbslam2-pipeline.png) Figure 4 ### OrbSLAM3 As described in the following figure, the computational pipeline of OrbSLAM3 is in line with the one of OrbSLAM2. However, OrbSLAM3 [3] stands out in our application due to its multiple map system and its capability to integrate IMU data. Furthermore, we have experimentally noticed that OrbSLAM3 sometimes excels where OrbSLAM2 fails in detecting loop closures. - *Multiple map system*: while OrbSLAM2 sometimes gets completely lost during periods of poor visual information, OrbSLAM3 manages to survive. When unable to localize within the current map due to insufficient visual data, OrbSLAM3 seamlessly initiates a new map, later merging it with existing maps upon revisiting mapped areas. - *IMU data integration*: To enhance the accuracy of localization and mapping outcomes, OrbSLAM3 offers the option to incorporate data from the inertial measurement unit (IMU). However, the results presented in this paper have been obtained without utilizing IMU sensor data. - *Improved loop closure identification*: OrbSLAM3 successfully identifies revisits to previously explored locations, resulting in more frequent bundle adjustments that significantly enhance localization and mapping accuracy. Similar to OrbSLAM2, the code for OrbSLAM3 is open source and can be accessed via the original author's [GitHub repository](https://github.com/UZ-SLAMLab/ORB_SLAM3.git). ![orbslam3-pipeline.png](orbslam3-pipeline.png) Figure 5 ## Hardware and sensors Solutions adopted by Formula Student teams often rely on expensive sensors such as professional cameras, multi-channel lidars, IMU, GPS, and ground speed sensors. The purpose of our research is to demonstrate that it is possible to develop a competitive driverless car without necessarily employing expensive equipment. In consonance with this, the sensor used for this project is an Intel RealSense D455 RGB-D camera. This hardware is reasonably cheap with respect to other commonly adopted solutions. ![d455.jpg](d455.jpg) Figure 6 Using the camera calibration procedure provided by OpenCV we performed a camera calibration of our visual sensor to get the camera matrix and distortion coefficients. To do so we acquired several pictures of the widely used chess board calibration pattern placed at different locations and orientations. Then, we relied on the OpenCV calibration functions to identify the correspondences between the set of 3D real-world points and their 2D coordinates in the images. Finally, to assess the calibration parameters's accuracy, we evaluated the re-projection error, following OpenCV's guidelines, achieving a 0.01 projection error. The code for the camera calibration is publicly available at [this GitHub repository](https://github.com/eagletrt/CONE.git). ![calibration.png](calibration.png) Figure 7 ![calibration-original.png](calibration-original.png) Figure 8 ## Methodology The overall idea of our methodology is reported in the following figure. ![system_architecture.png](system_architecture.png) Figure 9 The RealSense D455 RGB-D camera captures sensor data to perceive the circuit in which the agent operates, acting as a bridge between the agent and its environment. The video stream produced by the camera is processed by the perception system that combines localization and mapping components. After undergoing a post-processing phase (in the figure referred to as circuit enhancement), the algorithmic pipeline produces two output files. The first, named cones.csv, reports the positions and classifications of cones identified in the recorded video stream. The second, camera.csv, contains the coordinates of the camera throughout the video stream, expressed relative to a fixed reference system. As mentioned at the beginning of this chapter, initially we focused on OrbSLAM2 algorithm as our starting point. This strategy allowed us to thoroughly examine the OrbSLAM codebase, serving as a preliminary step in comprehending its structure. In our [GitHub repository](https://github.com/StefanoGenettiUniTN/eagle-driverless-orbSLAM.git) on branch orbslam2, we provide the C++ code together with the instructions to execute OrbSLAM2 on a video sequence recorded by the Intel RealSense D455 camera. Upon completion of the execution, we store the map generated by the algorithm along with the camera's trajectory in a human-readable format (camera.csv). Additionally, throughout the execution, real-time coordinates of the camera in the actual environment are accessible, enhancing the localization capability. ![orbslam2.png](orbslam2.png) Figure 10 Once we became familiar with the structure of the OrbSLAM2 code, we shifted our focus to OrbSLAM3. ### Cone detection and classification For mapping purposes, we aim to estimate the coordinates of the cones that outline the circuit. In this regard we fine-tuned a version of YOLOv8 using the annotated images from the FSOCO dataset [4], a collaborative dataset for vision-based cone detection systems in Formula Student Driverless competitions. The classes of cones of interest are conveniently illustrated in the following figure. ![cone-classes.png](cone-classes.png) Figure 11 The obtained deep neural network model performs well across the training, validation, and test sets. In the following figures, we report the outcome of the training and evaluation procedure. ![confusion_matrix_normalized.png](confusion_matrix_normalized.png) Figure 12: Confusion matrix. ![train_batch1.jpg](train_batch1.jpg) Figure 13: FSOCO training set. ![val_batch1.jpg](val_batch1.jpg) Figure 14: FSOCO validation set. ![r_curve.png](r_curve.png) Figure 15: Recall-confidence curve. ![pr_curve.png](pr_curve.png) Figure 16: Precision-recall curve. ![p_curve.png](p_curve.png) Figure 17: Precision-confidence curve. ![f1_curve.png](f1_curve.png) Figure 18: F1-confidence curve. To integrate the cone detection module into the rest of the system, a custom C++ interface has been developed starting from the one provided in the YOLOv8 repository. The proposed interface uses the OpenCV DNN module to load the network in ONNX format with the capabilities to run it either with or without CUDA for GPU acceleration if available. The original code has been modified as the originally provided example only works on bounding boxes and does not account for the segmentation output. With such modification, the interface produces a vector of bounding boxes and their respective masks. Our custom interface implementation in C++, along with the ONNX YOLO models, can be accessed publicly on [our GitHub repository](https://github.com/StefanoGenettiUniTN/eagle-driverless-orbSLAM.git). ### Combining OrbSLAM3 and YOLOv8 The heart of the overall perception system is the integration of YOLOv8 in the OrbSLAM3 algorithm pipeline. The following figure illustrates the main software components of the perception system. ![architecture-schema.png](architecture-schema.png) Figure 19 Each frame acquired by the camera is processed with our fine-tuned deep learning model, before the ORB extraction step of OrbSLAM3. By doing so, in the subsequent steps of the algorithm, we can filter only the visual features that belong to the bounding boxes of the cones within the current frame. For each ORB feature on the image, OrbSLAM3 keeps track of its corresponding map point in the three-dimensional real-world reference system. Leveraging this information, we gather a set of $(p_x, p_y, p_z)$ point coordinates for each cone detected by our model. To condense the 3D points belonging to a cone $\mathcal{C}$ into a single representative triplet of coordinates, we calculate a centroid $(x_C, y_C, z_C)$: $$x_C = \frac{\sum_{p \in C}p_x}{|\mathcal{C}|}$$ $$y_C = \frac{\sum_{p \in C}p_y}{|\mathcal{C}|}$$ $$z_C = \frac{\sum_{p \in C}p_z}{|\mathcal{C}|}$$ ![yoloAndSlamIdea.png](yoloAndSlamIdea.png) Figure 20 The perception system updates at each frame the list of detected cones that populate the track throughout which the autonomous agent is traveling. Each cone is described by the following attributes: - **class identifier**: the class of the cone predicted by YOLO. - **hit counter**: how many times the cone has been seen by the computer vision system. - **x, y, z**: coordinates of the cone's centroid with respect to the real-world reference system. - **left-right**: this attribute is an integer value indicating the position of the cone relative to the track (see below). The number describes whether the cone is on the right side (1) or the left side (2) of the track. A value of 0 signifies that the position is unknown. Whenever YOLO detects a cone, we need to determine whether the cone has been previously identified in another frame or if it is a new detection. In the case of new detection, the cone needs to be added to the collection of detected cones. However, if the cone has been detected previously (which could happen for instance in consecutive frames), the corresponding hit counter attribute is incremented, and its position is refined based on the new localization estimation. A cone $\mathcal{C}_1$ is equal to a cone $\mathcal{C}_2$ if the following conditions are accomplished: 1. The class predicted by YOLO for $\mathcal{C}_1$ is the same as the one proposed for $\mathcal{C}_2$. 2. The euclidean distance between the $\mathcal{C}_1$'s centroid $(x_{C_1}, y_{C_1}, z_{C_1})$ and $\mathcal{C}_2$'s centroid $(x_{C_2}, y_{C_2}, z_{C_2})$ is below a hard-coded threshold $\tau$, namely: $$\sqrt{(x_{C_1}-x_{C_2})^2 + (y_{C_1}-y_{C_2})^2 + (z_{C_1}-z_{C_2})^2} \leq \tau$$ Upon receiving a new frame from the input video stream, YOLO performs cone detection and classification, resulting in a set of detected cones within the image. Utilizing the methodology outlined above, OrbSLAM3 is employed to derive a triplet of 3D coordinates for each detected cone. Handling cone equality as defined earlier, we iterate the list of detected cones to determine whether each newly detected cone should be inserted for the first time or if it already exists in the vector. When processing a newly detected cone $\mathcal{C}'$ with coordinates $(x_C',y_C',z_C')$, and it is found to have been previously included in the list of cones with coordinates $(x_C,y_C,z_C)$, we refine its current position estimation in the real-world reference system using the following approach: $$x_C = \frac{x_C+x_C'}{2}$$ $$y_C = \frac{y_C+y_C'}{2}$$ $$z_C = \frac{z_C+z_C'}{2}$$ Only cones with a hit counter value exceeding a predefined threshold are treated as valid cones and are subsequently visualized in the output. Cones failing to meet this criterion are deemed as noise and thus are neither visualized nor logged. ![orbslam3-1.png](orbslam3-1.png) Figure 21 ![orbslam3.png](orbslam3.png) Figure 22 #### Left and right cones A central aspect for acquiring a comprehensive representation of the circuit involves distinguishing between cones located on the left and right sides of the vehicle. To address this, we have evaluated two potential solutions: 1. According to competition regulations, track lanes are delineated by yellow and blue cones for the left and right lane boundaries, respectively. Therefore, we can easily determine whether a cone is positioned on the right or left boundary of the track by relying on the classifications provided by YOLO. This represents the simplest solution. 2. Another method to determine whether a cone is positioned on the left or right involves a geometric approach. Utilizing the reference systems illustrated in the following figure, we convert the 3D world coordinates $(x^w, y^w, z^w)$ of each cone into their respective 3D coordinates within the camera reference system $(x^c, y^c, z^c)$. Here, cones with a positive $z^c$ value are situated in front of the vehicle, while cones with a negative $z^c$ value are behind it. Additionally, cones with a positive $x^c$ coordinate are on the right side, whereas cones with a negative $x^c$ coordinate are on the left side. ![referenceSystems.png](referenceSystems.png) Figure 23 ## Experimental setup In this section, we provide an overview of the experimental design employed to evaluate the proposed framework. ### Computational setup To ensure the solution could be implemented without requiring specialized hardware, thereby minimizing implementation costs, the experiments described in this report were conducted on a standard Windows 11 laptop. The system was equipped with a 14-core Intel i7-12700H @ 2.30 GHz and 32GB of RAM. ### Datasets To evaluate the performance of the implemented perception system, we captured multiple datasets using the RealSense D455 camera through the RealSense Viewer software made available by Intel. All the datasets are made available at [this link](https://drive.google.com/drive/folders/1FuE_72neUTPdae5kDPz7UIypFVsM254G?usp=drive_link). - *lab-otto*: this dataset was captured within an indoor setting, specifically in the corridors of our university. To evaluate our algorithm's object detection capabilities, we strategically placed cones within the environment. Additionally, we intentionally included a loop closure within the dataset to assess the detection capabilities of OrbSLAM2 and OrbSLAM3. Furthermore, we measured the distances covered in the explored areas (see the next figure), allowing us to evaluate the accuracy of our scaling methodology. - *outdoor*: this sequence was recorded outdoors, specifically in the car park of our university. To emulate the layout of a Formula Student driverless competition circuit, we strategically positioned cones along the path. Our movement within the circuit aimed to encompass a loop closure for evaluation purposes. - *povo1-interno*: the recorded sequence navigates a complete path along the ground floor corridor of our university. There are no cones along the path. The light from the windows causes a lot of tricky visual artifacts which poses difficulties for OrbSLAM2 in certain runs. Conversely, OrbSLAM3 demonstrates enhanced robustness in this scenario, coping better with limited visual features. Notably, the sequence encapsulates a loop closure. - *povo-garage*: This dataset replicates a circuit delineated by cones within an indoor setting. Precisely, the video sequence was captured in the underground car park of our university. Our trajectory intentionally encompasses a loop closure to assess the capabilities of our implementation. ![labOttoMeasures.png](labOttoMeasures.png) Figure 24 ## Results This section aims to present representative experiments showcasing the results achieved with our implemented perception system. First, we report and discuss a comparison of the performance of OrbSLAM2 and OrbSLAM3. Finally, we offer a demonstrative video showcasing the execution of our perception system on one of our indoor datasets. ### OrbSLAM2 and OrbSLAM3 comparison To evaluate OrbSLAM2 and OrbSLAM3 performance, we compared the estimated camera trajectories obtained by the two algorithms executed on the four datasets we collected. In the following figure, the plots of the obtained trajectories are reported. The code that has been implemented to obtain these representations has been published on [eagle-driverless-orbSLAM GitHub repository](https://github.com/StefanoGenettiUniTN/eagle-driverless-orbSLAM.git) on branch evaluation. ![povo1-interno_os2.png](povo1-interno_os2.png) Figure 25 ![povo1-interno_os2-os3.png](povo1-interno_os2-os3.png) Figure 26 ![povo-garage_os2.png](povo-garage_os2.png) Figure 27 ![povo-garage_os2-os3.png](povo-garage_os2-os3.png) Figure 28 ![lab-otto_os2.png](lab-otto_os2.png) Figure 29 ![lab-otto_os2-os3.png](lab-otto_os2-os3.png) Figure 30 ![outdoor_os2.png](outdoor_os2.png) Figure 31 ![outdoor_os2-os3.png](outdoor_os2-os3.png) Figure 32 Upon observing the trajectory curves we derive the following observations. While some datasets show nearly overlapping trajectories, others exhibit differences due to specific rotations and translations. This discrepancy is not concerning as both algorithms calculate accurate trajectories, albeit within slightly different reference systems. ### Execution demo To present the achieved results, we offer [two videos](https://drive.google.com/drive/folders/1q6-qMOJXNF8D-9AjLLbLUHs6hcYcwJEd?usp=sharing) demonstrating the behavior of the perception system using the povo-garage dataset. The videos illustrate that the system produces reasonably high-quality output with satisfactory stability. The first video demonstrates that YOLO appropriately recognizes and classifies cones within the captured frame. Additionally, different colors distinguish between ORB features within the bounding boxes of the cones and key points that do not belong to a cone. The second video showcases the progressive mapping of the track and the simultaneous localization of the vehicle within it. Particularly, the orange squares represent the projection of the centroid coordinates of the cones within the world reference system. These squares are updated in every frame. The larger blue and yellow squares represent cone clusters. Blue is used to represent cones on the right side, while yellow represents cones on the left side. ## Conclusions and future directions In this work, we achieved a functioning initial version of a perception system aimed at solving an instance of the Simultaneous Localization and Mapping (SLAM) problem for a Formula Student racing car to drive an autonomous vehicle. Through camera calibration, we were able to obtain intrinsic and extrinsic parameters of the Intel RealSense D455 camera. Starting the work with OrbSLAM2 allowed us to become familiar with the code structure proposed by the authors. This facilitated a smoother migration towards the Visual SLAM algorithm OrbSLAM3. Having a working solution of both OrbSLAM2 and OrbSLAM3 also allowed us to compare the performance achievable with the two algorithms. Regarding the mapping, the YOLOv8 model, on which we performed fine-tuning using the FSOCO dataset, proved to be efficient for properly detecting and classifying conses within the acquired frames. Integrating YOLOv8 into the algorithmic pipeline of OrbSLAM3 is at the core of the proposed solution and enabled us to effectively address the SLAM problem. By combining the two algorithms, we can select only the Oriented FAST and rotated BRIEF (ORB) visual features belonging to the bounding box of the cone, derive their corresponding coordinates relative to the world reference system, and thus obtain the coordinates of a single representative centroid of the recognized cone. Notably, we further refined the results by proposing a prototypical solution for cone clustering and distinguishing between right and left cones. The proposed solution was tested and achieved good performance on five datasets acquired by us. ### Limitations and future improvements #### Considering segmentation masks rather than bounding boxes Upon analyzing the plot of cone centroids, we observe considerable noise in the estimation of their location. We attribute this noise to inferring cone coordinates from the ORBs within the bounding boxes encasing each other. Within these bounding boxes, there might exist visual features unrelated to the detected cones. To address this limitation, our proposed solution involves taking into account the segmentation mask of the cones rather than the bounding box and subsequently filtering the ORBs within this defined shape. #### Is it necessary to execute YOLO inference on every frame? At present, the goodness of processing every acquired frame with YOLO remains uncertain. Although YOLO provides good real-time performance, being able to avoid running the object detection model on each frame of the video stream would reduce the computational cost of the algorithm. Moreover, it is reasonable to assume that the cones in two consecutive frames remain unchanged. Thus, it might be a prominent idea to utilize the model solely on OrbSLAM3 KeyFrames rather than on every frame. #### Multithreading Currently, YOLOv8 is executed sequentially, in series, with respect to OrbSLAM3. A possible enhancement of this work would be to separate YOLOv8 and OrbSLAM3 into two distinct threads running in parallel. At that point, through appropriate process synchronization policies, it might be possible to optimize the interaction between YOLO and SLAM. ## Contributions - Stefano Genetti, PhD Student University of Trento (Italy) - Thomas Nonis, MSc Student University of Trento (Italy) - Stefano Dell'Anna, PhD Student University of Trento (Italy) - Sebastiano Taddei, PhD Student University of Trento (Italy) - Gabriele Stulzer, MSc Student University of Trento (Italy) ## References 1. **ORB-SLAM: A Versatile and Accurate Monocular SLAM System** [DOI: 10.1109/TRO.2015.2463671](http://dx.doi.org/10.1109/TRO.2015.2463671) 2. **ORB-SLAM2: An Open-Source SLAM System for Monocular, Stereo, and RGB-D Cameras** [DOI: 10.1109/TRO.2017.2705103](http://dx.doi.org/10.1109/TRO.2017.2705103) 3. **ORB-SLAM3: An Accurate Open-Source Library for Visual, Visual–Inertial, and Multimap SLAM** [DOI: 10.1109/TRO.2021.3075644](http://dx.doi.org/10.1109/TRO.2021.3075644) 4. **FSOCO: The Formula Student Objects in Context Dataset** [DOI: 10.4271/12-05-01-0003](http://dx.doi.org/10.4271/12-05-01-0003)
