Abstract

Leveraging advanced image processing and deep learning, this project focuses on CNNs and the Keras API for image processing and regression tasks related to plant images, particularly weed species from Plant Seedlings dataset" I worked on a subset". The project involves data preparation, basic transfer learning using the VGG-16 model, classification, and regression networks. Regularization methods are applied to improve the model, and discussions on overfitting and the impact of regularization are included. The submission requires a Jupyter file containing the solution, and late submissions are not allowed. It's contributes to understanding CNNs, transfer learning, and handling small training data. This project holds significance within my Master's in Computer Vision at uOttawa (2023).

• Required libraries: scikit-learn, pandas, matplotlib.
• Execute cells in a Jupyter Notebook environment.
• The uploaded code has been executed and tested successfully within the Google Colab environment.

Image classification and bounding box regression using transfer learning with a VGG-16 model.

The dataset comprises 4 classes with 250 images each, divided into training,and testing sets, images size are differnet: Cleavers, Common Chickweed, Maize, Shepherd’s Purse,

Key Tasks Undertaken

1. Data Preparation:

   • Uploaded a subset of the dataset from Google Drive.

   • Extracted the dataset and organized it into 70% training, 15% validation, and 15% testing sets.

     • Traning Set



     • Validation Set



     • Testing Set



   • Loaded the data, resized images to 32x32 pixels, and created DataFrames for each set.

      Training Data Size: 700
      Training Data Label Counts:
      Shepherds_Purse     175
      Common_Chickweed    175
      Cleavers            175
      Maize               175
      Name: Label, dtype: int64

      Size of the Images in Training Data: (32, 32, 3)
      ----------------------------------------------------------------

      Validation Data Size: 148
      Validation Data Label Counts:
      Shepherds_Purse     37
      Common_Chickweed    37
      Cleavers            37
      Maize               37
      Name: Label, dtype: int64

      Size of the Images in Validation Data: (32, 32, 3)
      ----------------------------------------------------------------

      Test Data Size: 152
      Test Data Label Counts:
      Shepherds_Purse     38
      Common_Chickweed    38
      Cleavers            38
      Maize               38
      Name: Label, dtype: int64
      Size of the Images in Test Data: (32, 32, 3)
      ----------------------------------------------------------------

2. Classification Network (Transfer Learning):

   • Used the first 2 blocks of VGG-16 model for transfer learning.
   • Modified the model by adding custom layers for classification.

      # Add custom layers
      x = Conv2D(256, (3, 3), activation='relu', padding='same')(x)
      x = MaxPooling2D((2, 2))(x)
      x = Conv2D(128, (3, 3), activation='relu', padding='same')(x)
      x = MaxPooling2D((2, 2))(x)
      x = Flatten()(x)
      outputs = Dense(4, activation='softmax')(x)  # Output layer for 4 classes

     # Create the custom model
     classification_model = Model(inputs=vgg_model.input, outputs=outputs)

   • One-hot encoded the labels.
   • Trained the classification model, monitored convergence, and visualized learning curves.

      batchSize = 64
      nEpochs = 100

      # Compile the model
      classification_model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])

      # Train the model
      history = classification_model.fit(X_train, y_train_k, batch_size=batchSize, epochs=nEpochs, verbose=1, validation_data=(X_valid, y_valid_k))

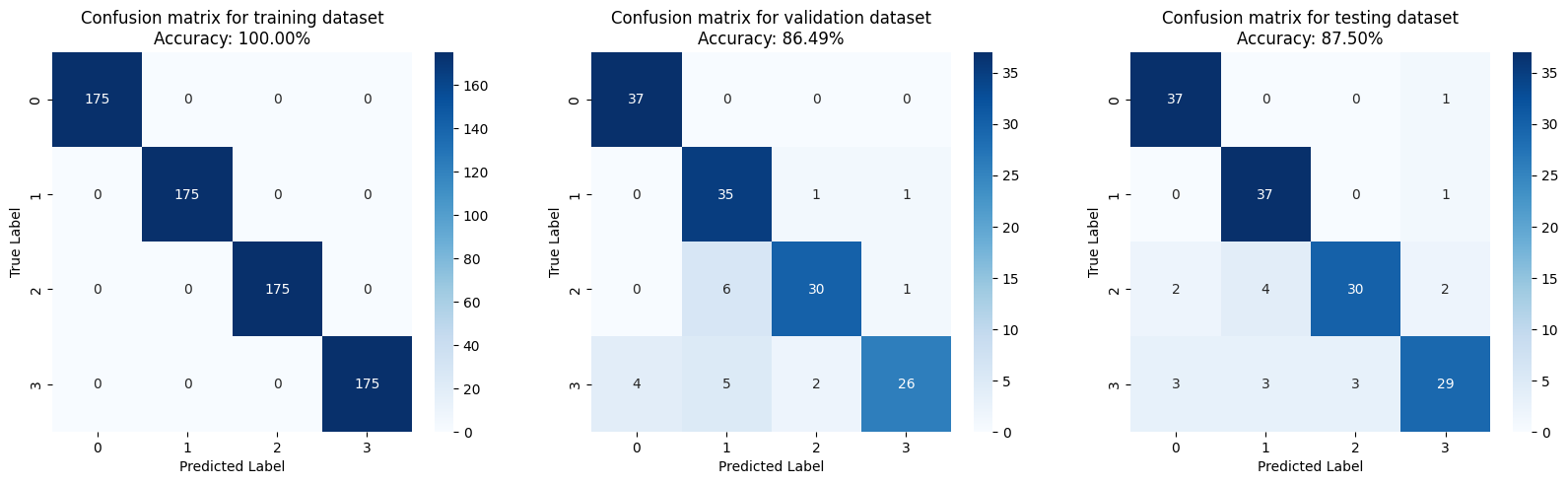

   • Plotted and analyzed the confusion matrix for training, validation, and testing datasets.



3. Regression Network (Transfer Learning):

   • Loaded bounding box dimensions from the .json file.

   • Normalized height and width values.

   • Split the data into 70% training, 15% validation, and 15% testing sets.

      Training Data Size: 700
      Training Data Label Counts:
      Shepherds_Purse     175
      Common_Chickweed    175
      Cleavers            175
      Maize               175
      Name: Label, dtype: int64

      ----------------------------------------------------------------

      Validation Data Size: 148
      Validation Data Label Counts:
      Shepherds_Purse     37
      Common_Chickweed    37
      Cleavers            37
      Maize               37
      Name: Label, dtype: int64

      ----------------------------------------------------------------

      Test Data Size: 152
      Test Data Label Counts:
      Shepherds_Purse     38
      Common_Chickweed    38
      Cleavers            38
      Maize               38
      Name: Label, dtype: int64

   • Used VGG-16 for transfer learning with custom layers for regression.

      # Add custom layers
      x_regression = Conv2D(256, (3, 3), activation='relu', padding='same')(x_regression)
      x_regression = MaxPooling2D((2, 2))(x_regression)
      x_regression = Conv2D(128, (3, 3), activation='relu', padding='same')(x_regression)
      x_regression = MaxPooling2D((2, 2))(x_regression)
      x_regression = Flatten()(x_regression)
      height_output = Dense(1, activation='linear', name='height')(x_regression)
      width_output = Dense(1, activation='linear', name='width')(x_regression)

     # Create the custom regression model
     regression_model = Model(inputs=regression_vgg_model.input, outputs=[height_output, width_output])

   • Trained the regression model, monitored convergence, and visualized learning curves.

        batchSize = 64
        nEpochs = 100

        # Compile the model
        regression_model.compile(optimizer='adam', loss='mean_squared_error', metrics=['mean_squared_error'])

        # Train the regression model
        results =regression_model.fit(X_train_regression, [y_train_height, y_train_width], epochs=nEpochs, validation_data=
        (X_valid_regression, [y_valid_height, y_valid_width]))



   • Calculated mean squared error and mean absolute error for training, validation, and testing datasets.

       22/22 [==============================] - 0s 4ms/step
      Mean Squared Error for height - Train: 0.002856253375326049, width - Train: 0.003164909554132075
      Mean Absolute Error for height - Train: 0.04336496062917911, width - Train: 0.04329592842347164

      5/5 [==============================] - 0s 4ms/step
      Mean Squared Error for height - Validation: 0.09055006138348325, width - Validation: 0.06981748160195345
      Mean Absolute Error for height - Validation: 0.2218270389548888, width - Validation: 0.20934197684151834

      5/5 [==============================] - 0s 4ms/step
      Mean Squared Error for height - Test: 0.07094346629570776, width - Test: 0.08139776182780212
      Mean Absolute Error for height - Test: 0.2150076942617718, width - Test: 0.22207330307667558

4. Model Improvement (Classification Network):

   • Modified the VGG-16 model by adding extra Keras layers and Introduced regularization techniques such as Batch
     Normalization and Dropout.

      # Add custom layers with regularization
      x_new  = Conv2D(256, (3, 3), activation='relu', padding='same')(x_new )
      x_new  = BatchNormalization()(x_new )  # Batch Normalization layer
      x_new  = MaxPooling2D((2, 2))(x_new)
      x_new  = Conv2D(128, (3, 3), activation='relu', padding='same')(x_new)
      x_new  = BatchNormalization()(x_new)  # Batch Normalization layer
      x_new  = MaxPooling2D((2, 2))(x_new)
      x_new  = Flatten()(x_new)
      x_new  = Dropout(0.5)(x_new)  # Dropout layer with a dropout rate of 0.5
      outputs = Dense(4, activation='softmax')(x_new)  # Output layer for 4 classes

      # Create the model
      new_custom_model = Model(inputs=new_vgg_model.input, outputs=outputs)

   • Trained the improved classification model, monitored convergence, and visualized learning curves.

      batchSize = 35
      nEpochs = 100

      # Compile the model
      new_custom_model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])

      # Train the model
      newModel = new_custom_model.fit(X_train, y_train_k, batch_size=batchSize, epochs=nEpochs, verbose=1, validation_data=(X_valid, y_valid_k))



   • Plotted and analyzed the confusion matrix for training, validation, and testing datasets.
