Abstract

This publication presents the development of a real-time object detection application utilizing the YOLOv5 model. The application is designed to process video streams from files or webcams, providing users with a graphical interface to set detection parameters and visualize results. The project demonstrates the capabilities of deep learning in computer vision and its practical applications.

Introduction

Object detection is a crucial task in computer vision, enabling machines to identify and locate objects within images or video streams. YOLO (You Only Look Once) is a state-of-the-art model known for its speed and accuracy in real-time object detection. This project aims to create an accessible application that leverages YOLOv5 to perform object detection in real-time, allowing users to interact with the model through a simple graphical user interface (GUI).

Methodology

The application is built using Python and integrates several libraries:

• OpenCV: For video processing and image manipulation.
• PyTorch: To load and run the YOLOv5 model.
• Tkinter: For creating the GUI.

Key Steps in Development:

1. Import Libraries and Initialize Model:

   import cv2
   import torch
   import time
   import tkinter as tk
   from tkinter import filedialog, messagebox, simpledialog


---

Load YOLOv5 model

model = torch.hub.load('ultralytics/yolov5', 'yolov5s')  # Load YOLOv5 small model
model.eval()
#Ensure model works on GPU if available
device = 'cuda' if torch.cuda.is_available() else 'cpu'
model.to(device)

---

2. Preprocessing and Frame Handling:

   def preprocess_frame(frame):
   """Convert frame from BGR to RGB as YOLO requires RGB images"""
      rgb_frame = cv2.cvtColor(frame,  cv2.COLOR_BGR2RGB)
      return rgb_frame


---

3. Start Video Function:

   def start_video(video_path=None, is_camera=False, resolution=(640,480):  """Start processing video or camera feed"""
   cap = cv2.VideoCapture(video_path) if video_path else cv2.VideoCapture(0)
   if not cap.isOpened():
       messagebox.showerror("Error", "Could not open video source.")
       return

   # Additional code for processing frames and saving output...


---

4. User Interface Setup:

   root = tk.Tk()
   root.title("YOLO Object Detection")
   confidence_var = tk.StringVar(value="0.5")
   confidence_label = tk.Label(root,text="Confidence Threshold (0-1):")
   confidence_label.pack()
   confidence_entry = tk.Entry(root, textvariable=confidence_var)
   confidence_entry.pack()
   load_video_button = tk.Button(root, text="Load Video", command=load_video)
   load_video_button.pack(pady=10)
   use_camera_button = tk.Button(root, text="Use Camera", command=use_camera)
   use_camera_button.pack(pady=10)
   root.mainloop()


Experiments

The application was tested using various video files and live camera feeds. The confidence threshold for object detection was adjustable via the GUI, allowing users to filter detections based on their requirements. The performance was monitored by calculating the frames per second (FPS) during the detection process.

Results

The application successfully detected and labeled objects in real-time, displaying bounding boxes and confidence scores. Users could save the processed video with detected objects, enhancing the utility of the application for various use cases, such as surveillance and traffic monitoring.

Example Output:

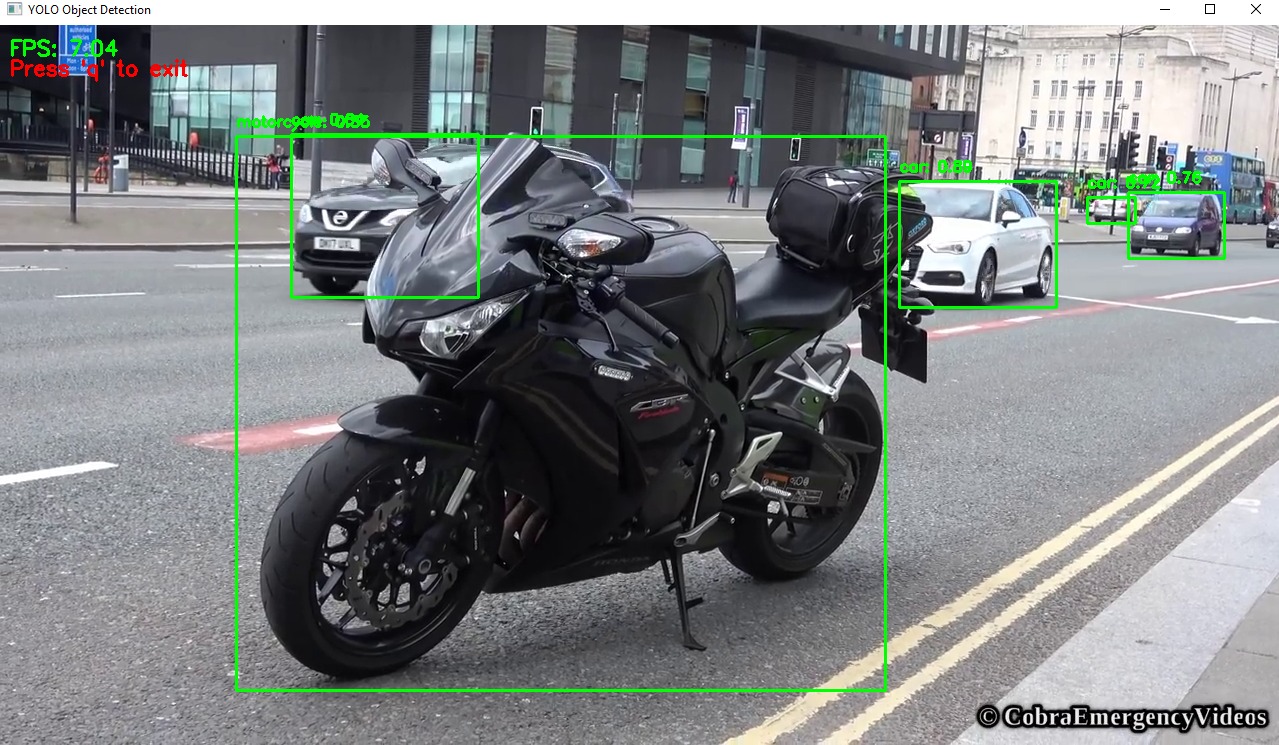

• Object Detection Example:

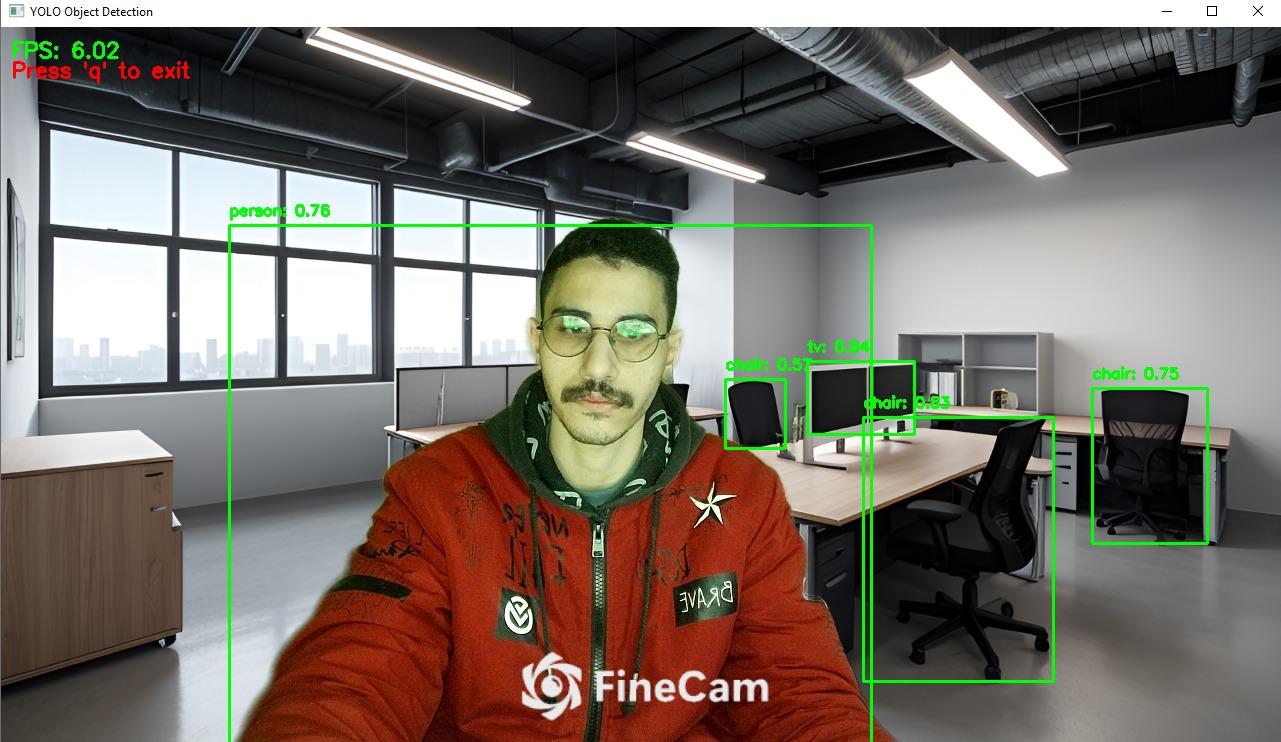

• Object Tracking Example:

Conclusion

This project showcases the integration of YOLOv5 for real-time object detection in a user-friendly application. The combination of OpenCV, PyTorch, and Tkinter provides a robust framework for developing computer vision applications. Future work may involve optimizing the model for better performance and expanding the application’s capabilities to include additional features such as tracking and classification.

---
