1.Abstract

This study explores the Intel Image Classification dataset to evaluate and compare the performance of Convolutional Neural Networks (CNNs) and Graph Convolutional Networks (GCNs) for image classification. The dataset consists of 25,000 images distributed across six categories: buildings, forest, glacier, mountain, sea, and street. Leveraging CNNs, Delaunay triangulation, and SLIC segmentation techniques, we achieved accuracies of 98%, 53%, 70%, and 73% (with data augmentation) respectively. These results underscore the strengths and limitations of each approach while providing insights for future advancements in image classification tasks.

2. Dataset Deatils

The Intel Image Classification dataset contains around 25,000 images, each of size 150x150 pixels, categorized into six distinct classes:

Buildings: Label 0

Forest: Label 1

Glacier: Label 2

Mountain: Label 3

Sea: Label 4

Street: Label 5

The data is divided into three subsets:

Training Set: ~14,000 images

Test Set: ~3,000 images

Prediction Set: ~7,000 images

The dataset was initially published on DataHack by Intel for an image classification challenge. It provides an excellent opportunity to develop neural network models for high-accuracy classification tasks.

3. Model Architecture

Convolutional Neural Network (CNN):

Input: 100x100x3 image
Layers: Convolutional layers with ReLU activation, max-pooling, fully connected layers, and softmax for classification.
Output: Six-class probability distribution

Graph Convolutional Network (GCN) with Delaunay Triangulation:

Input: Graphs generated from image regions using Delaunay triangulation.
Layers: Graph convolutional layers with BatchNorm and ReLU, global pooling, and fully connected layers.
Output: Six-class probability distribution.

GCN with SLIC Segmentation:

Input: Graphs created from superpixels using SLIC segmentation.
Layers: Similar to the GCN with Delaunay triangulation.
Output: Six-class probability distribution.

GCN with SLIC Segmentation and Data Augmentation:

Enhancements: Augmented data using transformations like rotation, scaling, and flipping.
Model: GCN with SLIC architecture.

Results

The performance of each model was evaluated on the test set, with accuracies as follows:

CNN: 98%

GCN with Delaunay Triangulation: 53%

GCN with SLIC Segmentation: 70%

GCN with SLIC and Data Augmentation: 73%

Visualizations

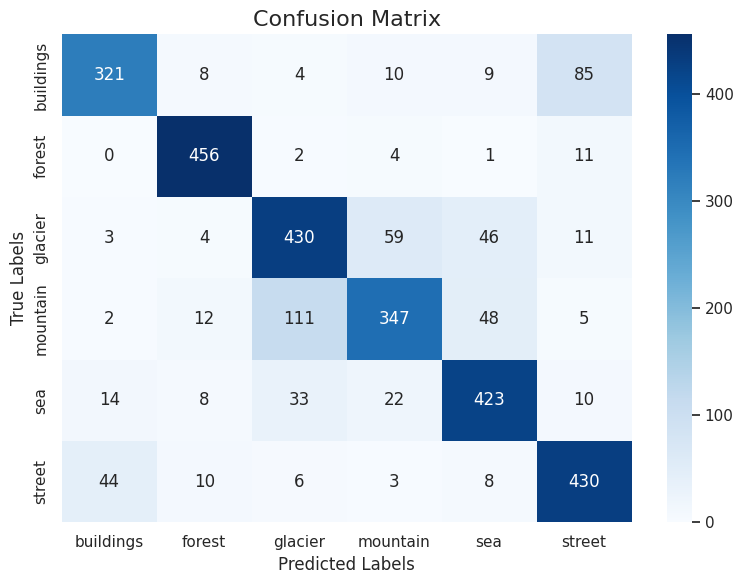

Confusion matrix for CNN

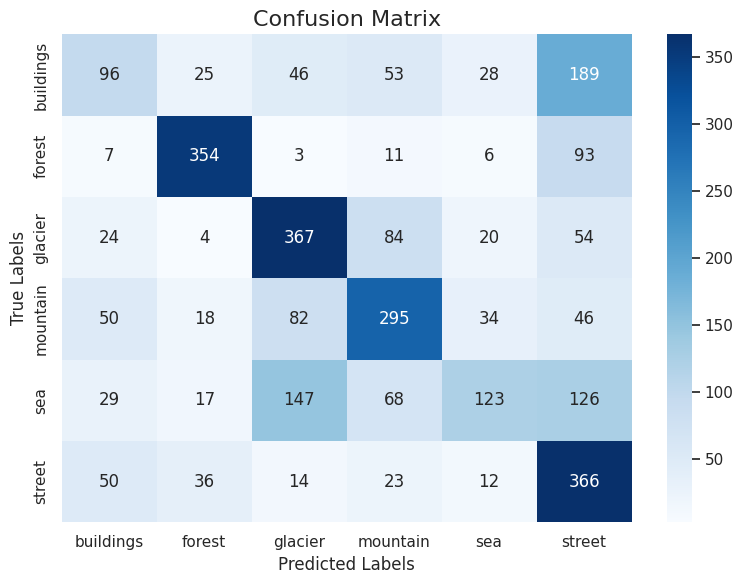

Confusion matrix for Delaunay Triangulation

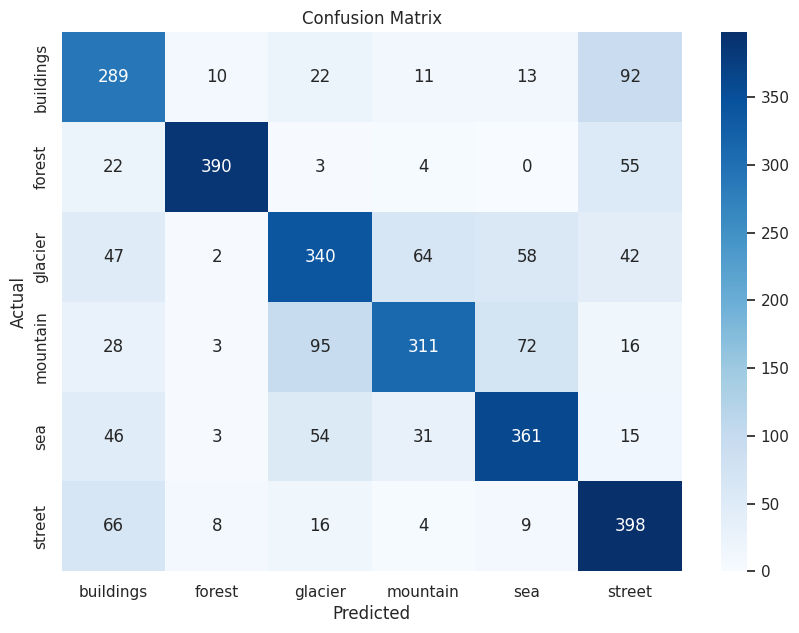

Confusion matrix for SLIC

Strengths and Limitations

Strengths:

• CNN achieved excellent accuracy (98%), demonstrating its effectiveness for image classification tasks.
• GCN with SLIC segmentation showed significant improvement (70%) compared to Delaunay triangulation (53%).
• Data augmentation further improved SLIC-based GCN performance to 73%, highlighting the importance of robust training data.

Limitations

• GCN models lagged in performance compared to CNN, particularly with Delaunay triangulation.
• Computational overhead in constructing graphs for large datasets.
• Limited improvement in GCN performance despite augmentation, indicating a need for more sophisticated feature extraction technique.

Conclusion

The study demonstrates the superior performance of CNNs for the Intel Image Classification dataset. GCNs, while promising, require further optimization and better graph construction techniques to compete with CNNs. SLIC segmentation proved more effective than Delaunay triangulation, with data augmentation providing additional gains.

Future work

• Using Advanced graph construction methods and hierarchical GCN architectures.
• Integration of CNNs and GCNs for hybrid models.
• Optimizing data augmentation strategies tailored for graph-based models
