Abstract

This project focuses on developing a chatbot capable of understanding and responding to
user queries based on their intents. The primary goal was to create an intelligent
conversational agent using Natural Language Processing (NLP) techniques combined with
machine learning for intent recognition and a user-friendly interface for interaction.
The problem addressed was the need for an intuitive and efficient conversational system
capable of handling predefined intents and responding appropriately. The objective was to
train a chatbot that can accurately identify user intent and provide meaningful responses
while maintaining a seamless and interactive experience.
The methodology involved two key components. First, intents were extracted and labeled
from a dataset stored in JSON format. These intents were processed using a TF-IDF
Vectorizer for feature extraction, followed by training a Logistic Regression model for
classification. Second, a user interface was built using Streamlit to enable real-time
interactions with the chatbot. The interface logs user inputs and chatbot responses, ensuring
traceability and analysis of conversations.
The project demonstrated promising results, with the chatbot successfully identifying user
intents and providing contextually relevant responses. The system was evaluated
qualitatively through user interactions, showing its potential for real-world applications.
In conclusion, this project showcased the effective integration of NLP techniques, machine
learning, and interactive web frameworks to build a functional chatbot. Future enhancements
could include expanding the intent dataset, incorporating deep learning for improved
accuracy, and enabling multi-turn conversations to enhance user engagement.

Introduction

1.1 Problem Statement:

In an increasingly digital world, effective communication between users and systems
is essential. Conventional user interfaces often lack the capability to provide
personalized and intuitive responses to user queries. This gap is particularly evident
in automated systems that fail to interpret user intents accurately, leading to poor user
experiences. The problem addressed in this project is to develop an intelligent chatbot
that can understand and respond appropriately to user inputs by leveraging Natural
Language Processing (NLP) and machine learning. This is significant because such
chatbots can reduce dependency on human support, enhance customer engagement,
and streamline information retrieval across industries.

1.2 Motivation:

This project was chosen due to the growing importance of conversational AI in
domains such as customer service, education, healthcare, and e-commerce. Chatbots
equipped with intent recognition and response capabilities can revolutionize how
users interact with technology by making it more accessible and user-friendly. The
potential applications of this project include virtual assistants, customer support
automation, and educational platforms. Its impact is profound as it enables cost
effective, scalable, and efficient solutions while improving user satisfaction.

1.3 Objective:

The primary objectives of this project are:

1. To design and implement a chatbot capable of understanding user intents using
   NLP techniques and machine learning models.

2. To create a user-friendly interface for seamless interactions.

3. To evaluate the chatbot’s accuracy and effectiveness in recognizing intents and
   delivering appropriate responses.

4. To provide a foundational system that can be extended for more complex
   conversational capabilities.

1.4 Scope of the Project:

        The scope of this project includes:

1. Development of a chatbot trained on labeled intents to respond accurately to
   predefined user queries.
2. Integration of the chatbot into a web interface for real-time interactions using
   Streamlit.
3. Logging user interactions for analysis and improvement.
   Limitations:
   • The chatbot is restricted to predefined intents and may fail to respond effectively to
   out-of-scope queries.
   • The use of traditional machine learning (Logistic Regression) may limit adaptability
   compared to deep learning approaches.
   • Multi-turn conversations and context retention are not supported in the current
   implementation.

GitHub Link for Code:
https://github.com/TanayTiwari21/Chatbot-using-NLP.git

Methodology

2.1 System Design

Diagram: Below is a conceptual representation of the proposed solution's system design:

1. Input Interface (Streamlit):

The user interacts with the chatbot through a web-based input interface built using
Streamlit. This interface collects user queries and displays the chatbot’s responses.

2. Preprocessing and Feature Extraction:

o User input is tokenized, cleaned, and processed using the TF-IDF
Vectorizer, which converts textual data into numerical features.
o This step ensures the data is suitable for classification by the machine
learning model.

3. Intent Recognition (Logistic Regression Model):

o The processed input is fed into a Logistic Regression classifier, which
predicts the user’s intent based on the training data.
o The model is trained on labeled patterns extracted from the intents dataset.

4. Response Generation:

o Based on the predicted intent, the system retrieves an appropriate response
from the dataset.
o The response is selected randomly from predefined options associated with
the identified intent to ensure variability.

5. Output Interface:

o The response is displayed on the Streamlit interface, allowing the user to
view the chatbot's reply.

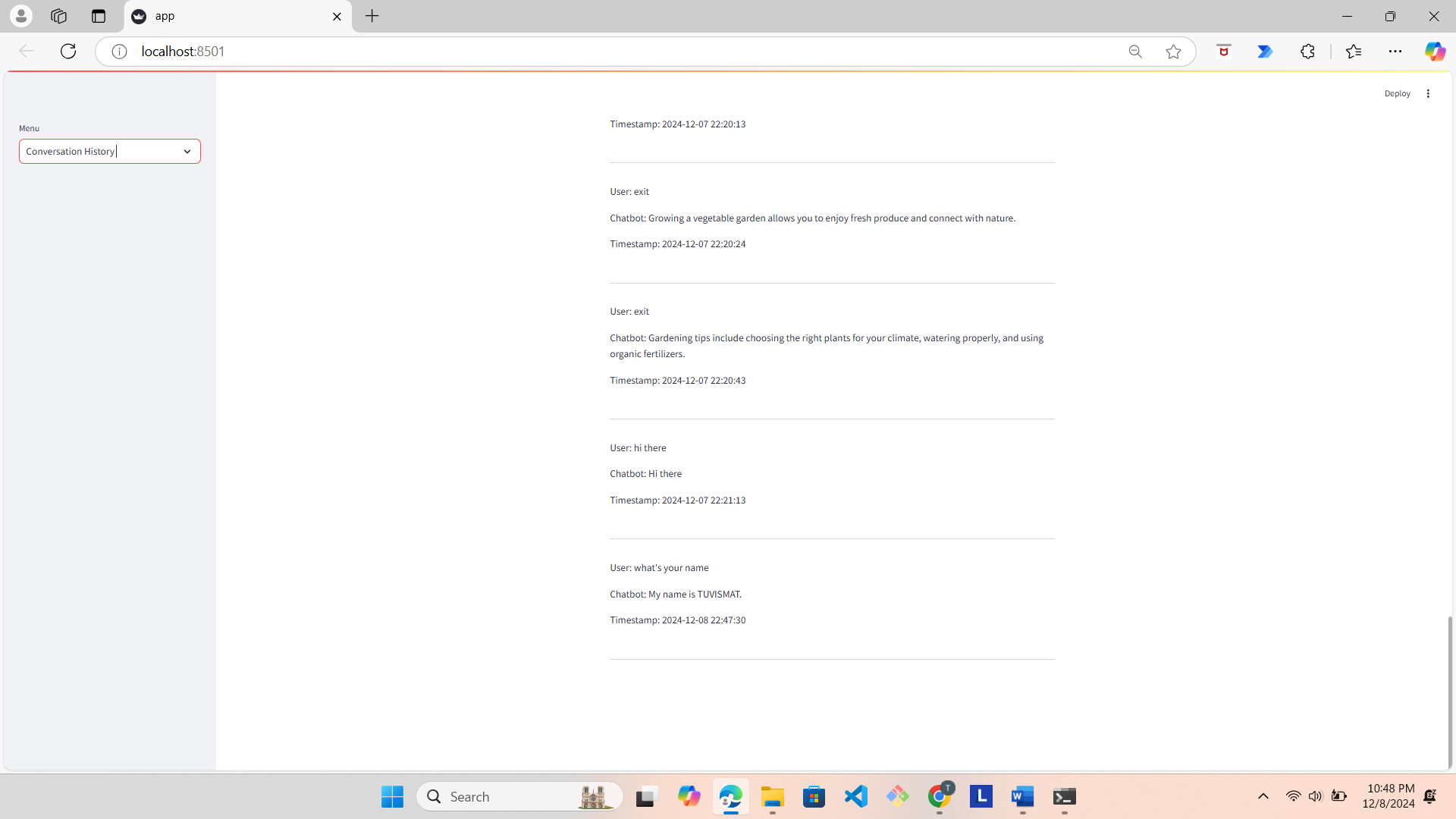

6. Logging and Analysis:

o User inputs and chatbot responses are stored in a log file for future analysis
and debugging.

3.2 Requirement Specification

3.2.1 Hardware Requirements:

• Processor: Intel Core i5 or higher
• RAM: Minimum 8 GB (16 GB recommended for faster processing)
• Storage: 500 MB for project files and datasets
• GPU: Not required (as the project uses traditional machine learning techniques)

3.2.2 Software Requirements:

▪ Programming Language: Python 3.8 or higher
▪ Libraries:
• NLP and Machine Learning: nltk, sklearn, numpy
• Web Interface: streamlit
• File Handling and Logging: csv, os, datetime
▪ Dataset: A JSON file containing labeled intents and patterns for training.
▪ Development Environment: Jupyter Notebook or any Python-compatible IDE.
▪ Other Tools:
• Python package manager (pip) for library installation.
• Text editor for modifying the intents dataset.

Dataset

1. Structure of an Intents Dataset

An intents dataset typically consists of:

Intents (Categories): Labels representing different user requests.
Training Examples (Utterances): Example sentences corresponding to each intent.
Responses (Optional): Predefined chatbot responses for each intent.
A JSON or CSV format is commonly used.

Example (JSON format):
{
"intents": [
{
"tag": "greeting",
"patterns": ["Hello", "Hi", "Hey there", "Good morning"],
"responses": ["Hello!", "Hi there!", "How can I help you?"]
},
{
"tag": "goodbye",
"patterns": ["Bye", "See you", "Goodbye", "Take care"],
"responses": ["Goodbye!", "See you soon!", "Take care!"]
},
{
"tag": "order_status",
"patterns": ["Where is my order?", "Order status", "Track my order"],
"responses": ["Please provide your order ID to track."]
}
]
}

2. Preprocessing Steps for Logistic Regression

Since Logistic Regression works with numerical inputs, the text data needs preprocessing:

Tokenization: Split sentences into words.
Lowercasing: Convert text to lowercase.
Stopword Removal: Remove common words like "the," "is," "in," etc.
Lemmatization: Convert words to their root forms (e.g., "running" → "run").
Vectorization: Convert text into numerical format using:
Bag of Words (BoW)
TF-IDF (Term Frequency-Inverse Document Frequency)
Word Embeddings (e.g., Word2Vec, GloVe)

3. Training Chatbot Using Logistic Regression

Steps to Train the Model
Convert Text to Features:
Use TfidfVectorizer from scikit-learn to transform text data.
Train Logistic Regression Model:
Train a LogisticRegression classifier from sklearn.linear_model.

(#Create the vectorizer and classifier)
vectorizer = TfidfVectorizer(ngram_range=(1, 4))
clf = LogisticRegression(random_state=0, max_iter=10000)
(# Preprocess the data)
tags = []
patterns = []
for intent in intents:
for pattern in intent['patterns']:
tags.append(intent['tag'])
patterns.append(pattern)

(# training the model)
x = vectorizer.fit_transform(patterns)
y = tags
clf.fit(x, y)

def chatbot(input_text):
input_text = vectorizer.transform([input_text])
tag = clf.predict(input_text)[0]
for intent in intents:
if intent['tag'] == tag:
response = random.choice(intent['responses'])
return response

counter = 0

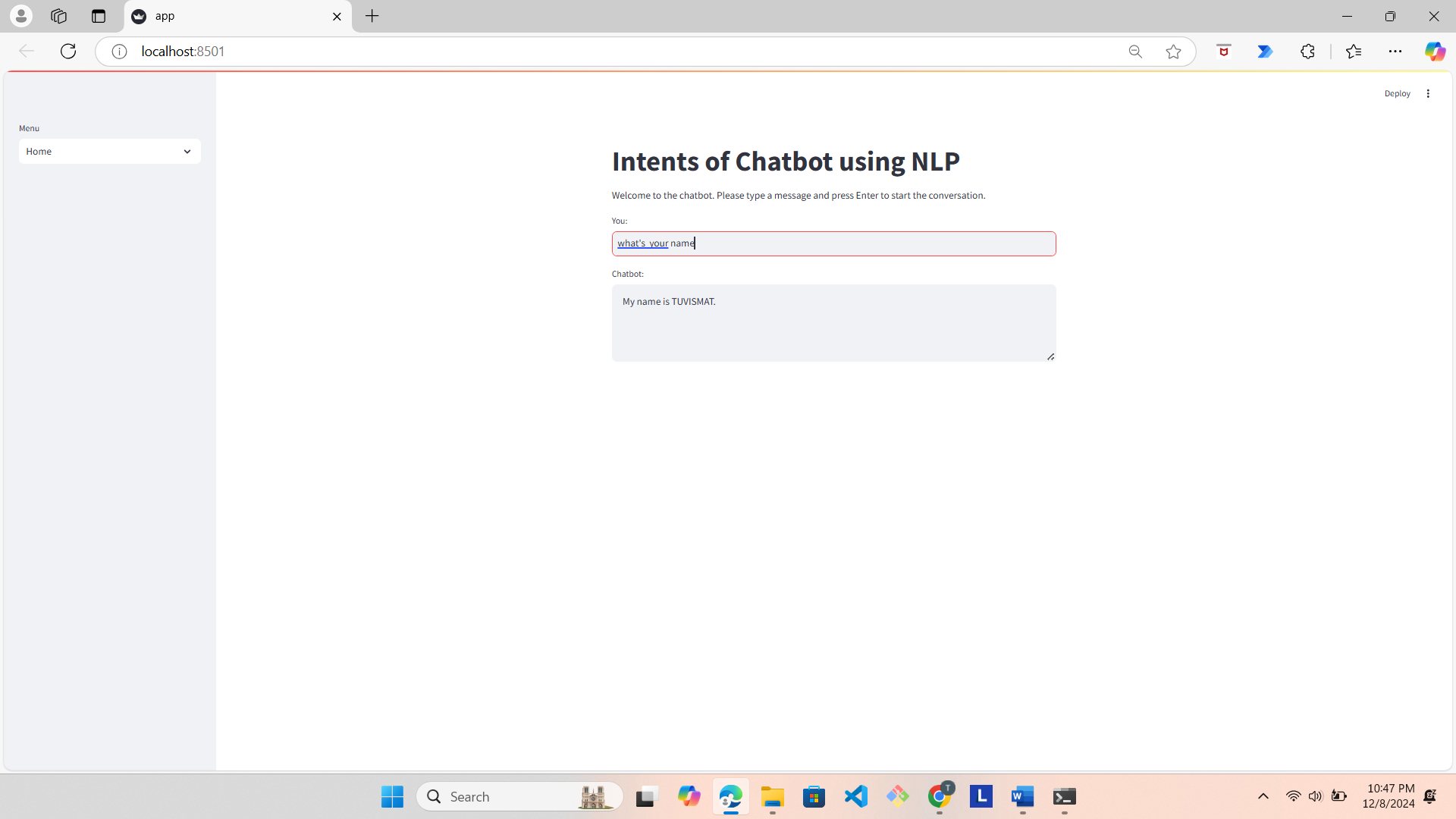

Results

• User Query:
The input field displays the question "what's your name?" entered by the user.
• Chatbot Response:
The chatbot responds with "My name is TUVISMAT," showcasing its ability to
understand the user's query and provide a coherent answer.

Conclusion

This project demonstrated the development of a chatbot that uses machine learning for
intent recognition and a web-based interface for user interaction. By leveraging NLP
techniques like TF-IDF and Logistic Regression, the chatbot efficiently processes user
queries and provides relevant responses, contributing to the growing field of automated
conversational agents.
The key contribution of this project lies in its ability to create a lightweight,
computationally efficient chatbot that can be easily deployed and adapted for various
domains. It paves the way for further research into enhancing chatbot capabilities, such
as context retention and multi-turn dialogues, which could significantly improve their
practical application in customer service, healthcare, and other industries.
Overall, this project provides a solid foundation for future AI-driven conversational
systems, with numerous possibilities for improvement and real-world implementation.
