Abstract

The objective of this project is to predict captions for images using KNN by leveraging image and caption embeddings from the CLIP model and Faiss for efficient nearest neighbor computation.

Introduction

This project implements a K-Nearest Neighbors (KNN) algorithm for image captioning based on the paper A Distributed Representation Based Query Expansion Approach for Image Captioning While modern Vision-Language Models (VLMs) are widely used for image captioning, this project explores an earlier approach using KNN, which still performs surprisingly well.

Methodology

1. Image and Caption Embeddings: Use pre-extracted embeddings from the CLIP model.

2. Find Nearest Neighbors: For each image, find k nearest neighbors using Faiss.

3. Query Vector Calculation: Compute a weighted sum of the captions from the nearest neighbors based on their cosine similarity with the query image.

4. Caption Prediction: The predicted caption is the closest to the query vector from the dataset captions.

5. Evaluation: BLEU score is used to evaluate the accuracy of the predicted captions compared to the ground truth captions.

Experiments

1. Try a few options for k. Record your observations.
2. For a fixed k, try a few options in the Faiss index factory to speed the computation in step 2. Record your observations.

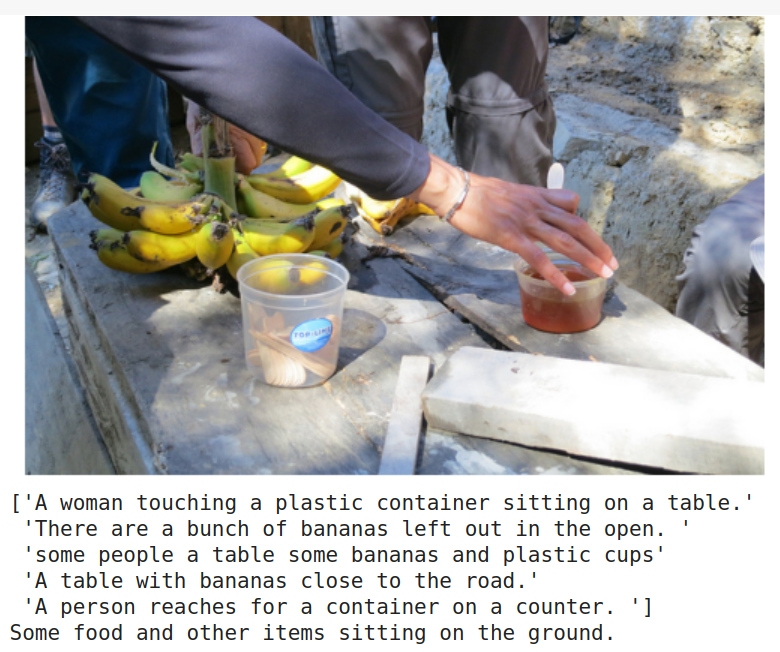

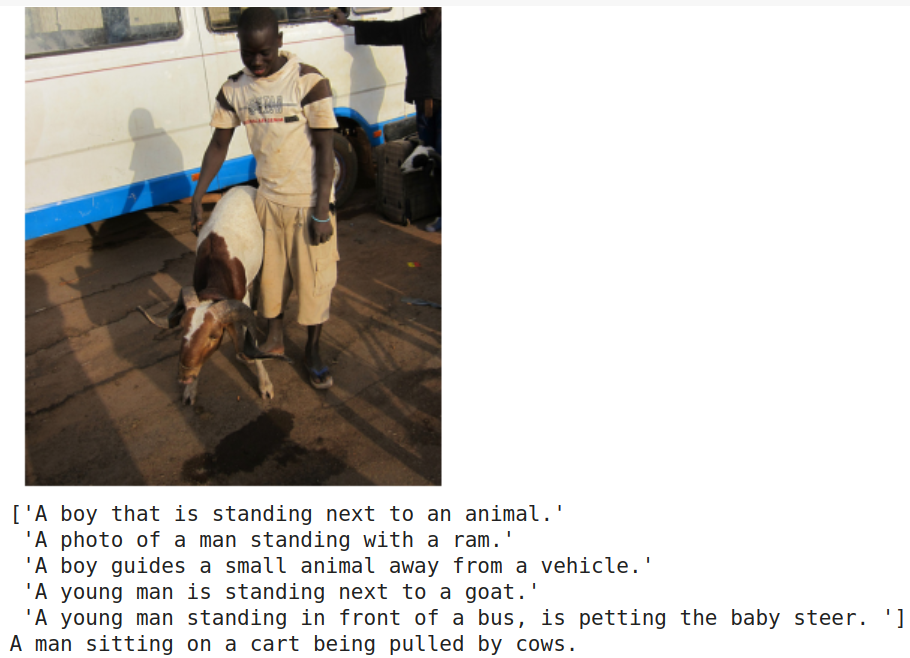

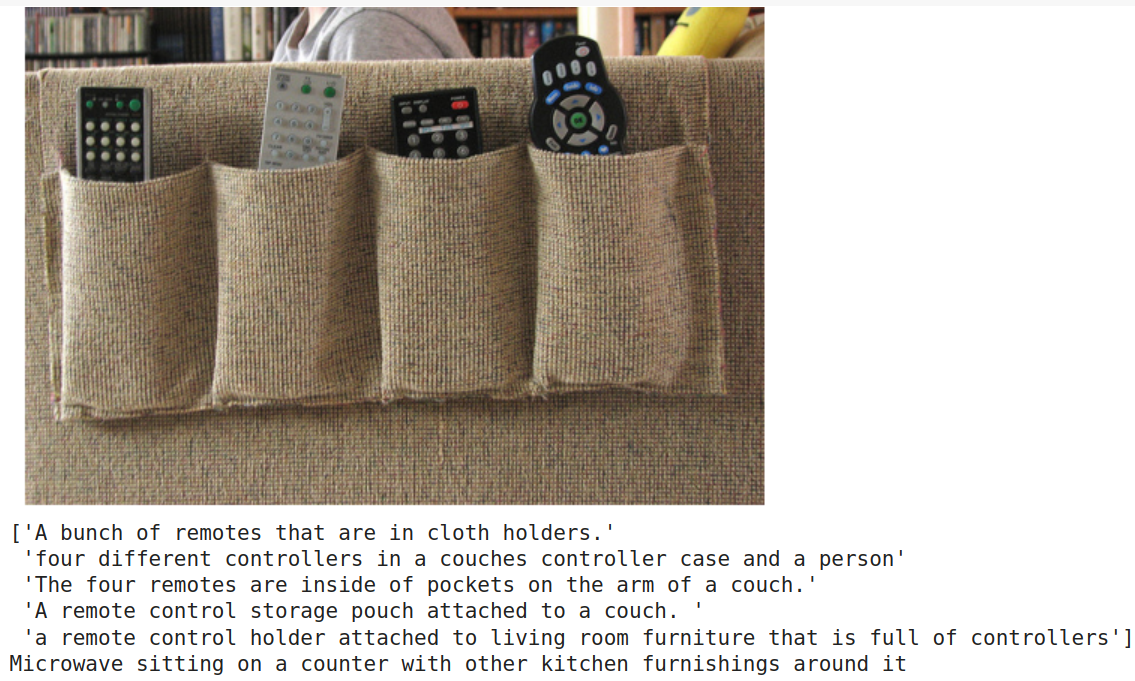

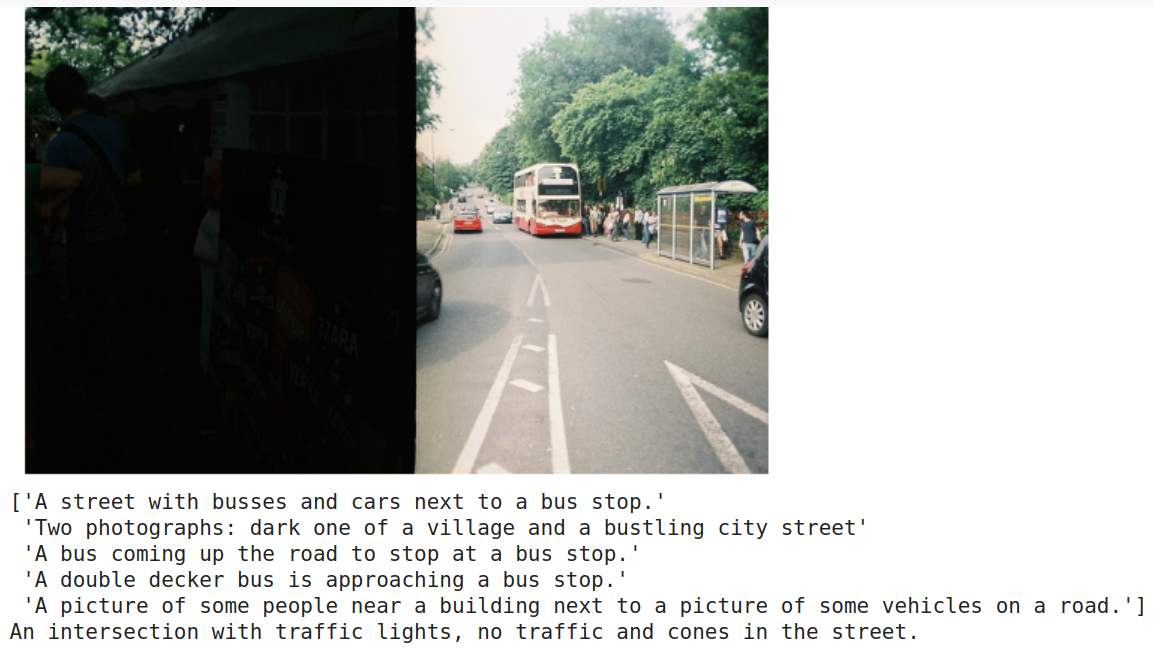

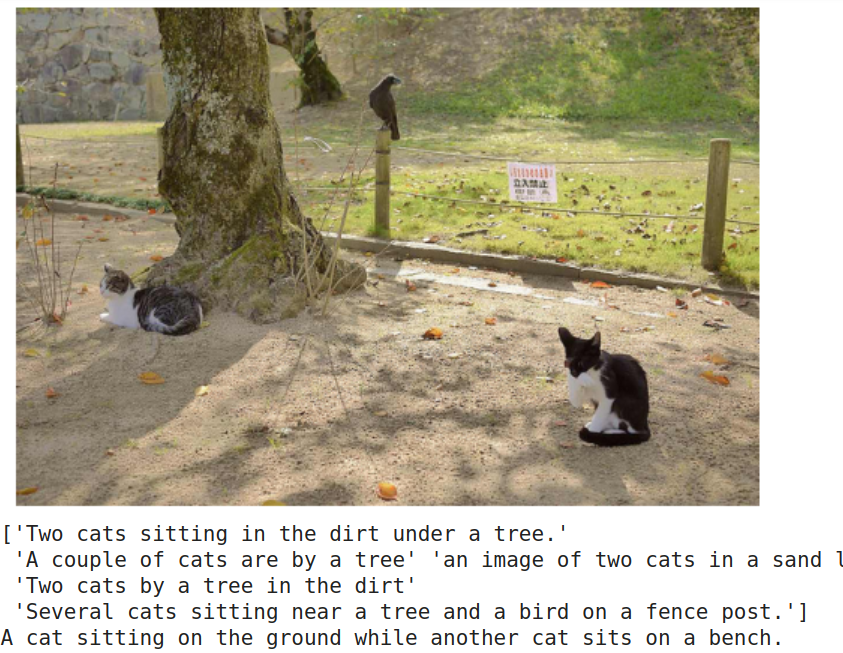

3. Qualitative study: Visualize five images, their ground truth captions and the predicted caption.

Results

Code Snippet

# !gdown 1RwhwntZGZ9AX8XtGIDAcQD3ByTcUiOoO #image embeddings
!gdown 18Z7QuFLJFL18xrxKWdqWgLcAgvGJDWJV

# !gdown 1b-4hU2Kp93r1nxMUGEgs1UbZov0OqFfW #caption embeddings
!gdown 1BBXx3wmO6s4Zjn-E4nIWmcBIpGmyedPM

!wget http://images.cocodataset.org/zips/val2014.zip
!unzip /content/val2014.zip
!wget http://images.cocodataset.org/annotations/annotations_trainval2014.zip
!unzip /content/annotations_trainval2014.zip
!pip install faiss-cpu

import torchvision.datasets as dset
import torchvision.transforms as transforms
from torch.utils.data import DataLoader
import torch
import torch.nn as nn
import torch.nn.functional as F
from nltk.translate import bleu_score
import faiss
import numpy as np

def get_transform():
    transform = transforms.Compose([
        transforms.Resize((224,224)),
        transforms.ToTensor(),  # convert the PIL Image to a tensor
        transforms.Normalize(
            (0.485, 0.456, 0.406),  # normalize image for pre-trained model
            (0.229, 0.224, 0.225),
        )
    ])
    return transform

coco_dset = dset.CocoCaptions(root = '/content/val2014',
                        annFile = '/content/annotations/captions_val2014.json',
                        transform=get_transform())

coco_dset1 = dset.CocoCaptions(root = '/content/val2014',
                        annFile = '/content/annotations/captions_val2014.json')

print('Number of samples: ', len(coco_dset))
img, target = coco_dset[3] # load 4th sample

print("Image Size: ", img.shape)
print(target)

ids = list(sorted(coco_dset.coco.imgs.keys()))
captions = []
for i in range(len(ids)):
    captions.append([ele['caption'] for ele in coco_dset.coco.loadAnns(coco_dset.coco.getAnnIds(ids[i]))][:5]) #5 per image
captions_np = np.array(captions)
print('Captions:', captions_np.shape)

captions_flat = captions_np.flatten().tolist()
print('Total captions:', len(captions_flat))

cap_path = '/content/coco_captions.npy'
caption_embeddings = np.load(cap_path)
print('Caption embeddings',caption_embeddings.shape)

img_path = '/content/coco_imgs.npy'
image_embeddings = np.load(img_path)
print('Image embeddings',image_embeddings.shape)

def accuracy(predict, real):
    '''
    use bleu score as a measurement of accuracy
    :param predict: a list of predicted captions
    :param real: a list of actual descriptions
    :return: bleu accuracy
    '''
    accuracy = 0
    for i, pre in enumerate(predict):
        references = real[i]
        score = bleu_score.sentence_bleu(references, pre)
        accuracy += score
    return accuracy/len(predict)

import random
def nearest_img_indices(i,k):
  sample_image_emb = image_embeddings[i]
  sample_image_cap = captions_np[i]
  if i=="IndexHNSWFlat":
    index = faiss.IndexFlatL2(512,k)
  else:
    index = faiss.IndexFlatL2(512)
  index.add(image_embeddings)
  query = sample_image_emb.reshape(1,-1)
  distances, indices = index.search(query,k+1)
  indices = indices[:,1:]
  indices = indices[0]
  return sample_image_emb,indices,sample_image_cap

def cosine_similarity(u, v):
    dot_product = np.dot(u, v)
    norm_u = np.linalg.norm(u)
    norm_v = np.linalg.norm(v)
    similarity = dot_product / (norm_u * norm_v)
    return similarity

def find_query_vector(indices,k,sample_image_emb):
  query_vector = np.zeros(512)
  # print(indices)

  for i in indices:
    for j in range(5):
      query_vector = query_vector + (cosine_similarity(sample_image_emb, image_embeddings[i])*caption_embeddings[i][j])
  divisor = k*5
  new_query_vector = query_vector / divisor
  return new_query_vector

def find_best_caption(query_vector,indices):
  best_caption = ""
  max_sim = -10
  for i in indices:
    for j in range(5):
      sim = cosine_similarity(query_vector,caption_embeddings[i][j])
      if np.any(sim > max_sim):
        max_sim = sim
        best_caption = captions_np[i][j]
  return best_caption

sample_img_indices = [random.randint(0, len(coco_dset)) for _ in range(1000)]

def accuracy_v2(predict, real):
    lower_n_split = lambda x: x.lower().split()
    accuracy = 0
    for i, pre in enumerate(predict):
        refs = real[i]
        score = bleu_score.sentence_bleu(list(map(lambda ref: lower_n_split(ref), refs)), lower_n_split(pre))
        accuracy += score
    return accuracy/len(predict)

# sample_img_indices=[0,1,2,3,4]

def find_caption(idx,k):
  predicted = []
  real = []
  for val in sample_img_indices:
    sample_image_emb,indices,sample_image_cap = nearest_img_indices(val,k)
    query_vector = find_query_vector(indices,k,sample_image_emb)
    best_caption = find_best_caption(query_vector,indices)
    predicted.append(best_caption)
    real.append(sample_image_cap)
  a = accuracy_v2(predicted, real)
  return a

import matplotlib.pyplot as plt
acc = []
K = [1,2,3,4,5,6,7,8,9,10]
for k in K:
  acc.append(find_caption("IndexFlatL2",k))
print(acc)
plt.plot(K, acc, marker='o')
plt.title('Accuracy vs. k')
plt.xlabel('k')
plt.ylabel('Accuracy')
plt.grid(True)
plt.show()

k = 7
acc1 = find_caption("IndexFlatL2",k)
acc2 = find_caption("IndexFlatIP",k)
acc3 = find_caption("IndexHNSWFlat",k)
print("accuracy for IndexFlatL2", acc1)
print("accuracy for IndexFlatIP", acc2)
print("accuracy for IndexHNSWFlat", acc3)

import matplotlib.pyplot as plt
n = 5
sample_img_indices = [random.randint(0, len(coco_dset)) for _ in range(n)]

def Qualitative(idx,k):
  predicted = []
  real = []
  for val in sample_img_indices:
    sample_image_emb,indices,sample_image_cap = nearest_img_indices(val,k)
    query_vector = find_query_vector(indices,k,sample_image_emb)
    best_caption = find_best_caption(query_vector,indices)
    predicted.append(best_caption)
    real.append(sample_image_cap)
    img, target = coco_dset1[val]
    plt.imshow(img)
    plt.imshow(img)
    plt.axis('off')
    plt.show()
    print(captions_np[val])
    print(best_caption)
  a = accuracy_v2(predicted, real)
  return a

Qualitative("IndexFlatL2",7)
