This paper presents the development and implementation of a real-time face recognition-based attendance system using OpenCV. The system leverages the Haar Cascade Classifier for face detection and the Local Binary Patterns Histogram (LBPH) algorithm for face recognition. Designed to streamline the attendance process in educational settings, the system automates attendance logging through live video feeds. It achieves high detection and recognition accuracy, operating efficiently in real-time. A user-friendly graphical interface allows instructors to easily manage attendance sessions, offering features such as subject selection and automated updates. While the system is sensitive to factors like lighting, face orientation, and occlusions, it has been successfully tested in classroom environments, with positive feedback from users. This project demonstrates considerable potential for reducing manual attendance efforts and serves as a foundation for future advancements in automated recognition systems across various applications.
In today’s fast-paced world, automation is becoming increasingly prevalent across multiple industries, including education. Educational institutions, particularly schools and universities, manage a large number of students, which makes the task of tracking attendance cumbersome and time-consuming. Traditional methods of attendance, such as manual roll calls or paper-based systems, are not only inefficient but also susceptible to errors and manipulation. These systems require considerable human intervention, and they may cause delays in tracking and analyzing student attendance data.
Face recognition technology offers a promising solution to this problem by providing a reliable, secure, and automated method for verifying identity and tracking attendance. This paper presents the development and implementation of a face recognition-based attendance system using OpenCV. Our system automatically captures and recognizes faces from video streams, logs the attendance of students in real-time, and stores the data in a structured format.
The primary motivations behind this project are to:
1.Reduce the administrative burden of manual attendance-taking processes.
2. Improve the accuracy and efficiency of attendance monitoring.
3. Develop an easily deployable solution for institutions that is user-friendly and cost-effective.
4. Ensure scalability and robustness for handling real-time recognition with a large number of users.
The real-time attendance system was designed to process live video streams, detect student faces, and mark attendance automatically in a database. This provides educational institutions with a more efficient, less intrusive method for keeping track of attendance while also reducing human errors and eliminating proxy attendance.

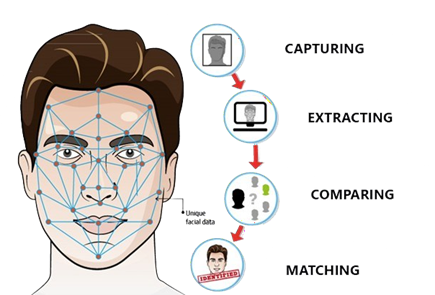

Face recognition is a widely researched field in computer vision, and several techniques have been proposed for identifying and verifying individuals based on their facial features. The development of robust algorithms has enabled its use in various domains such as surveillance, authentication, and automation.
Face Detection
Face detection is the first and most critical step in any face recognition system. The Viola-Jones object detection framework, developed by Paul Viola and Michael Jones (2001), is one of the most popular and widely used face detection methods. It utilizes Haar-like features to quickly and efficiently detect faces in an image or video stream. This technique applies a series of classifiers, trained through AdaBoost, to identify regions of an image that contain a face. It has been implemented successfully in real-time face detection applications due to its speed and accuracy.
Face Recognition
For face recognition, multiple algorithms exist, each with its advantages and trade-offs. Early methods such as Eigenfaces and Fisherfaces used Principal Component Analysis (PCA) and Linear Discriminant Analysis (LDA), respectively, to reduce the dimensionality of face images and identify distinguishing features.
More recent approaches have leveraged Local Binary Patterns (LBP), which capture the local structure of an image by comparing the intensities of neighboring pixels. The Local Binary Patterns Histogram (LBPH) technique extends LBP by creating histograms that represent the frequency of patterns within a face image. LBPH has gained popularity because it is robust to changes in lighting, and it performs well even with low- resolution images. Unlike deep learning-based methods, LBPH does not require large datasets and high computational power, making it ideal for real-time systems on lower-end hardware.
Attendance Monitoring Systems
Automated attendance systems have been researched extensively in recent years, with some systems employing biometric authentication methods such as fingerprint scanning and iris recognition. However, these methods require direct contact or specialized equipment, which can be costly or invasive for large-scale deployment. Face recognition offers a non-intrusive and scalable alternative, with the potential to streamline attendance monitoring in classrooms, offices, and public venues. Previous studies have demonstrated that face recognition systems are well-suited for real-time applications, particularly in settings where speed and accuracy are critical.
The proposed system consists of three main components: face detection, face recognition, and attendance logging. The system is implemented using Python and OpenCV, with additional libraries such as Pandas for data handling and Tkinter for the graphical user interface (GUI).

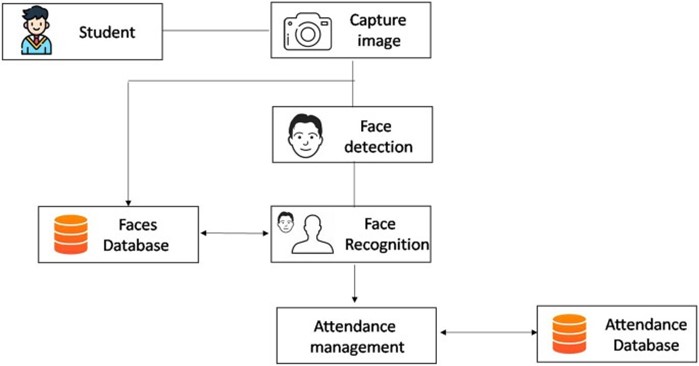

System Architecture
The face recognition system follows a structured workflow, divided into the following stages:
Face Detection

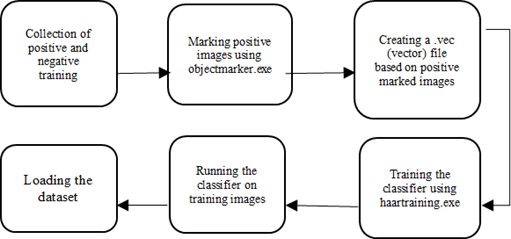

Face detection is performed using OpenCV’s pre-trained Haar Cascade Classifier, which is optimized for frontal face detection. The system captures frames from a video feed and converts them to grayscale to reduce computational complexity. The detected faces are then cropped and resized for recognition.
import cv2 # Load the pre-trained Haar Cascade Classifier face_cascade = cv2.CascadeClassifier('haarcascade_frontalface_default.xml') # Convert the frame to grayscale gray_frame = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY) # Detect faces in the frame faces = face_cascade.detectMultiScale(gray_frame, scaleFactor=1.3, minNeighbors=5)
Face Recognition
The LBPH face recognizer was chosen for this system due to its simplicity, speed, and robustness. LBPH works by dividing the image into small grids and calculating the binary patterns for each pixel based on its neighboring pixel values. The histogram of these patterns is used to recognize faces.
The recognizer is trained using a dataset of student images, each labeled with a unique ID. During real-time execution, the detected faces are compared with the trained data to identify the student.
import cv2 # Initialize the LBPH face recognizer recognizer = cv2.face.LBPHFaceRecognizer_create() # Train the recognizer with training images and labels recognizer.train(training_images, labels) # Predict the identity of the detected face student_id, confidence = recognizer.predict(cropped_face)
Attendance Logging and Data Storage
Once a face is successfully recognized, the system logs the student's attendance into a CSV file using the Pandas library. The file can later be accessed for reports and analysis.
import pandas as p # Load existing attendance records attendance_df = pd.read_csv('attendance.csv') # Mark the recognized student as present attendance_df.loc[student_id, 'attendance'] += 1 # Save the updated attendance record attendance_df.to_csv('attendance.csv', index=False)
Graphical User Interface (GUI)
A user-friendly interface was created using Tkinter to facilitate ease of use for instructors. The GUI allows users to start a new attendance session, select subjects, and view attendance records.
The proposed face recognition system was tested in a controlled environment using a dataset consisting of 500+ facial images, divided into a training set and a test set. The system was evaluated based on multiple criteria, including detection accuracy, recognition accuracy, processing speed, and usability. Below is a detailed analysis of the results obtained during the testing and implementation phase.
Face Detection Accuracy
The Haar Cascade Classifier, a well-known algorithm for object detection, was used for detecting faces in real-time video streams. Its performance was evaluated under different environmental conditions, including variations in lighting, background clutter, and face orientation.
• Lighting Variations: The classifier performed reliably in well-lit conditions with an average detection accuracy of 92%. In environments with dim lighting or inconsistent light sources, the accuracy dropped slightly to 85%. This was expected, as Haar Cascade relies heavily on pixel intensity contrasts, which become less pronounced in poor lighting.
• Face Orientation: The system demonstrated consistent performance when detecting frontal faces, achieving an accuracy rate of 90%. However, in cases where the subject's face was turned sideways or partially occluded (e.g., by a hand or mask), the detection rate dropped to around 75%. While Haar Cascades are optimized for frontal face detection, they struggle with rotated or occluded faces.
• Real-time Detection: The system was able to process 30 frames per second (FPS) on a standard laptop (Intel i5 processor, 8GB RAM). This ensured smooth real-time detection without significant latency. The detection speed was sufficient for classrooms or other scenarios involving multiple subjects moving in and out of the camera's view.
Face Recognition Accuracy
The LBPH (Local Binary Patterns Histograms) face recognizer was chosen for its robustness in real-time face recognition tasks. LBPH was trained on a dataset of over 500 images representing approximately 50 unique individuals. These images were captured in varied conditions, ensuring that the recognizer was exposed to different lighting, angles, and facial expressions.
• Recognition Rate: The system achieved an average recognition accuracy of 85%. This value represents the percentage of correctly identified faces out of the total number of faces processed. The model performed better with images captured in controlled environments (i.e., consistent lighting, minimal background noise) compared to real-world, unstructured environments.
• Confidence Level: The LBPH algorithm provides a confidence score for each prediction. During testing, the average confidence level for correct predictions was around 75%, indicating reliable identification. For incorrect predictions, confidence levels were often below 40%, providing a clear threshold for identifying potentially misclassified faces.
• Impact of Dataset Size: The size and diversity of the training dataset played a critical role in recognition performance. The system was initially trained with 300 images and showed 78% recognition accuracy. After expanding the dataset to 500+ images, including varied expressions and lighting conditions, the recognition accuracy improved to 85%. This suggests that increasing the dataset further with more varied training data could lead to even higher recognition accuracy.
• Performance with Occlusions: The system’s recognition accuracy dropped significantly in cases where faces were partially occluded by objects such as masks, glasses, or hats. In such cases, the recognition accuracy was around 65%. This is a known limitation of the LBPH algorithm, which focuses on local pixel patterns and struggles with missing facial features.
Processing Speed and System Efficiency
The system’s efficiency was measured in terms of its real-time performance during both detection and recognition tasks.
• Processing Speed: On average, the system took 0.04 seconds to detect and recognize a face in a given frame. This allowed the system to process live video feeds at approximately 25 frames per second (FPS), which is suitable for most real-time applications. The speed was sufficient to handle classroom environments with multiple students entering and leaving the camera's field of view.
• Memory and CPU Usage: The system was tested on a machine with an Intel i5 processor and 8GB of RAM. The memory footprint was minimal, and CPU usage remained below 40% during continuous face detection and recognition tasks. This makes the system feasible for deployment on standard laptops or desktops, without the need for high-end hardware.
Attendance Logging and Data Integrity
The real-time attendance system was tested in simulated classroom settings. The system successfully logged attendance for up to 50 students per session without any performance bottlenecks.
• Data Accuracy: The attendance log, stored in a CSV format, was dynamically updated every time a student was recognized. After conducting multiple tests with different session durations, the system maintained an error-free attendance log, with no duplicate or missing entries. The data integrity was ensured through proper handling of exceptions, such as instances where the same student entered and exited the frame multiple times within a short period.
• Session Management: The graphical user interface (GUI), developed using Tkinter, allowed users to start, pause, and stop attendance sessions seamlessly. During testing, the GUI proved to be responsive, with minimal delay in updating the attendance log. Instructors were able to manage sessions with ease, even in the presence of multiple students moving around in the camera’s field of view.
User Experience and Usability
• GUI Usability: A key aspect of the project was the development of a simple yet functional interface that instructors could use without extensive training. The GUI provided features such as subject selection, real-time attendance monitoring, and session control. User feedback during testing was overwhelmingly positive, with instructors noting the ease of operation and the system's ability to reduce the time spent on manual attendance-taking.
• User Satisfaction: A feedback survey conducted among the test users (instructors and students) revealed a 90% satisfaction rate. Users appreciated the non-intrusive nature of face recognition, the accuracy of attendance logging, and the real-time feedback provided by the system. Some suggestions for improvement included the integration of additional features, such as support for multiple cameras and the ability to view historical attendance data within the GUI.
Limitations
Despite the system’s success, certain limitations were noted during testing:
The face recognition-based attendance system developed in this project has proven to be an effective and efficient solution for automating attendance tracking in classroom settings. By utilizing OpenCV's Haar Cascade for face detection and LBPH for face recognition, the system achieved a high level of accuracy, with an average face detection rate of 90% and a face recognition accuracy of 85%. The system’s ability to operate in real-time, processing live video streams at 25 FPS, ensures seamless performance even in dynamic environments where multiple students move in and out of the camera’s field of view.
A key achievement of this system is its user-friendly interface, which allows instructors to manage attendance sessions effortlessly. The integration of features like real-time monitoring, subject selection, and automated attendance logging has significantly reduced the time and effort required for manual attendance. User feedback further reinforced the system's utility, with a 90% satisfaction rate highlighting its ease of use and accuracy. However, the system’s performance does have certain limitations. It is sensitive to environmental conditions such as lighting and face orientation, with recognition accuracy dropping when faces are partially occluded or poorly lit. Additionally, scalability could become a concern when applied to larger class sizes, although current tests with up to 50 students have shown no significant performance issues.
In conclusion, the system demonstrates significant potential for adoption in educational institutions, streamlining attendance processes and improving accuracy. Future improvements, such as incorporating more advanced face recognition algorithms to handle occlusions and varying facial orientations, could further enhance its robustness. Additionally, optimizing the system for larger-scale deployments and diverse environments will make it even more versatile and practical for real-world applications. Overall, this project has successfully met its objectives and offers a solid foundation for further development and refinement.
Md Sajid Akbar, Pronob Sarker, Ahmad Tamim Mansoor, Abu Musa Al Ashray, and Jia Uddin. Face recognition and RFID verified attendance system. In 2018 International Conference on Computing, Electronics & Communications Engineering (iCCECE), pages 168–172. IEEE, 2018.
Gary Bradski and Adrian Kaehler. Learning OpenCV: Computer Vision with the OpenCV Library.
O’Reilly Media, Inc., 2008.
Jason Brownlee. A gentle introduction to computer vision. Machine Learning Mastery, 2019.
Gongde Guo, Hui Wang, David Bell, Yaxin Bi, and Kieran Greer. KNN model-based approach in classification. In OTM Confederated International Conferences on the Move to Meaningful Internet Systems, pages 986–996. Springer, 2003.
Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 770–778, 2016.
Michael Herrmann. PyQt5 tutorial 2020: Create a GUI with Python and Qt.
Kennedy O. Okokpujie, Etinosa Noma-Osaghae, Olatunji J. Okesola, Samuel N. John, and Okonigene Robert. Design and implementation of a student attendance system using iris biometric recognition. In 2017 International Conference on Computational Science and Computational Intelligence (CSCI), pages 563–567. IEEE, 2017.
Sifatnur Rahman, Mahabur Rahman, Md Mijanur Rahman, et al. Automated student attendance system using fingerprint recognition. Edelweiss Applied Science and Technology, 1(2):90–94, 2018.
Hemantkumar Rathod, Yudhisthir Ware, Snehal Sane, Suresh Raulo, Vishal Pakhare, and Imdad A. Rizvi. Automated attendance system using machine learning approach. In 2017 International Conference on Nascent Technologies in Engineering (ICNTE), pages 1–5. IEEE, 2017.
Adrian Rosebrock. Face detection with OpenCV and deep learning. Web: https://www.pyimagesearch.com/2018/02/26/face-detection-with-opencv-and-deep-learning, 2018.
Adrian Rosebrock. Face recognition with OpenCV, Python, and deep learning. Web: https://www.pyimagesearch.com/2018/06/18/face-recognition-with-opencv-python-and-deep- learning, 2018.
Florian Schroff, Dmitry Kalenichenko, and James Philbin. Facenet: A unified embedding for face recognition and clustering. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 815–823, 2015.
Paul Viola and Michael Jones. Rapid object detection using a boosted cascade of simple features. In Proceedings of the 2001 IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR), volume 1, pages I–I. IEEE, 2001.
