Abstract

This project showcases the implementation of two different use cases which combine computer vision (CV) and natural language processing (NLP) tasks to create a responsive AI agent. The agent utilises Langchain Agents along with OpenAI's GPT-3.5 Turbo model to suggest items of clothing based on text and image inputs.

Methodology

There are 2 primary use cases:

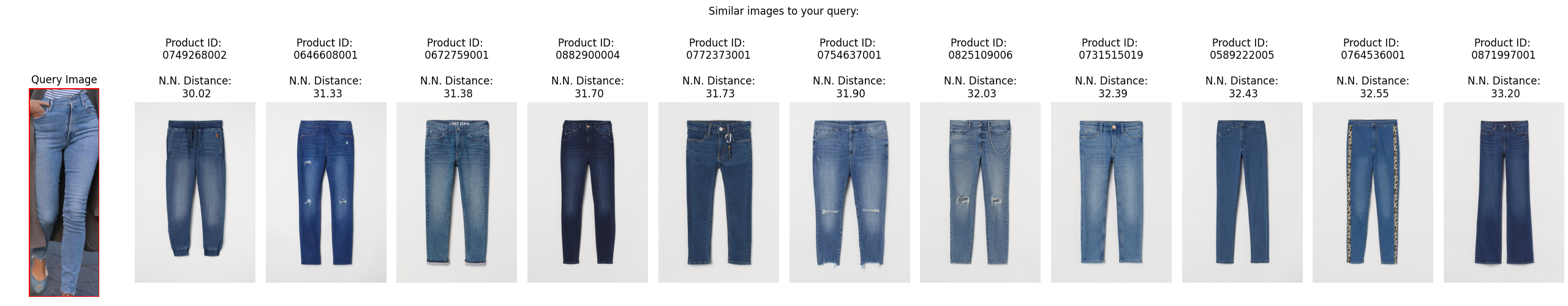

Use Case 1: Find Garments Based on Text + Image

Scenario: A user provides a chat message and an example image of someone wearing denim trousers. The agent suggests similar denim trousers.

Agentic Process:

• Parse the user message using GPT-3.5.
• Use object detection to identify clothing items in the provided image.
• Crop and save the image of the specified item (trousers).
• Perform a vector similarity search against the FAISS database.
• Return the product IDs of the most similar items.

Custom LangChain Agent Tools Used:

• Object detection tool - fashion object pretrained weights from HuggingFace
• Image cropping and saving tool
• Vector similarity search and image plot tool

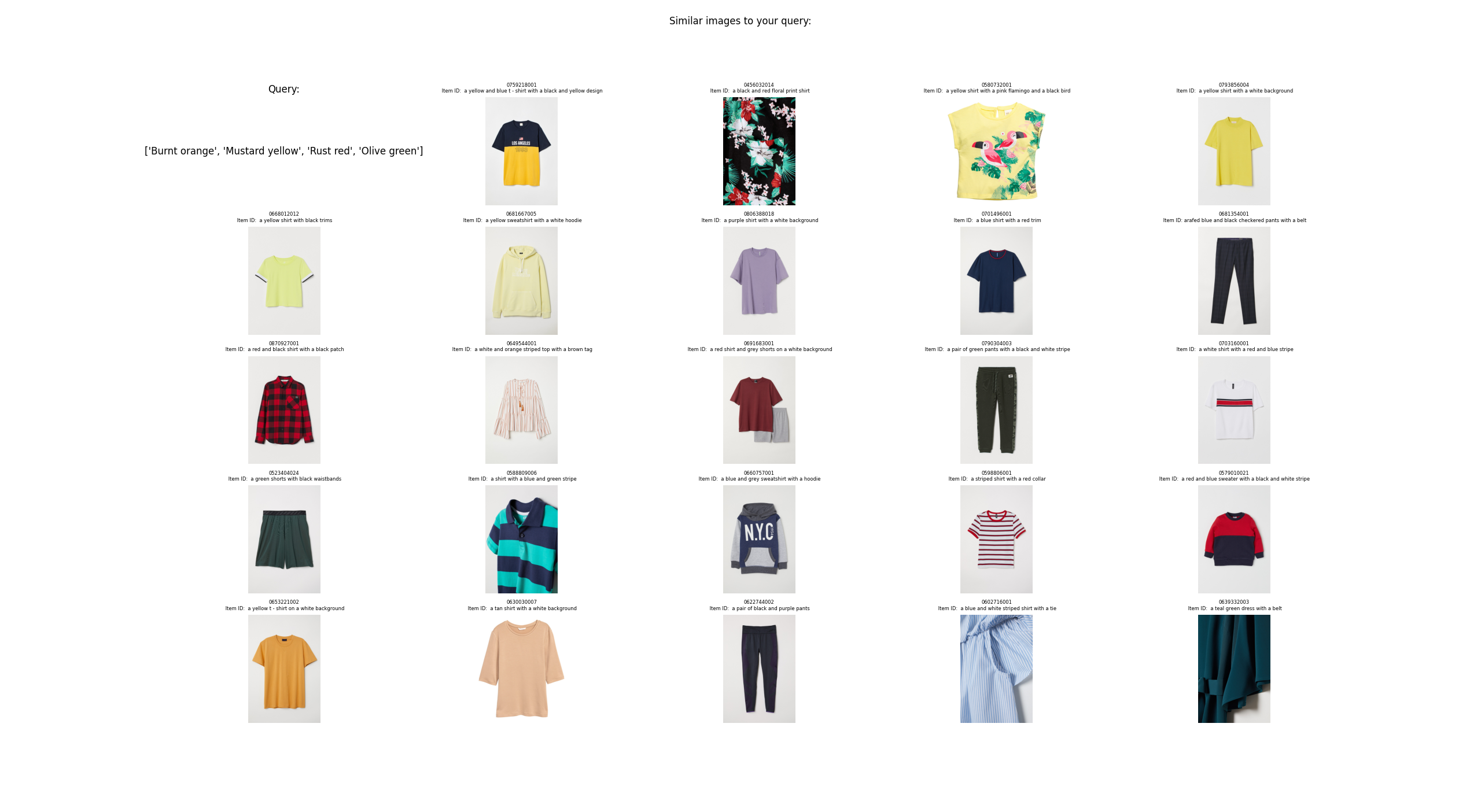

Use Case 2: Suggest Complementary Garments Based on Text + Image

Scenario: A user provides a chat message and an image of a red jacket, asking for items that would go well with it in autumn colours.

Agentic Process:

• Parse the user message using GPT-3.5.
• Generate a caption for the provided image.
  Extract desired colours from the user message.
• Perform a similarity search for items with complementary colours, excluding the category of the provided item.
• Return the product IDs from various categories with the specified colours.

Custom LangChain Agent Tools Used:

• Image captioning tool
• Colour extraction from text tool
  Image and text vector similarity search tools
• CSV referencing tool

Results

Workflow

1. Image Processing:

• Preprocess the images to create vector representations.

2. Message Parsing:

• Utilise GPT-3.5 in chat mode to understand user queries.
• Decide on the appropriate application (similarity search or complementary colour search).

3. Vector Similarity Search:

• Perform searches using FAISS for efficient retrieval of similar items.
• Filter results based on the user's specifications.

4. Results:

• Visualise results using Matplotlib.
• Return product IDs for similar or complementary items.

Project GitHub repo:

https://github.com/MRK132/Agentic_CV_and_NLP_with_Langchain_Agents
