Solving Rubik's Cube with Computer Vision and Kociemba Algorithm

This project combines computer vision and algorithmic problem solving to tackle the classic Rubik's Cube puzzle. With the help of OpenCV for real-time color detection and Kociemba's algorithm for efficient cube-solving, the program can interpret a physical cube and provide optimized solution steps.

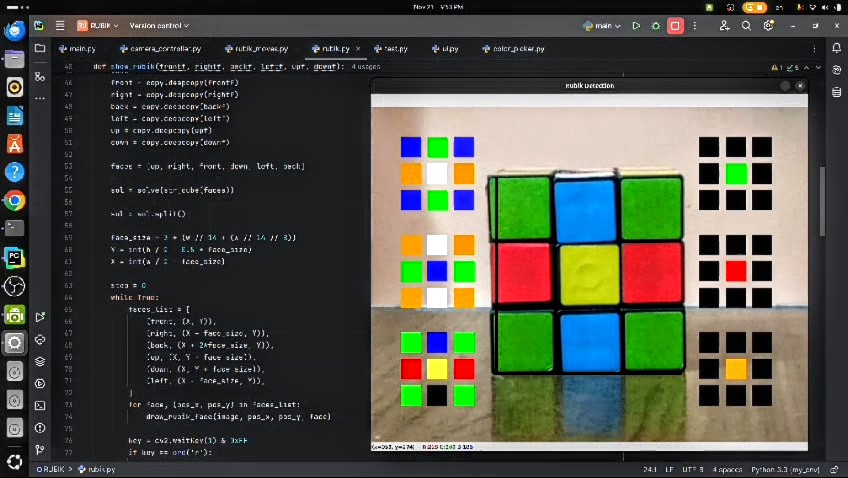

Project Demo

Project Highlights:

•Real-Time Color Detection: Utilizes OpenCV in Python to detect cube face colors from a live camera feed.

import numpy as np

COLOR_RANGES = {
    'orange': ((180, 95, 0), (240, 150, 130)),
    'yellow': ((145, 180, 0), (200, 230, 50)),
    'red': ((185, 26, 30), (255, 100, 130)),
    'green': ((0, 139, 0), (70, 180, 70)),
    'blue': ((0, 125, 200), (10, 160, 255)),
    'white': ((140, 195, 210), (255, 255, 255)),
}

def color_in_range(r, g, b, low, high):
    return low[0] <= r <= high[0] and low[1] <= g <= high[1] and low[2] <= b <= high[2]

def detect_color_name(r, g, b):
    for color_name, (low, high) in COLOR_RANGES.items():
        if color_in_range(r, g, b, low, high):
            return color_name
    return 'unknown'

def get_point_color(frame, x, y):
    b, g, r = frame[y, x]
    return detect_color_name(r, g, b)

def pick_color(frame, start_x, start_y, region_size=10):
    points = [
        (start_x + 25, start_y + 25),
        (start_x + region_size - 25, start_y + 25),
        (start_x + region_size - 25, start_y + region_size - 25),
        (start_x + 25, start_y + region_size - 25),
        (start_x + region_size // 2, start_y + region_size // 2),
    ]

    color_names = [get_point_color(frame, x, y) for x, y in points]

    most_frequent_color = max(set(color_names), key=color_names.count)
    return most_frequent_color

•Optimized Cube Solving: Implements Kociemba's two-phase algorithm to generate an efficient sequence of moves for solving the cube.

•2D Cube Representation: Displays a visual representation of the cube and its solution steps for easy understanding.

            37 38 39
            40 41 42
            43 44 45
  28 29 30   1  2  3   10 11 12   19 20 21
  31 32 33   4  5  6   13 14 15   22 23 24
  34 35 36   7  8  9   16 17 18   25 26 27
            46 47 48
            49 50 51
            52 53 54

    U
 L  F  R  B
    D

•Dynamic Movement Handling in C: Manages cube rotations and movements with an efficient tree-like structure using C programming.

//part of movements.c
#include <stdio.h>

void flip(char vec[3][3])
{
    for (int i = 0; i < 3; ++i)
    {
        char temp = vec[i][0];
        vec[i][0] = vec[i][2];
        vec[i][2] = temp;
    }
}

void transpose(char vec[3][3])
{
    for (int i = 0; i < 3; ++i)
    {
        for (int j = i + 1; j < 3; ++j)
        {
            char temp = vec[i][j];
            vec[i][j] = vec[j][i];
            vec[j][i] = temp;
        }
    }
}

void F(char frontf[3][3],
       char upf[3][3],
       char rightf[3][3],
       char downf[3][3],
       char leftf[3][3])
{
    transpose(frontf);
    flip(frontf);
    char tmp[3];
    tmp[0] = upf[2][0];
    tmp[1] = upf[2][1];
    tmp[2] = upf[2][2];

    upf[2][0] = leftf[2][2];
    upf[2][1] = leftf[1][2];
    upf[2][2] = leftf[0][2];

    leftf[0][2] = downf[0][0];
    leftf[1][2] = downf[0][1];
    leftf[2][2] = downf[0][2];

    downf[0][0] = rightf[2][0];
    downf[0][1] = rightf[1][0];
    downf[0][2] = rightf[0][0];

    rightf[0][0] = tmp[0];
    rightf[1][0] = tmp[1];
    rightf[2][0] = tmp[2];
}

Visit project repository for full scripts
