LED Control using Hand Gesture

Controlled LED lights using hand gesture, Utilizing Tensorflow, Mediapipe, and Arduino.

Abstract

In the realm of technology-driven projects, this paper focuses on the development of a hand gesture-based LED control system using a Convolutional Neural Network (CNN) model implemented with TensorFlow. The project aims to create an intuitive interface for controlling LED lights through simple hand gestures, specifically recognizing two gestures: a fist (labelled as 'no') and an open palm (labelled as 'yes').
In conclusion, the hand gesture-based LED control system developed in this project offers a glimpse into the future of interactive and intelligent systems, paving the way for more advanced and user-centric applications in various fields.

Features

1. Real-time hand gesture recognition
2. Control LEDs using predefined gestures
3. Easy setup with Arduino and Python
4. Scalable for more complex projects

Prerequisites

Arduino board
LED lights
Python 3.x
Tensorflow
Mediapipe
OpenCV
PyFirmata

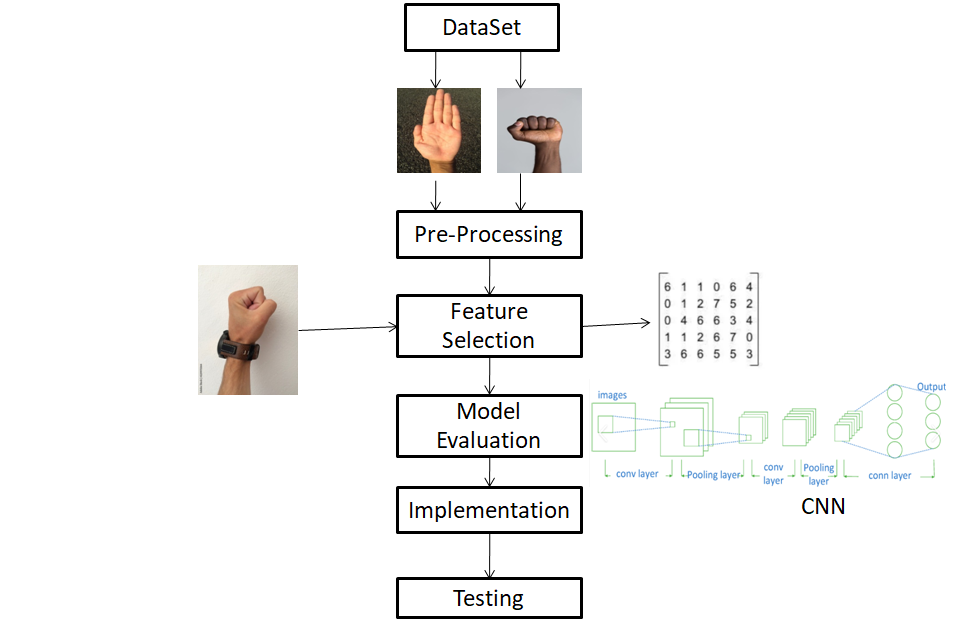

Step by step Process

1) Data Collection

Use OpenCV to collect images for training your model.

# dir = 'HandGesture'
filepaths = []
labels = []

folds = os.listdir(dir)
for fold in folds:
    foldpath = os.path.join(dir, fold)
    filelist = os.listdir(foldpath)
    for file in filelist:
        fpath = os.path.join(foldpath, file)
        filepaths.append(fpath)
        labels.append(fold)

Fseries = pd.Series(filepaths, name= 'Gesture')
Lseries = pd.Series(labels, name='Labels')
df = pd.concat([Fseries, Lseries], axis= 1)

mp_hands = mp.solutions.hands
hands = mp_hands.Hands(static_image_mode=True, max_num_hands=1, min_detection_confidence=0.5)
data = []

2) Preprocess data

Prepare the dataset for training.

# mp_hands = mp.solutions.hands
hands = mp_hands.Hands(static_image_mode=True, max_num_hands=1, min_detection_confidence=0.5)
data = []

def preprocess_landmarks(landmarks):
    landmarks = np.array([[lm.x, lm.y, lm.z] for lm in landmarks]).flatten()
    landmarks = (landmarks - np.mean(landmarks)) / np.std(landmarks)
    return landmarks

3) Build the CNN Model

Create and train a neural network for gesture classification.

# model = Sequential([
    Dense(128, activation='relu', input_shape=(63,)),
    Dense(64, activation='relu'),
    Dense(32, activation='relu'),
    Dense(2, activation='softmax')
])

4) Train the Model

Train the model using your preprocessed dataset.

# history = model.fit(X_train, y_train, epochs=30, batch_size=32, validation_data=(X_val, y_val))

5) Real-Time Gesture Recognition

Implement a real-time recognition system using Mediapipe.

# while cap.isOpened():
    ret, frame = cap.read()

    if not ret:
        continue

    frame_rgb = cv2.cvtColor(frame, cv2.COLOR_BGR2RGB)
    results = hands.process(frame_rgb)

    if results.multi_hand_landmarks:
        for hand_landmarks in results.multi_hand_landmarks:
            # Draw landmarks on the frame
            mp_drawing.draw_landmarks(frame, hand_landmarks, mp_hands.HAND_CONNECTIONS)

            # Preprocess landmarks and predict gesture
            preprocessed_landmarks = preprocess_landmarks(hand_landmarks.landmark)
            prediction = model.predict(preprocessed_landmarks)
            predicted_label = np.argmax(prediction)

            if predicted_label == 0:  # Fist gesture
                gesture = "fist"
                led_state = 1  # Turn on LED
            elif predicted_label == 1:  # Palm gesture
                gesture = "palm"
                led_state = 0  # Turn off LED

            # Set LED state on Arduino
            board.digital[led_pin].write(led_state)

            # Display gesture on frame
            cv2.putText(frame, f"Gesture: {gesture}", (10, 30), cv2.FONT_HERSHEY_SIMPLEX, 1, (23, 25, 0), 2)

    # Display the frame
    cv2.imshow('Hand Recognition', frame)

    if cv2.waitKey(1) & 0xFF == ord('q'):  # Quit on 'q'
        break

Conclusion

The LED Control Using Hand Gesture project demonstrates an innovative application of computer vision and machine learning techniques for implementing gesture-based control systems. The gesture-based LED control system is a step towards realizing more interactive and intelligent systems, paving the way for future advancements in human-computer interaction.
